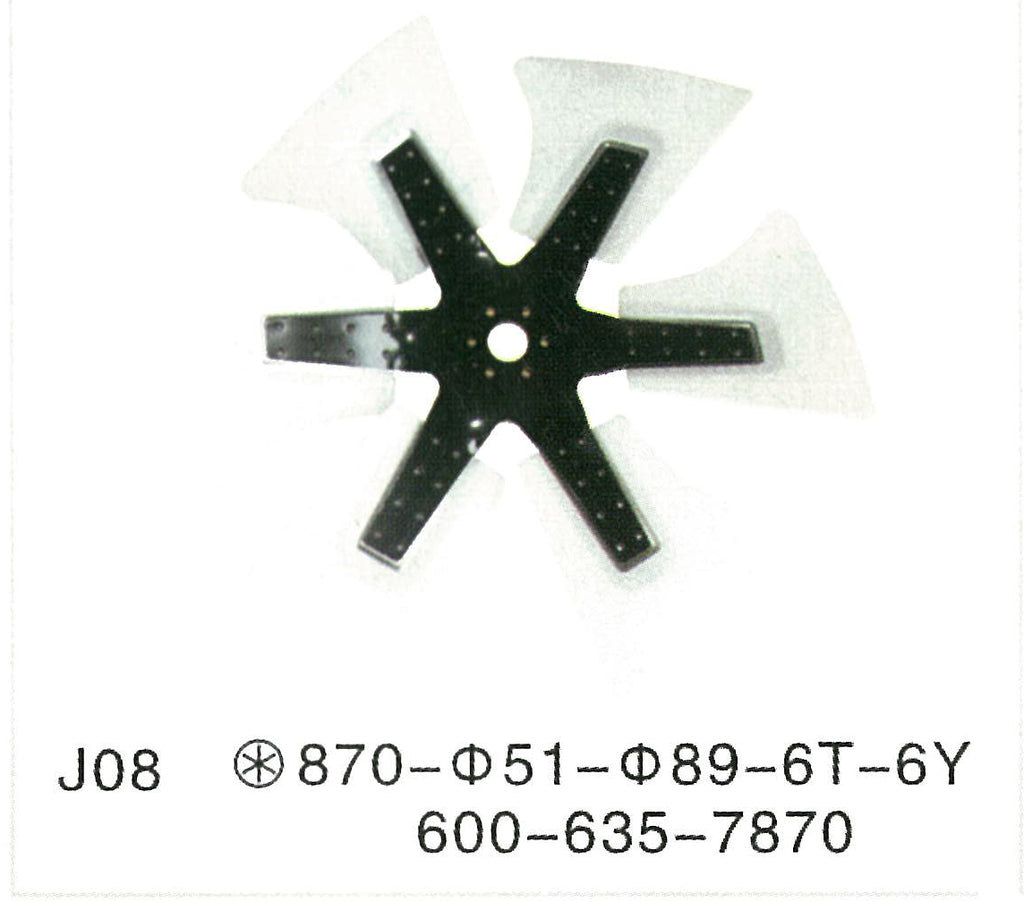

LC75S00003P1 FAN Kobelco parts SK485-8, SK350-9, SK485LC-9, SK350-8, SK485-9 FAN
39 2 90680-8200A
38 1 13694-1180A
36 6 ZN18F10008 NUT M10x1.25mm
34 2 96440-2835A
33 1 98542-8101A
32 1 92400-8087A
31 1 79904-1570A
30 1 76589-4090A LABEL
29 1 HX81X15110DX TUBE
28 2 PY01P01043D2 CLIP Wire Ties -- 160mm Long
27 3 ZW16P10000 WASHER ID 10.5 x OD 21 x Th 2.0mm
26 8 ZW16H18000 WASHER ID 19 x OD 36 x Th 4.5mm
25 1 ZS18C10040 SCREW M10x1.50x40mm
24 2 HS18C10140G1 SCREW M10x1.50x140mm
23 4 ZS18C18150 CAP Screw -- M18x2.50x150mm
22 16 ZM73C12030 BOLT M12x1.75x30mm (Incls. Washer)
21 2 ZM73C10035 BOLT M10x1.50x35mm (Incls. Washer)
20 1 ZM22C10065 BOLT M10x1.50x65mm (Incls. Washer & Lockwasher)
19 4 ZN18C18015 NUT M18x2.5mm
18 1 ZC46X19011 CLIP Clamp, Single Line -- ID 19.1 x 42mm Long
17 1 YN02P01125P1 CLAMP
16 2 YN02P01076P1 BUSHING
15 4 YN02P01088P1 PLATE
14 4 LC02P01049P1 MOUNTING PARTS RUBBER
13 4 LC02P01045P1 MOUNTING PARTS RUBBER
12 4 LC02P01046P1 BRACKET
11 1 YN02P01133P1 BRACKET
10 1 90023-6445A
9 1 44408-2160A
8 1 44408-2150A
7 1 44408-2170A
6 2 90191-2108C
5 4 96591-2111B
3 1 97392-5106A
2 1 97392-5105A
1 1 15600-4110C OIL
NO -- VH ENGINE INSTALLATION, LC02P00026F1
1 LC02P00040F1 ENGINE ASSY HINO Motors (JO8ETM-EADA), Used After Date 11/26/2007
NA LC02P00036F1 ENGINE HINO Motors (JO8E-TI), Used from Date 02/26/2007 - 11/26/2007
NA LC02P00033F1 ENGINE HINO Motors (JO8E-TI), Used From Date 01/20/2006 - 02/26/2007
Engine Installation, LC02P00034F1
35 1 LC75S00003P1 FAN
