EXCAVATOR 320E 320E L 320E LN 320E LRR 320E RR 323E L 324D 324D FM 324D FM LL 324D L 324D LN 324E 324E L 324E LN 325D 325D FM 325D FM LL 325D L 325D MH 326D L 328D LCR 329D 329D L 329D LN 329E 329E L 329E LN M325D L MH M325D MH
MOBILE HYD POWER UNIT 324D LN 325D 325D L 329D L 329E Caterpillar Fan

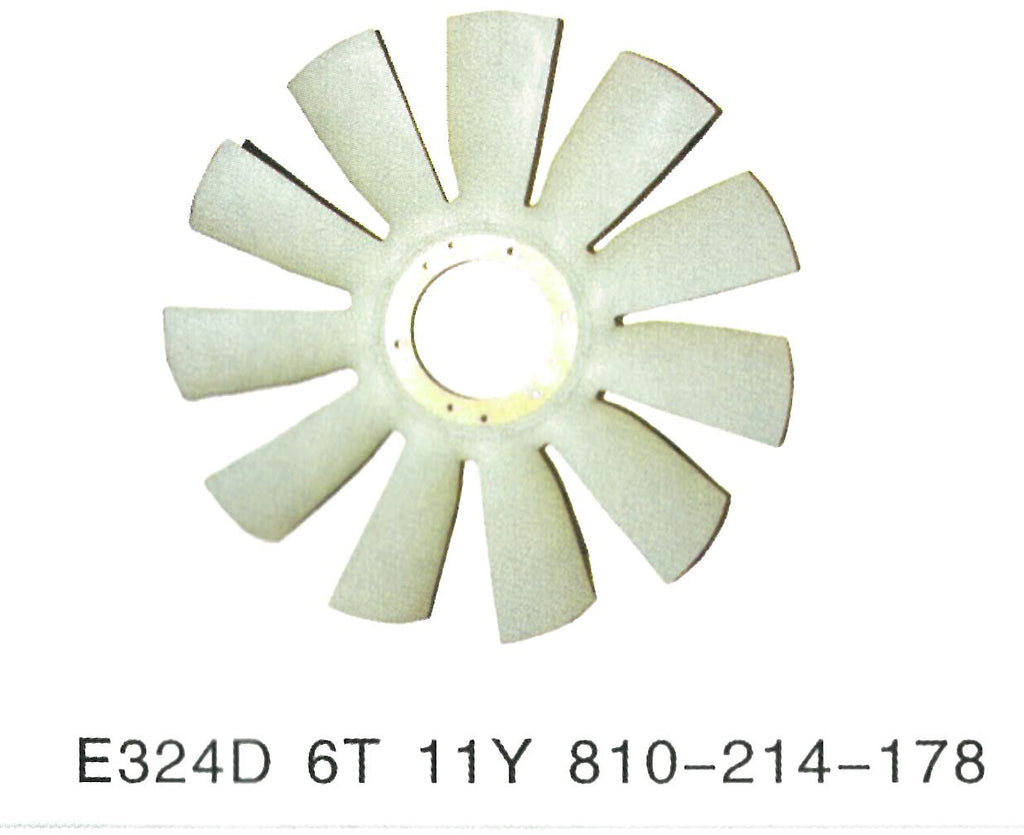

230-2892 2302892 CAT C7.1 C7 ENGINE Fan Blade COOLING FAN Caterpillar 320E 324D 323E 325D 329D Excavator Parts
117-3643: COOLER GP-ENGINE OIL
COOLER GP-ENGINE OIL
117-3643 COOLER GP-ENGINE OIL
S/N C7C1-UP
RH MOUNTED
PART OF 236-4283, 236-4284 ENGINE AR-CORE
ALSO AN ATTACHMENT
1173643 COOLER GP-ENGINE OIL Parts scheme
For full view, you need register
Parts for your 324D LN EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 267-4743 [1] CORE AS-ENGINE OIL COOLER
2. 240-2767 [1] GASKET
3. 3P-1156 [2] SEAL-O-RING
R REMANUFACTURED PART MAY BE AVAILABLE
#SEBP44410111
210-8176: FAN GP-SUCTION
FAN GP-SUCTION
210-8176 FAN GP-SUCTION
S/N EJC1-234; SYM1-172
PART OF 239-6621 ENGINE AR
2108176 FAN GP-SUCTION Parts scheme
Parts for your 324D LN EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 3S-2093 [5] STRAP-CABLE
2. 230-2885 [1] PLATE AS
3. 265-3577 [1] DRIVE AS-FAN
102-8805 [1] KIT-RECEPTACLE (6-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
186-3735 [6] PIN-CONNECTOR (16-GA TO 18-GA)
4. 230-2892 [1] FAN AS (11-BLADE)
5. 4D-7794 [1] CLIP
6. 5C-7261 M [6] NUT (M8X1.25-THD)
7. 7X-0818 M [6] BOLT (M8X1.25X45-MM)
8. 8T-4200 M [4] BOLT (M8X1.25X16-MM)
9. 8T-4224 [16] WASHER-HARD (8.8X16X2-MM THK)
M METRIC PART
#SEBP44410112
210-8176: FAN GP-SUCTION
FAN GP-SUCTION
210-8176 FAN GP-SUCTION
S/N EJC235-UP; SYM173-UP
PART OF 239-6621, 324-4140 ENGINE AR
2108176 FAN GP-SUCTION Parts scheme
Parts for your 324D LN EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 453-3451 [15] WASHER-HARD (8.8X16X2-MM THK)
2. 265-3593 [1] PLATE AS
3. 281-3589 [1] DRIVE AS-FAN
102-8805 [1] KIT-RECEPTACLE (6-PIN)
(INCLUDES RECEPTACLE AS & WEDGE)
186-3735 [6] PIN-CONNECTOR (16-GA TO 18-GA)
4. 230-2892 [1] FAN AS (11-BLADE)
5. 457-8757 [3] BOLT
6. 5C-7261 M [6] NUT (M8X1.25-THD)
7. 453-3435 [6] BOLT
M METRIC PART
#SEBP44410113
192-9972: HOUSING & REGULATOR GP
HOUSING & REGULATOR GP
192-9972 HOUSING & REGULATOR GP
S/N C7C1-UP
PART OF 263-2003, 263-2004 ENGINE AR-COMPLETE
ALSO AN ATTACHMENT
1929972 HOUSING & REGULATOR GP Parts scheme
Parts for your 324D LN EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 227-5942 [1] HOUSING-WATER REGULATOR
2. 136-0812 [1] GASKET-WATER REGULATOR
3. 192-9971 [1] PIPE
4. 9M-1974 [6] WASHER-HARD (8.8X16X2-MM THK)
5. 6V-3940 M [5] BOLT (M8X1.25X25-MM)
6. 8T-0100 M [1] BOLT (M8X1.25X60-MM)
7. 6V-5223 M [1] BOLT (M8X1.25X100-MM)
8. 5P-8347 M [2] BOLT (M8X1.25X70-MM)
9. 396-0405 [5] PLUG AS
(EACH INCLUDES)
6V-6609 [1] SEAL-O-RING
360-3680 [1] PLUG
10. 398-5598 [1] PLUG AS
6V-9027 [1] SEAL-O-RING
360-3677 [1] PLUG (7/16-20-THD)
11. 396-0403 [1] PLUG AS
6V-3250 [1] SEAL-O-RING
360-3679 [1] PLUG-CONNECTOR (9/16-18-THD)
12. 7E-0759 [1] HOSE
13. 337-8778 [1] ADAPTER AS
3P-1932 [1] ADAPTER
6V-6609 [1] SEAL-O-RING
14. 377-9603 [1] VALVE AS-FLUID SAMPLING (WATER)
6V-9027 [1] SEAL-O-RING
154-9023 [1] VALVE-SAMPLING
15. 157-0670 [1] CAP-DUST
17. 126-5466 [1] GASKET
18. 126-5869 [1] REGULATOR-WATER TEMPERATURE (94-DEG C)
19. 347-3148 [2] CLAMP-BAND
M METRIC PART
