1. 20Y-43-23370 [1] BRACKET Komatsu China
["SN: K32000-UP"]
2. 01010-81230 [2] BOLT Komatsu 0.043 kg.
["SN: K32000-UP"] analogs:["0101051230", "01010B1230"]
3. 01643-31232 [2] WASHER Komatsu 0.027 kg.
["SN: K30001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]

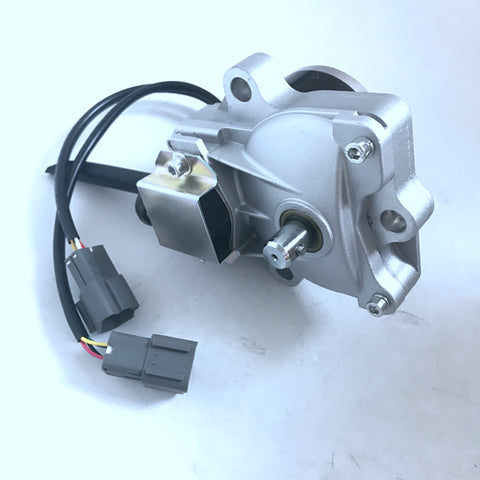

4. 7834-40-3001 [1] MOTOR ASS'Y Komatsu OEM 3.06 kg.
["SN: K33074-UP"] analogs:["7834403003", "7834403000", "7834403002", "7834403004"]
7834-40-3000 [1] MOTOR ASS'Y Komatsu OEM 3.06 kg.
["SN: K30001-K33073"] analogs:["7834403003", "7834403001", "7834403002", "7834403004"] |4.
5. 01010-81040 [3] BOLT Komatsu 0.288 kg.
["SN: K32000-UP"] analogs:["0101051040", "R0101081040"]
6. 01643-31032 [3] WASHER Komatsu 0.054 kg.
["SN: K32000-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
7. 207-43-68120 [1] LEVER Komatsu 0.3 kg.
["SN: K32000-UP"] analogs:["2074368121"]
8. 01010-81035 [1] BOLT Komatsu 0.033 kg.
["SN: K32000-UP"] analogs:["801015556", "01010D1035", "0101051035"]
9. 01602-21030 [1] WASHER,SPRING Komatsu 0.004 kg.
["SN: K30001-UP"] analogs:["YM22217100000"]
10. 20Y-43-23470 [1] SPRING ASS'Y Komatsu 0.55 kg.
["SN: K32000-UP"]
11. 04252-21061 [1] END Komatsu 0.056 kg.
["SN: K32000-UP"] analogs:["0425201061"]
12. 01593-31008 [1] NUT Komatsu 0.01 kg.
["SN: K30001-UP"] analogs:["0159311008", "0159301008"]
13. 04050-12022 [1] PIN,COTTER Komatsu 0.001 kg.
["SN: K32000-UP"] analogs:["0405002022"]
14. 01582-11008 [2] NUT Komatsu 0.01 kg.
["SN: K32000-UP"] analogs:["0158201008", "801750002"]
15. 04256-41020 [1] JOINT Komatsu 0.11 kg.
["SN: K32000-UP"]
17. 01580-11008 [1] NUT Komatsu 0.011 kg.
["SN: K32000-UP"]
18. 20Y-43-A1311 [1] PLATE Komatsu 0.38 kg.
["SN: K32000-UP"]
19. 01010-80610 [2] BOLT Komatsu 0.004 kg.
["SN: K32000-UP"]
20. 01643-30623 [2] WASHER Komatsu 0.002 kg.
["SN: K32000-UP"] analogs:["0164370623"]
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
