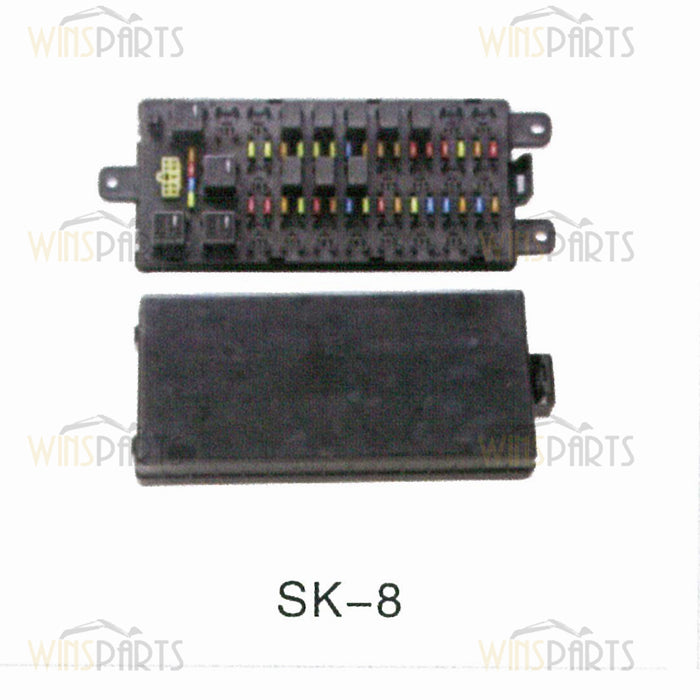

YN24E00016F2 YN24E00016F1 YN24E00016S001 RELAY Fuse Box Assy Kobelco SK200-8 SK210LC-8 SK350-8 SK485-8 Excavator Spare Parts
14 4 YN24S00012P2 RELAY (For F2 Only)
13 3 YN24E00016S013 WIRE CONNECTOR
12 1 YN24E00016S012 WIRE CONNECTOR
11 1 YN24E00016S011 HANDLE
10 4 YN24S00012P1 RELAY (For F1 Only)
9 8 YN24S00010P1 RELAY
8 10 YN24E00016S008 FUSE (20A)
7 6 YN24E00016S007 FUSE (15A)
6 9 YN24E00016S006 FUSE (10A)
5 11 YN24E00016S005 FUSE (5A)
4 1 YN24E00016S004 PRINTED CIRCUIT BOARD
3 1 YN24E00016S003 GUARD Cover
2 1 YN24E00016S002 BOX Housing
1 1 YN24E00016S001 BOX Housing
AR YN24E00016F2 RELAY Box Assy, ASN YN11-46068
AR YN24E00016F2 RELAY Box Assy, ASN YQ11-06080
AR YN24E00016F1 RELAY Box Assy, BTW YN11-45001 & YN11-46067
AR YN24E00016F1 RELAY Box Assy, BTW YQ11-06001 & YQ11 -06079
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
