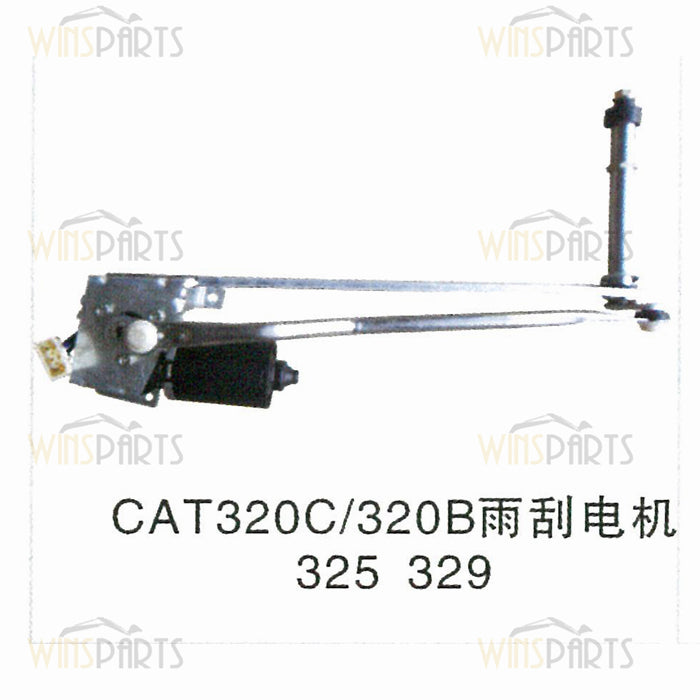

245-7931 2457931 CAB WINDOW WIPER MOTOR AS Caterpillar 312D 318D2 319D 320D 336D E330D Excavator Parts
245-7931 2457931 CAB WINDOW WIPER MOTOR AS Caterpillar 312D 318D2 319D 320D 336D E330D Excavator Parts
234-6594: WIPER GP-WINDOW
WIPER GP-WINDOW
234-6594 WIPER GP-WINDOW -FRONT, UPPER
S/N JJM1-UP
PART OF 276-9583, 356-6718 CAB GP
2346594 WIPER GP-WINDOW Parts scheme
Parts for your 330D EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 161-3677 [1] HOLDER
2. 245-7931 [1] MOTOR AS-WINDOW WIPER
6V-8231 M [1] NUT (M10X1.25-THD)
7Y-3470 M [1] NUT (M20X1-THD)
7Y-3472 [1] CAP
124-3953 [1] WASHER (20.5X30X2-MM THK)
3. 235-8932 [1] NOZZLE AS
4. 155-7042 [1] RELAY AS (WIPER)
5. 372-9334 [1] ARM GP-WINDOW WIPER
161-3669 [1] GUIDE
161-3670 [1] BLADE AS-WIPER (600-MM)
185-8290 [1] SCREW AS (M3.5X0.6X9-MM)
372-9285 [1] ARM AS-WIPER
6. 163-6795 [1] STRAP-CABLE
7. 3E-9872 M [2] SCREW AS (M4X0.7X12-MM)
8. 4I-3090 [1] SEAL
9. 7Y-7364 [1] GROMMET
10. 5C-2890 M [4] NUT (M6X1-THD)
11. 9X-2042 M [2] SCREW-TRUSS HEAD (M6X1X12-MM)
12. 9X-2044 M [3] SCREW-TRUSS HEAD (M6X1X16-MM)
M METRIC PART
#SEBC06700686
244-2118: WIPER GP-WINDOW
WIPER GP-WINDOW
244-2118 WIPER GP-WINDOW -FRONT, LOWER
S/N JJM1-UP
PART OF 284-9539 RISER AR-CAB, 354-4220 RISER GP-CAB
2442118 WIPER GP-WINDOW Parts scheme
Parts for your 330D EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 235-8974 [1] BRACKET AS
2. 293-1140 [1] MOTOR AS-WINDOW WIPER (LOWER)
3. 4I-5020 [1] ARM AS-WIPER
4. 4I-5021 [1] BLADE AS-WIPER (275-MM)(FRONT, LOWER)
5. 8T-4121 [4] WASHER-HARD (11X21X2.5-MM THK)
6. 8T-4134 M [3] NUT (M6X1-THD)
7. 8T-4191 M [4] BOLT (M10X1.5X16-MM)
8. 9X-8256 [3] WASHER (6.6X12X2-MM THK)
M METRIC PART
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
