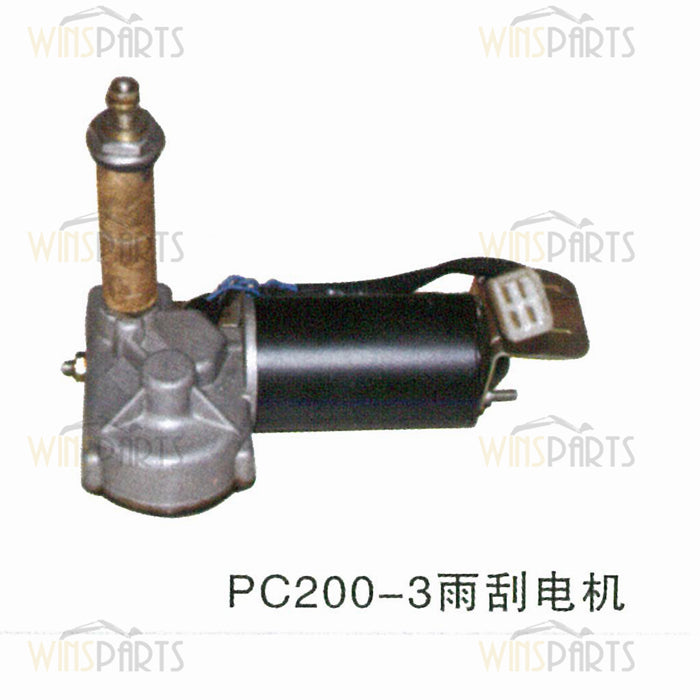

205-06-71410 2050671410 CAB WIPER MOTOR ASS'Y KOMATSU PC200-3 PC220-3 PC150-3 PC120-3 PC220LC-3 PC300-3 PC400-3 Excavator Parts
Pos. Part No Qty Parts name Comments
205-54-00320 [1] OPERATOR'S CAB ASS'Y Komatsu China
["SN: 24224-27912"] analogs:["20B5400051", "2055400253", "2055400255", "2055400254", "2055400252", "2055400321", "2055400251", "2055400256", "2055400322", "2055400250", "21K5400401", "21K5400400"] |1.
205-54-00253 [1] OPERATOR'S CAB ASS'Y Komatsu China
["SN: 21788-24223"] analogs:["20B5400051", "2055400255", "2055400254", "2055400252", "2055400320", "2055400321", "2055400251", "2055400256", "2055400322", "2055400250", "21K5400401", "21K5400400"] |1.
205-54-00252 [1] OPERATOR'S CAB ASS'Y Komatsu China
["SN: 20332-21787"] analogs:["20B5400051", "2055400253", "2055400255", "2055400254", "2055400320", "2055400321", "2055400251", "2055400256", "2055400322", "2055400250", "21K5400401", "21K5400400"] |1.
205-54-00251 [1] OPERATOR'S CAB ASS'Y Komatsu China
["SN: 20001-20331"] analogs:["20B5400051", "2055400253", "2055400255", "2055400254", "2055400252", "2055400320", "2055400321", "2055400256", "2055400322", "2055400250", "21K5400401", "21K5400400"] |1.
205-54-00261 [1] FRONT WINDOW ASS'Y Komatsu China
["SN: 20332-@"] analogs:["2055400260"] |1.
205-54-00260 [1] FRONT WINDOW ASS'Y Komatsu China
["SN: 20001-20331"] analogs:["2055400261"] |1.
1. 205-54-71132 [1] WINDOW,FRONT Komatsu China
["SN: 20332-@"] analogs:["2055471131"]
205-54-71131 [1] WINDOW,FRONT Komatsu China
["SN: 20001-20331"] analogs:["2055471132"] |1.
2. 205-54-72650 [2] PIN Komatsu China
["SN: 20001-@"]
3. 205-54-66330 [2] SPRING Komatsu China
["SN: 20001-@"]
4. 01641-21016 [4] WASHER Komatsu 0.002 kg.
["SN: 20001-@"]
5. 04050-13018 [2] PIN,COTTER Komatsu 0.001 kg.
["SN: 20001-@"]
6. 205-54-71211 [1] GLASS Komatsu 9.62 kg.
["SN: 20001-@"]
7. 205-54-71520 [1] STRIP,WEATHER Komatsu China
["SN: 20001-@"] analogs:["2035443510"]
8. 205-54-71621 [1] SEAL Komatsu China
["SN: 20001-@"] analogs:["2035443530", "2035443940", "2035471621"]
9. 205-54-72570 [1] STRIKER Komatsu China
["SN: 20001-@"]
10. 01224-40820 [3] SCREW Komatsu China
["SN: 20001-@"] analogs:["M011120802006", "0121430820", "0122430820"]
11. 205-54-72750 [3] WASHER,LOCK Komatsu China
["SN: 20001-@"]
12. 205-54-72590 [4] ROLLER Komatsu China
["SN: 20001-@"]
13. 205-06-71410 [1] WIPER MOTOR ASS'Y Komatsu China
["SN: 20001-@"] analogs:["2030641720"]
14. 01220-40516 [2] SCREW Komatsu 0.003 kg.
["SN: 20001-@"]
15. 01601-20513 [2] WASHER,SPRING Komatsu 0.34 kg.
["SN: 20001-@"]
16. 01641-20508 [2] WASHER Komatsu 0.1 kg.
["SN: 20001-@"] analogs:["0164150508", "802070005"]
17. 205-06-62230 [1] GROMMET Komatsu 0.01 kg.
["SN: 20001-@"]
18. 205-06-62270 [2] WASHER Komatsu China
["SN: 20001-@"]
19. 205-06-62240 [1] COLLAR Komatsu 0.02 kg.
["SN: 20001-@"]
20. 205-06-62250 [2] NUT Komatsu China
["SN: 20001-@"]
21. 205-06-71420 [1] ARM Komatsu China
["SN: 20001-@"]
21A. ND857199-0100 [1] PIN KIT Komatsu 0.01 kg.
["SN: 20001-@"]
22. 205-06-62570 [1] BLADE Komatsu 0.09 kg.
["SN: 20001-@"] analogs:["195Z112470"]
23. 205-54-71510 [1] TRIM Komatsu China
["SN: 20001-@"] analogs:["2035443520", "2035443950", "2055466430"]
24. 205-54-76310 [1] GLASS ASS'Y Komatsu 5 kg.
["SN: 20001-@"]
24A. 205-54-72721 [1] SEAL,L.H. Komatsu 0.009 kg.
["SN: 20001-@"]
24B. 205-54-72731 [1] SEAL,R.H. Komatsu China
["SN: 20001-@"]
25. 205-54-72621 [1] BRACKET Komatsu 0.9 kg.
["SN: 20332-27912"]
205-54-72620 [1] BRACKET Komatsu 0.9 kg.
["SN: 20001-20331"] analogs:["2055472621"] |25.
26. 01010-50616 [4] BOLT Komatsu 0.006 kg.
["SN: 20001-27912"] analogs:["0101080616", "801014044", "0101030616", "0101000616", "801015064"]
27. 01643-30623 [4] WASHER Komatsu 0.002 kg.
["SN: 20001-27912"] analogs:["0164370623"]
28. 09415-01008 [1] CAP Komatsu 0.005 kg.
["SN: 20001-@"]
29. 01220-40412 [2] SCREW Komatsu 0.005 kg.
["SN: 20001-@"] analogs:["D80M121"]
30. 01601-20410 [2] WASHER,SPRING Komatsu 0.002 kg.
["SN: 20001-@"]
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
