-. KHJ15460 [1] SOLENOID VALVE SUM Incl. 1 - 23
-. KHJ1972 [1] SOLENOID VALVE SUM Superseded by part number: KHJ15460
1. NSS [1] NOT SOLD SEPARAT CON Body
2. NSS [5] NOT SOLD SEPARAT CON Spool
3. NSS [1] NOT SOLD SEPARAT CON Spool
4. LG006010 [5] COMPRESSION SPRING SUM
5. LG006020 [1] COMPRESSION SPRING SUM
6. LR015080 [6] ADAPTER SUM
7. LA010960 [6] SNAP RING SUM
8. NSS [1] NOT SOLD SEPARAT CON Name Plate
9. LA010970 [12] SPRING WASHER SUM
10. LD001470 [1] COLLAR SUM
11. LD001450 [1] COLLAR SUM
12. LD001480 [1] COLLAR SUM
13. LD001490 [1] COLLAR SUM
14. LD001500 [2] COLLAR SUM
15. LD001460 [1] MOUNTING CLIP SUM

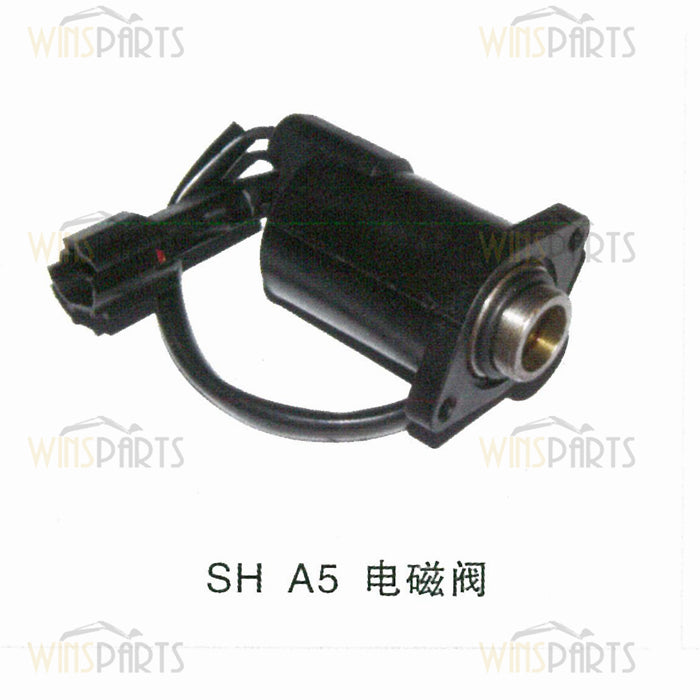

16. LL001140 [6] SOLENOID SUM (Used for Swing Pilot Shut-Off - Green Band, Pilot Pressure - Blue Band, Swing Break - Pink Band, 2 Stage Travel - Red Band, Power-Up - Yellow Band, Cushion Control - Light Green Band) Incl. 17, 18
16. LL00068 [6] SOLENOID VALVE SUM (Used for Swing Pilot Shut-Off - Green Band, Pilot Pressure - Blue Band, Swing Break - Pink Band, 2 Stage Travel - Red Band, Power-Up - Yellow Band, Cushion Control - Light Green Band)
17. 155188A1 [6] O-RING SUM
18. 154487A1 [6] O-RING SUM
19. 154463A1 [6] O-RING SUM
20. LA010980 [12] BOLT,Hex Skt Hd SUM
21. LK005630 [6] PLUG SUM
22. LK005640 [4] PLUG SUM
23. NSS [2] NOT SOLD SEPARAT CON Rivet
