1. 123-2467 [1] VALVE GP-PILOT
2. 111-9916 Y [1] VALVE GP-SOLENOID (PRESSURE REDUCING)

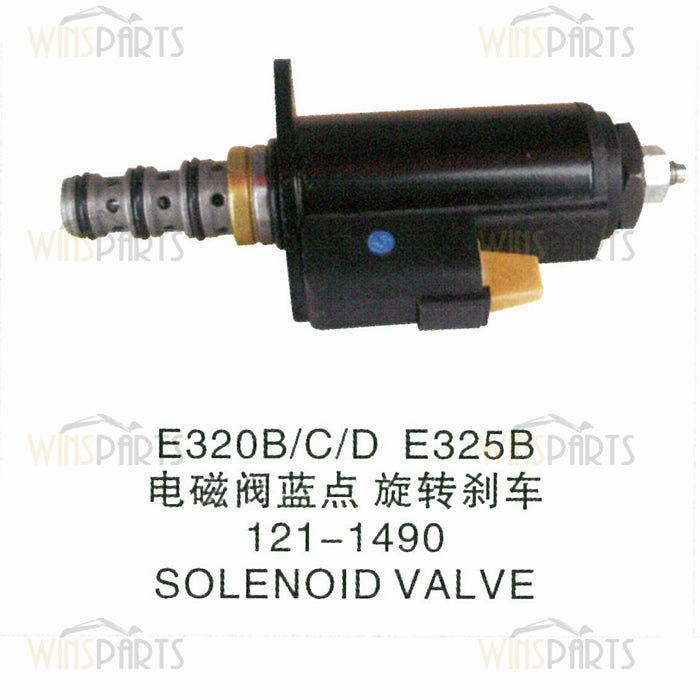

3. 121-1490 Y [2] VALVE GP-SOLENOID
4. 121-1491 Y [1] VALVE GP-SOLENOID
5. 7Y-5011 [1] VALVE
6. 096-1598 [1] SPRING
7. 3K-0360 [1] SEAL-O-RING
8. 7Y-5010 [1] PLUG
9. 096-1595 [1] SPRING
10. 095-1592 [1] SEAL-O-RING
11. 7Y-5009 [1] CAP
12. 8T-4133 M [1] NUT (M10X1.5-THD)
13. 4I-8915 M [1] SETSCREW-SOCKET (M10X1.5X25-MM)
14. 095-1582 [1] SEAL-O-RING
15. 4I-5657 [1] PLUG
16. 8T-6759 [12] PLUG-PIPE
17. 7I-2272 M [8] BOLT (M5X0.8X12-MM)
M METRIC PART
Y SEPARATE ILLUSTRATION
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
| Main System | Subsystems |
|---|---|
| 1. Power System |
- Engine - Air Intake System - Fuel Supply System - Lubrication System - Cooling System - Exhaust System |
| 2. Hydraulic System |
- Main Pump - Control Valve - Main Control Valve - Hydraulic Cylinders (Boom, Arm, Bucket) - Swing Motor - Travel Motor - Relief / Safety Valve - Hydraulic Tank & Filters - Pilot Control System |
| 3. Electrical System |
- ECU & Monitor - Battery - Starter & Alternator - Wiring Harness - Sensors (Pressure, Temp, Position) - Solenoid Valves - Lighting & Alarm System |
| 4. Working Equipment |
- Boom - Arm / Stick - Bucket - Quick Coupler - Attachments (Breaker, Grapple, Shear) |
| 5. Undercarriage / Travel System |
- Tracks / Tires - Track Rollers, Carrier Rollers, Idlers - Track Tensioner - Travel Motor & Reducer |
| 6. Swing System |
- Swing Motor - Swing Reducer - Swing Bearing - Swing Brake |
| 7. Control System |
- Operator Cab - Joysticks - Pedals & Levers - A/C System - Camera & Monitor System |
| 8. Lubrication & Maintenance |
- Hydraulic Oil Filter - Fuel Filter - Air Filter - Grease Points - Auto Greasing System (optional) |
