1. VOE20412506 [1] ECU EECU SER NO 10001-10268
VOE3161962 [1] ECU EECU SER NO 10269-10806
VOE20577131 ECU SER NO 10807-
2. VOE3095161 [8] Damping element
3. VOE13948217 [4] Screw
4. VOE11127682 [1] Cable harness ENG S/N - 295774
CONNECTED TO:
Control unit, inject EECU:1, EECU:2
Injector MA 2306, 2305, 2304, 2303, 2302, 2301
Tachometer sensor SE2701
Engine speed,camshaft SE2703
Coolant level SE2603
Temperature gauge SE2606
Relay, heater RE2501
Fuse FH1
Socket housing E01, E02, E03, E04, E05
Wire harness
VOE11128699 [1] Cable harness ENG S/N 295775-302887
CONNECTED TO:
Control unit, inject EECU:1, EECU:2
Injector MA2306, 2305, 2304 2303, 2302, 2301
Tachometer sensor SE2701
Engine speed,camshaft SE2703
Coolant level SE2603
Temperature gauge SE2606
Relay, heater HE2501
Socket housing E01, E02, E03, E04, E05
Relay,engine heater RT
Wire harness
VOE11128781 [1] Cable harness ENG S/N 302888 -
CONNECTED TO:
Control unit, inject EA, EB
Injector MA2306, 2305, 2304, 2303, 2302, 2301
Tachometer sensor SE2701
Engine speed,camshaft SE2703
Coolant level SE2603
Temperature gauge SE2606
Relay, heater HE2501
Socket housing E01, E02, E03, E04, E05
Relay,engine heater RT
Wire harness
5. VOE3985509 [1] Bracket
6. VOE3173718 [1] Bracket
7. VOE946329 [1] Flange screw
8. VOE983472 [REQ] Cable tie
9. VOE4881440 [REQ] Cable tie
10. VOE13949746 [0004] Clamp
11. VOE13966807 [4] Flange screw
12. VOE20576614 [1] Sensor SE2606 Coolant temperature
13. VOE975660 [1] O-ring
14. VOE946440 [1] Flange screw
15. VOE20374282 [2] Sensor SE2701, SE2703 Camshaft position(Speed)
16. VOE974673 [2] O-ring
17. VOE1677894 [REQ] Shim
18. VOE940326 [2] Hex. socket screw
19. VOE20374280 [1] Sensor E03 Boost air pressure
VOE20700060 [1] Sensor E03 Boost air pressure
20. VOE975632 [1] O-ring
21. VOE13955272 [2] Screw

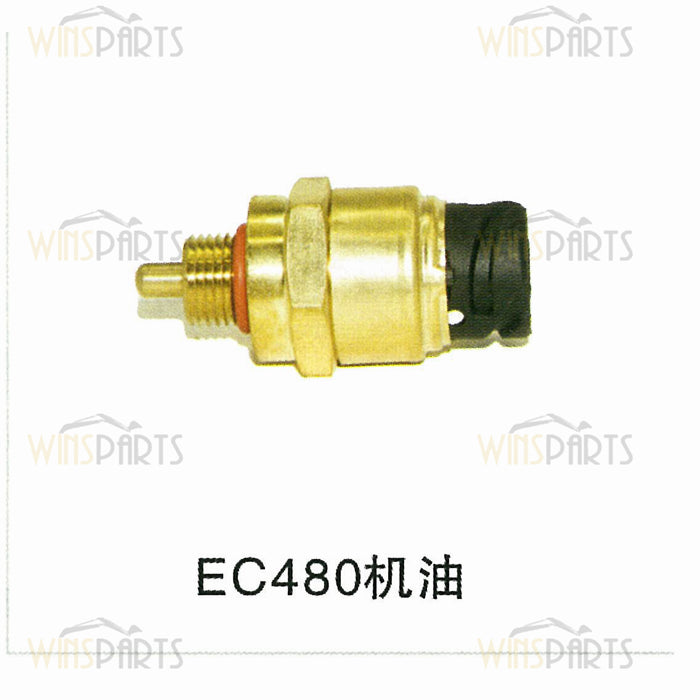

22. VOE1077574 [1] Sensor E04 Eng oil pressure
23. VOE968559 [1] O-ring
24. VOE20886108 [1] Sensor E05 Fuel pressure
25. VOE968559 [1] O-ring
26. VOE1578046 [2] Retainer
27. VOE969405 [2] Six point socket screw
28. [1] Expansion tank See group 261
29. [1] Air cleaner
30. VOE20409005 [1] Bracket
31. VOE13949997 [1] Clamp
32. VOE13945444 [1] Screw
33. VOE948645 [1] Flange lock nut
34. VOE13965534 [1] Bracket
35. VOE13949746 [1] Clamp
36. VOE946440 [2] Flange screw
37. VOE13945408 [1] Nut
38. VOE952627 [1] Clamp E PROD
39. VOE959187 [2] Hex. socket screw E PROD
40. VOE13965483 [2] Nut E PROD
41. VOE3197954 [1] Cap ENG S/N - 286914
VOE20567989 [1] Cover ENG S/N 286915 -
42. VOE28429850 [5] Retainer
43. VOE3988328 [1] Bracket
44. VOE3963413 [1] Ring
45. VOE965570 [1] Bracket L PROD
46. VOE946440 [2] Flange screw L PROD
47. VOE13965535 [1] Bracket L PROD
48. VOE13949746 [3] Clamp L PROD
49. VOE13945408 [2] Nut L PROD
VOE20367490 [1] Relay
