9659B 1 VH965910111A WASHER
9659A 1 VH965914103A WASHER
9644A 1 VH964403136A O-RING
9240-08087 5 VH924008087A NUT
9190-06121 1 VH919006121A BOLT
9068-08250 1 VH906808250A BOLT
9068-08160 7 VH906808160A BOLT
9068-08160 2 VH906808160A BOLT
9061-06140 4 VH906106140A BOLT
89411 1 VH894111280A SENSOR
89410 1 VH894101570A SENSOR
89390 1 VH893901080A SENSOR
83420 1 VH834201250A SENSOR
82715 1 VH82715E0C60 BRACKET Bracket, Wiring Harness Clamp
82702B 1 VH82702E0200 BRACKET Bracket Sub Assy, Wiring Harness
82702A 1 VH82702E0240 BRACKET Bracket Sub Assy, Wiring Harness
82702 1 VH82702E0230 BRACKET Bracket Sub Assy, Wiring Harness
82560 1 VH825601200A ELEC CONNECTOR
82121A 1 VH82121E0310 WIRE Wire, Engine
82121 1 VH82121E0840 WIRE Wire, Engine
82064 1 VH820642530A HARNESS
82030 1 VH820306412A HARNESS
12017G 1 VH120172600A BRACKET
12017D 1 VH120173531A BRACKET Bracket Sub Assy
12017C 1 VH120173520A BRACKET Bracket Sub Assy
12017 1 VH120172220A BRACKET
83530 1 VH835301471A SWITCH
9854A 2 985412101A CLIP
9659B 1 965910111A WASHER SOFT
9659A 1 965914103A WASHER SOFT
9644A 1 964403136A O-RING
9412-10252 1 941210252A BOLT W/WASHER
9280-14350 1 928014350A WASHER WASHER
9262-10360 1 926210360A WASHER PLAIN
9260-14270 2 926014270A WASHER PLAIN
9241-14147 1 924114147A NUT
9241-10107 1 924110107A NUT
9240-08087 7 924008087A NUT
9189A 1 918908135A BOLT
9069D 1 906914127A BOLT FLANGE
9068-60150 2 906860150A BOLT FLANGE
9068-10650 1 906810650A BOLT FLANGE
9068-08200 2 906808200A BOLT FLANGE
9068-08160 5 906808160A BOLT FLANGE
9068-08160 2 906808160A BOLT FLANGE
9061-06140 4 906106140A BOLT
9011-64401 1 901164401A BOLT
900807 3 900807101A PROTECTION CAP BAND
900239C 1 900239739A HOSE AIR
900149 1 900149377A BELT V-BELT SET
900124 1 900124171A BOLT
89411 1 89411-1280 SENSOR ASSY, SPEED
89410A 1 89410-1290 SENSOR ASSY, SPEED
89410 1 89410-1590 SENSOR ASSY, SPEED
89390 1 89390-1080 SENSOR ASSY, PRESSURE
83420 1 83420-1250 GAUGE ASSY, WATER TEMP
82560 1 82560-1200 ELEC CONNECTOR ASSY
82064B 1 820646621A WIRE HARNESS ASSY, ENG
82064A 1 820646621A WIRE HARNESS ASSY, ENG
82064 1 820642530A WIRE HARNESS ASSY, ENG
82030 1 82030-6450 WIRE HARNESS ASSY
79904 1 79904-2230 CLIP ASSY
28100 1 28100-2894 STARTING MOTOR ASSY 24V-5KW See Fig.19-05
27040 1 270402500A ALTERNATOR ALTERNATOR ASSY, W/REG 24V-60A See Fig.19-04
19113 4 19113-1050 INSULATOR GLOW PLUG
19112A 1 19112-1210 WIRE HARNESS GLOW PLUG GROUND
19112 2 19112-1201 WIRE HARNESS GLOW PLUG GROUND
19110 4 19110-1261 GLOW PLUG ASSY, GLOW
13694 1 13694-1180 TACH GEN
12511A 1 12511-4170 BRACKET GEN
12511 1 12511-4330 BRACKET GEN
12509 1 12509-2040 BRACKET ASSY, GEN
12017H 1 120172040A BRACKET ASSY
12017G 1 12017-2600 BRACKET ASSY
12017F 1 12017-3560 BRACKET ASSY
12017D 1 12017-3600 BRACKET ASSY
12017C 1 12017-3220 BRACKET ASSY
12017B 1 12017-2872 BRACKET ASSY
12017A 1 12017-2171 BRACKET ASSY
12017 1 12017-2082 BRACKET ASSY
NO -- VH ELECTRICAL PARTS (ENGINE)

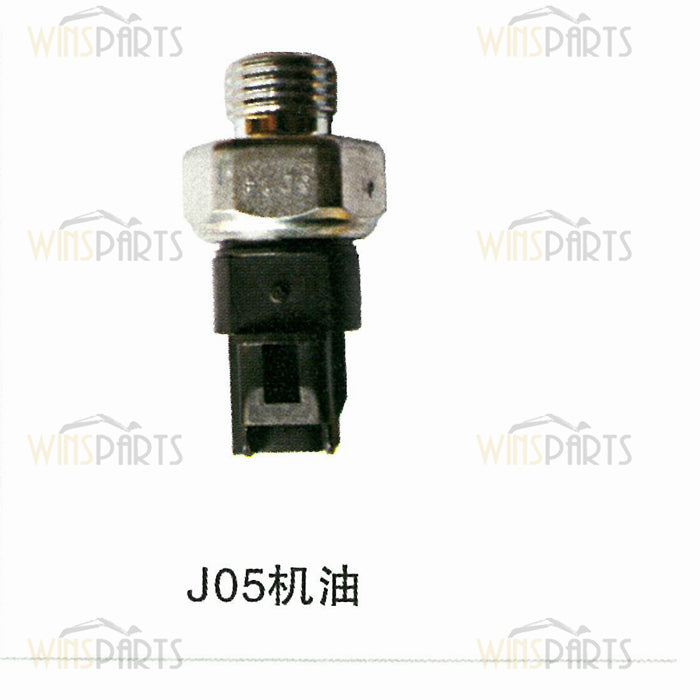

83530 1 835301471A SWITCH ASSY ASSY,OIL PRESS; Replaces VH835301471D
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
| Main System | Subsystems |
|---|---|
| 1. Power System |
- Engine - Air Intake System - Fuel Supply System - Lubrication System - Cooling System - Exhaust System |
| 2. Hydraulic System |
- Main Pump - Control Valve - Main Control Valve - Hydraulic Cylinders (Boom, Arm, Bucket) - Swing Motor - Travel Motor - Relief / Safety Valve - Hydraulic Tank & Filters - Pilot Control System |
| 3. Electrical System |
- ECU & Monitor - Battery - Starter & Alternator - Wiring Harness - Sensors (Pressure, Temp, Position) - Solenoid Valves - Lighting & Alarm System |
| 4. Working Equipment |
- Boom - Arm / Stick - Bucket - Quick Coupler - Attachments (Breaker, Grapple, Shear) |
| 5. Undercarriage / Travel System |
- Tracks / Tires - Track Rollers, Carrier Rollers, Idlers - Track Tensioner - Travel Motor & Reducer |
| 6. Swing System |
- Swing Motor - Swing Reducer - Swing Bearing - Swing Brake |
| 7. Control System |
- Operator Cab - Joysticks - Pedals & Levers - A/C System - Camera & Monitor System |
| 8. Lubrication & Maintenance |
- Hydraulic Oil Filter - Fuel Filter - Air Filter - Grease Points - Auto Greasing System (optional) |
