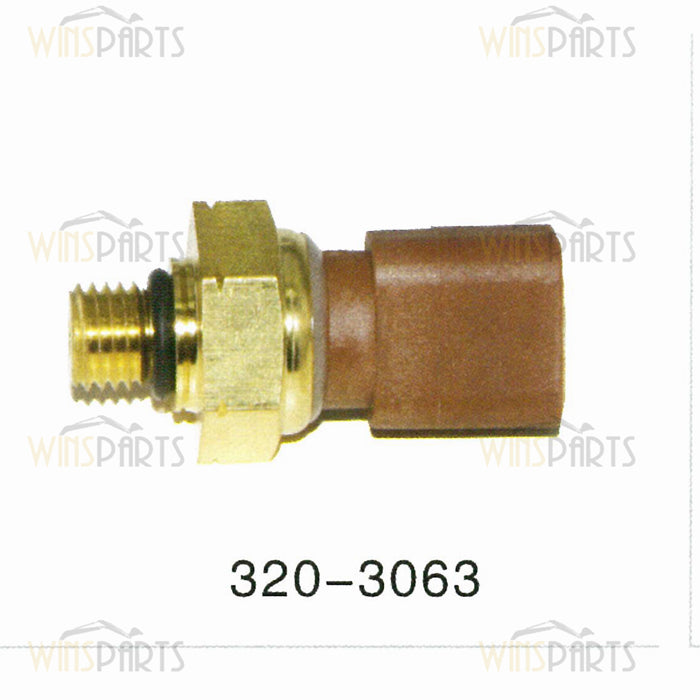

320-3063 3203063 CAT C9 3512B 3516B 3516E Engine Parts Pressure Sensor Switch Caterpillar 318 312D2 320D2 Spare Parts
1. 489-4969 CY [1] WIRING GP-ENGINE (HARNESS)
2. 4P-7068 [1] BRACKET
3. 7K-1181 C [85] STRAP-CABLE
4. 111-3684 [1] HOSE AS
5. 195-2431 [6] SENSOR GP-DETONATION
(EACH INCLUDES)
8T-8730 [3] SOCKET-CONNECTOR (16-GA TO 18-GA)
8T-8731 [1] PLUG-CONNECTOR (3-PIN)
9X-1813 E SLEEVE (16-CM)
6. 243-5752 Y [12] SENSOR GP-TEMPERATURE (CYLINDER EXHAUST)
7. 256-6453 [1] SENSOR-TEMPERATURE (2-PIN)(TURBOCHARGER INLET)
7A. 256-6453 [1] SENSOR-TEMPERATURE (2-PIN)(SEPARATE CIRCUIT AFTERCOOLER)
7B. 256-6453 [1] SENSOR-TEMPERATURE (2-PIN)(ENGINE COOLANT)
7C. 256-6453 [1] SENSOR-TEMPERATURE (2-PIN)(AIR INLET)
8. 261-6847 [2] ADAPTER
9. 261-6848 Y [1] SENSOR GP-EXHAUST TEMPERATURE (TURBOCHARGER, RH)
9A. 261-6848 Y [1] SENSOR GP-EXHAUST TEMPERATURE (TURBOCHARGER, LH)
10. 305-6873 [1] SENSOR GP-PRESSURE (FUEL)
11. 318-1181 Y [1] SENSOR GP-SPEED (MAGNETIC)
12. 320-3060 [2] SENSOR GP-PRESSURE (ENGINE OIL)
12A. 320-3060 [1] SENSOR GP-PRESSURE (FUEL TRANSFER)
12B. 320-3060 [1] SENSOR GP-PRESSURE (FUEL OUTLET)
13. 320-3061 [1] SENSOR GP-PRESSURE (AIR INLET MANIFOLD)
14. 320-3063 [1] SENSOR GP-PRESSURE (TURBOCHARGER INLET, LH)
14A. 320-3063 [1] SENSOR GP-PRESSURE (TURBOCHARGER INLET, RH)
14B. 320-3063 [1] SENSOR GP-PRESSURE (ATMOSPHERIC)
14C. 320-3063 [1] SENSOR GP-PRESSURE (CRANKCASE)
15. 353-5439 [1] CONNECTOR
16. 353-5440 [2] ADAPTER
17. 353-5441 [5] ADAPTER-ELBOW
18. 001-9440 [1] CONNECTOR
19. 034-3557 [3] BOLT-LOCKING (3/8-16X1.125-IN)
20. 0L-1352 [1] BOLT (3/8-16X3.25-IN)
21. 0L-2070 [13] BOLT (3/8-16X2.25-IN)
22. 0S-0509 [1] BOLT (3/8-16X0.75-IN)
23. 0S-1588 [1] BOLT (3/8-16X1.25-IN)
24. 0S-1594 [11] BOLT (3/8-16X1-IN)
25. 132-5789 C [4] CLIP (LADDER)
26. 1A-2029 C [5] BOLT (3/8-16X1.125-IN)
27. 214-7566 [7] SEAL-O-RING
28. 214-7568 [2] SEAL-O-RING
29. 228-7100 [9] SEAL-O-RING
30. 228-7101 [1] SEAL-O-RING
31. 238-5080 [4] SEAL-O-RING
32. 273-5041 Y [1] SENSOR GP-SPEED (ENGINE TIMING)
33. 330-9739 [1] ADAPTER
34. 335-3999 [2] CONNECTOR
35. 352-3966 C [2] CLIP (LADDER)
36. 352-3968 [2] CLIP (LADDER)
37. 3A-3692 [2] CLIP
38. 3B-1915 [1] BOLT (3/8-16X1.375-IN)
39. 3J-7354 [2] SEAL-O-RING
40. 4P-7429 [3] CLIP (LADDER)
41. 4P-7581 [21] CLIP (LADDER)
42. 4P-8134 C [46] CLIP (LADDER)
43. 4S-5719 [4] SPACER (10.31X25X12.7-MM THK)
44. 5M-2894 C [45] WASHER-HARD (10.2X18.5X2.5-MM THK)
45. 5N-2126 [12] CONNECTOR (THERMOCOUPLE)
46. 5P-3426 [1] ELBOW
47. 5P-8245 C [2] WASHER-HARD (13.5X25.5X3-MM THK)
48. 6L-4428 [4] STUD-TAPERLOCK (3/8-16X4.01-IN)
49. 6V-1581 [1] CLIP (SLOT)
50. 6V-1582 [1] CLIP (TAB)
51. 6V-5048 [1] SEAL-O-RING
52. 6V-9330 [2] ELBOW
53. 6W-6672 [13] SPACER (10.5X20X38-MM THK)
54. 7X-0341 C [2] BOLT (1/2-13X7-IN)
55. 8M-9024 [1] WASHER-HARD (10.2X22.5X5-MM THK)
56. 9S-8752 [10] NUT-FULL (3/8-16-THD)
57. 9X-0262 [1] ADAPTER
C CHANGE FROM PREVIOUS TYPE
E ORDER BY THE CENTIMETER
Y SEPARATE ILLUSTRATION
