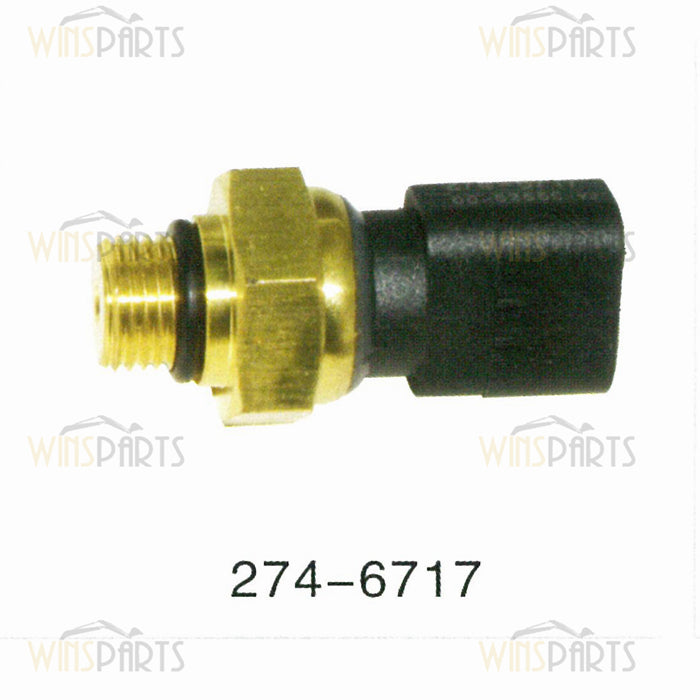

274-6717 2746717 CAT Oil Pressure Sensor C9 3508B 3512B 3512C 3516 Caterpillar 725 730 735 740 Parts
. 7K-1181 C [28] STRAP-CABLE
2. 326-4514 [1] TIE-CABLE
3. 230-9174 [1] CIRCUIT BREAKER AS (15-AMPERE)
6V-8378 [2] NUT (10-32-THD)
8F-1434 [2] LOCKWASHER
8T-0328 [2] WASHER-HARD (5.5X10X1-MM THK)
4. 274-6717 [1] SENSOR-PRESSURE (ENGINE OIL)
5. 337-5711 [1] BRACKET
6. 9X-8486 [2] SCREW-MACHINE (8-32X0.75-IN)
7. 459-8205 Y [1] HARNESS AS-WIRING
8. 462-0438 [1] PLATE
9. 0S-0509 [2] BOLT (3/8-16X0.75-IN)
10. 132-5789 [8] CLIP (LADDER)
11. 2B-2695 [1] BOLT (5/16-18X0.875-IN)
12. 352-3964 [2] CLIP (LADDER)
13. 352-3968 [1] CLIP (LADDER)
14. 352-3970 [1] CLIP (LADDER)
15. 9S-8752 [2] NUT-FULL (3/8-16-THD)
16. 4P-7581 [5] CLIP (LADDER)
17. 4P-8134 [5] CLIP (LADDER)
18. 5M-2894 [4] WASHER-HARD (10.2X18.5X2.5-MM THK)
19. 9M-1974 [1] WASHER-HARD (8.8X16X2-MM THK)
The price is for reference only, please contact us by email and the actual quotation shall prevail.
