1 YN30V00101R220 SPOOL Repair Kit Consists Of Ref. 42x1, 43x1, 51x2, (For F2 ONLY)
1 YN30V00101R210 REPAIR KIT Consists Of Ref. 41x1, 44x1, 45x1 (For F1,F2 ONLY)
1 YN30V00101R200 REPAIR KIT Consists Of Ref. 40x1, 48x1, 50x1
1 YN30V00101R190 REPAIR KIT Consists Of Ref. 39x1, 48x1, 50x1
1 YN30V00116R170 REPAIR KIT Consists Of Ref. 38x1, 42x1, 49x1
1 YN30V00101R170 REPAIR KIT Consists Of Ref. 37x1, 48x1, 50x1
1 YN30V00101R150 REPAIR KIT Consists Of Ref. 36x1, 44x1, 45x1
1 YN30V00101R140 REPAIR KIT Consists Of Ref. 35x1, 46x1, 47x1
1 YN30V00116R130 REPAIR KIT Consists Of Ref. 34x1, 42x1, 43x1
1 YN30V00101R120 REPAIR KIT Consists Of Ref. 33x1, 42x1, 43x1
1 YN30V00116R110 REPAIR KIT Consists Of Ref. 32x1, 42x1, 43x1
1 YN30V00101R100 REPAIR KIT Consists Of Ref. 31x1, 42x1, 43x1, (For F1,F3 ONLY)
83 1 YN30V00101S010 SPOOL Assy (For F2 ONLY)
82 2 YN30V00120F2 VALVE Assy, Bypass (For F2, F3 ONLY)
81 2 NSS NOT SERVICED SEPARATELY Pin
80 1 NSS NOT SERVICED SEPARATELY Name Plate
79 2 ZS23C14140 SCREW Cap
78 8 ZS23C14160 SCREW Cap
77 2 YN30V00120F1 VALVE Assy, Bypass (For F1 ONLY)
76 1 YN22V00029F1 VALVE Assy, Port Relief (See HC020)
75 2 YN30V01062P1 PLUG Assy
74 3 YN22V00002F9 VALVE Assy, Port Relief (See HC015)
72 1 YN22V00001F8 HYDRAULIC VALVE Assy, Main Relief (See HC010)
71 2 ZD12P02000 O-RING
70 3 YN30V00001S556 PLUG
69 2 YW30V00001S556 PLUG
68 13 YN30V00001S551 PLUG
67 1 YN30V00101S528 SPRING
66 1 YN30V00101S527 SPRING
65 2 YN30V00001S524 SPRING
64 1 YN30V00089S523 SPRING
63 2 YN30V00101S522 SPRING
62 11 2436U1165S521 SPRING
61 1 YN30V00101S518 HYDRAULIC VALVE Poppet
60 1 YN30V00101S517 HYDRAULIC VALVE Poppet
59 1 2436U1231S513 POPPET
58 2 YN30V00101S514 HYDRAULIC VALVE Poppet
57 2 YW30V00001S513 POPPET
56 11 YN30V00101S341 HYDRAULIC VALVE Poppet
55 1 YN30V00101S340 CLIP Stopper
54 1 YN30V00001S339 STOP
53 10 2436U1165S335 STOP
52 12 2436U1165S336 BOLT Spacer
51 24 2436U1443S332 SPRING SEAT
50 3 YN30V00101S329 SPRING
49 1 YN30V00101S328 SPRING
48 3 YN30V00101S327 SPRING
47 1 YN30V00101S326 SPRING
46 1 YN30V00079S323 SPRING
45 3 2436U1165S372 SPRING
44 3 2436U1165S371 SPRING
43 4 YN30V00079S322 SPRING
42 5 YN30V00079S321 SPRING
41 1 YN30V00101S311 SPOOL
40 1 YN30V00101S310 SPOOL
39 1 YN30V00101S309 SPOOL
38 1 YN30V00116S308 SPOOL Assy
37 1 YN30V00101S307 SPOOL
36 2 YN30V00101S306 REPAIR KIT Spool
35 1 YN30V00101S305 SPOOL
34 1 YN30V00116S304 SPOOL
33 1 YN30V00101S303 SPOOL
32 1 YN30V00116S302 SPOOL
31 1 YN30V00101S301 SPOOL Assy (For F1, F3 ONLY)
30 5 ZS23C08035 SCREW Cap
29 4 ZS23C12035 SCREW Cap
28 4 ZS23C12025 SCREW Cap
27 40 ZS23C08025 SCREW Cap
26 4 ZD12P00700 GASKET O-Ring
25 10 ZD12G04000 O-RING
24 12 ZD12G05000 O-RING
23 1 YN30V00101S216 PISTON
22 1 YN30V00116S213 PLATE
21 1 YN30V00079S212 PLATE
20 2 YN30V00119F1 VALVE Assy, Lock (See HC025)
19 1 YN30V00101S209 GUARD Cover
18 1 YN30V00101S207 GUARD Cover
17 1 YN30V00101S206 GUARD Cover
16 7 YN30V00001S205 COVER
15 1 YN30V00101S204 GUARD Cover
14 1 YN30V00101S203 GUARD Cover
13 4 YN30V00101S202 GUARD Cover
12 5 YN30V00101S201 GUARD Cover
11 2 ZD12P01800 O-RING
10 19 ZD12P02400 O-RING
9 11 ZD12P01500 O-RING
8 15 ZD12G03000 O-RING
7 7 ZD12P03800 O-RING
6 5 NSS NOT SERVICED SEPARATELY Plug
5 1 NSS NOT SERVICED SEPARATELY Plug
4 2 YW30V00001S155 PLUG
3 3 YN30V00001S154 PLUG
2 1 NSS NOT SERVICED SEPARATELY Body
AR YN30V00101F3 CONTROL VALVE Assy, Control
AR YN30V00101F2 CONTROL VALVE Assy, Control
1 1 NSS NOT SERVICED SEPARATELY Body
AR YN30V00101F1 VALVE, CONTROL Assy, Control

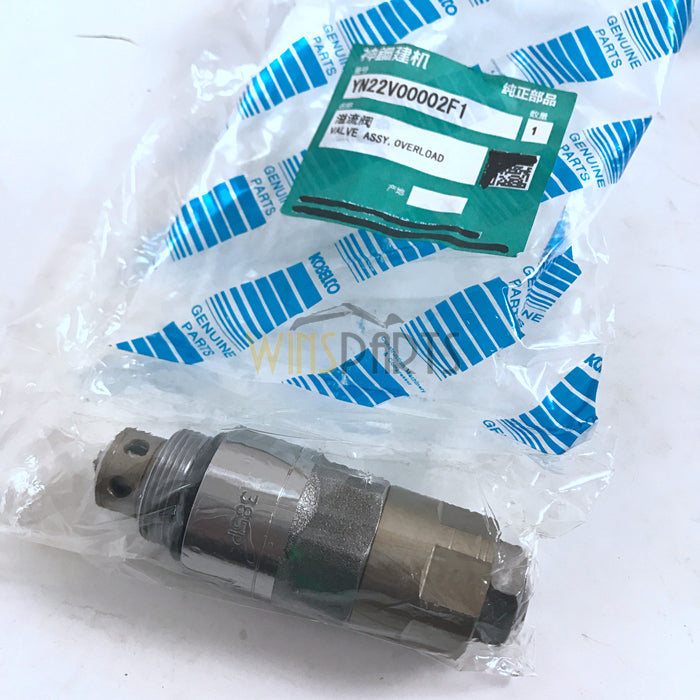

73 2 YN22V00002F1 VALVE Assy, Port Relief (See HC015)
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
