259-7430 VALVE GP-SOLENOID
S/N XBA1-UP
PART OF 260-7982 LINES GP-PILOT
1. 7I-2272 M [4] BOLT (M5X0.8X12-MM)

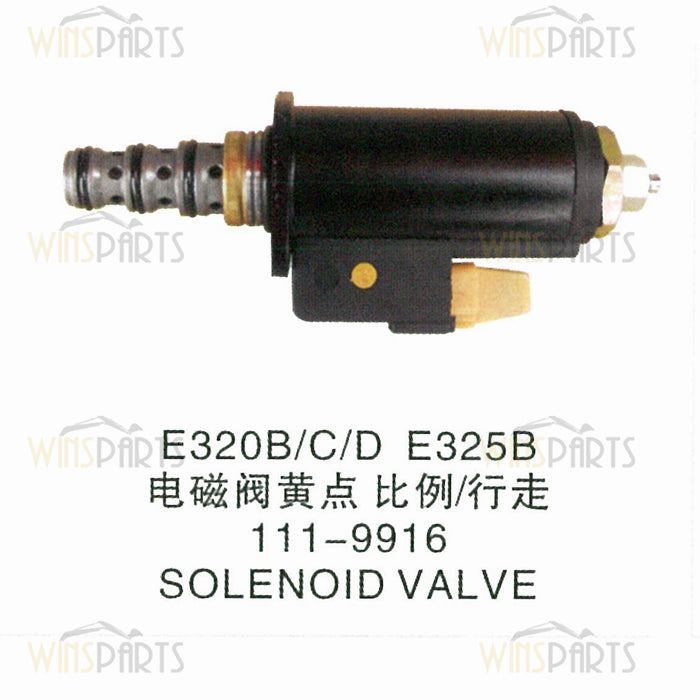

2. 111-9916 Y [2] VALVE GP-SOLENOID (PRESSURE REDUCING)
1. 126-6514 [1] SEAL-O-RING
2. 126-6515 [1] SEAL-O-RING
3. 126-6516 [1] SEAL-O-RING
4. 095-1586 [1] SEAL-O-RING
1. 095-1750 [1] SEAL-O-RING
2. 6V-8398 [1] SEAL-O-RING
3. 095-1751 [1] SEAL-O-RING
4. 095-1586 [1] SEAL-O-RING
5. 114-0623 M [1] NUT AS (M6X1-THD)
1. 107-6479 [7] PLUG
2. 165-9464 [6] SEAT
3. 185-0463 [1] SEAT
4. 095-1578 [7] SEAL-O-RING
5. 8T-6759 [4] PLUG-PIPE
6. 9M-5590 [7] BALL
The price is for reference only, please contact us by email and the actual quotation shall prevail.
