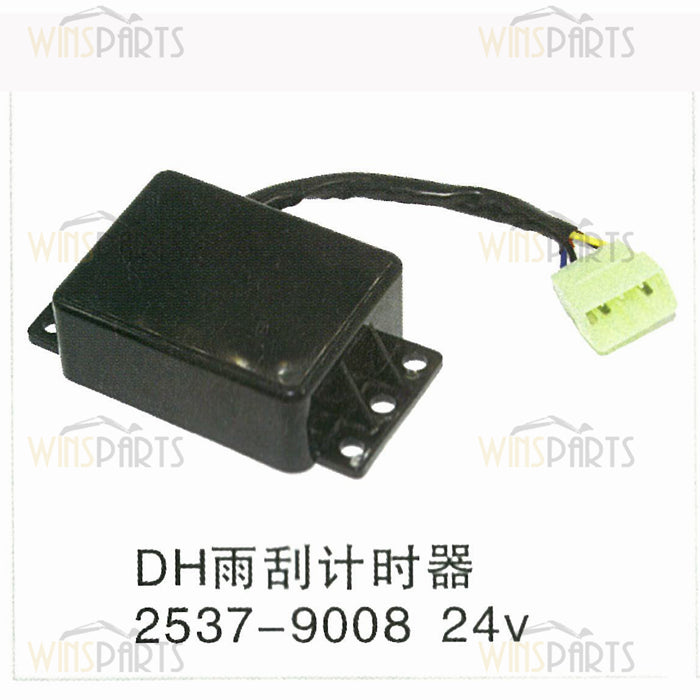

2537-9008 25379008 24V Wiper Motor Relays Switch with plug For KOMATSU SOLAR 155LC-V SOLAR 225LC-V 130LC-V 225LC-V Doosan Parts
500-00145A [1] ELECTRIC BOX ASS'Y Komatsu China
["SERIAL: 1001-1299", "SERIAL_NO: 1001~1299", "ICA: I", "REP_PNO: 500-00145B", "REP_QTY: 1", "desc: EQUIPMENT ELECTRIQUE"]
-. 500-00145B [1] ELECTRIC BOX ASS'Y Komatsu China
["SERIAL: 1300", "SERIAL_NO: 1300~", "desc: EQUIPMENT ELECTRIQUE"]
2. 543-00055A [1] CONTROLLER;e-EPOS Komatsu China
["desc: CONTROLEUR"]
3. S4012633 [4] NUT M10X1.5 Komatsu China
["desc: ECROU"]
4. S5102603 [4] WASHER;SPRING M10 Komatsu China
["desc: RONDELLE ELASTIQUE"]
5. S5010613 [4] WASHER;PLAIN M10 Komatsu China
["desc: RONDELLE PLATE"]
6. 543-00074 [1] CONTROLLER;THROTTLE Komatsu China
["desc: CONTROLEUR"]
7. S4012333 [4] NUT M6X1.0 Komatsu China
["desc: ECROU"]
8. S5102303 [4] WASHER;SPRING M6 Komatsu China
["desc: RONDELLE ELASTIQUE M6"]
9. S5010313 [4] WASHER;PLAIN M6 Komatsu China
["desc: RONDELLE"]
10. 2190-3231D26 [1] PLATE;NAME Komatsu China
["desc: PLAQUE D'IDENTIFICATION"]
11. 2543-9015 [1] STARTER;CONTROLLER Komatsu China
["desc: COMMANDE DEMARREUR"]
12. S3450943 [2] SCREW M6X1.0X10 Komatsu China
["desc: VIS"]
14. 2537-9008 [1] TIMER;WIPER Komatsu China
["desc: INTERRUPTEUR"]
17. 2531-1003 [1] CONVERTER;DC-DC (1) Komatsu China
["desc: CONVERTEUR"]
18. S3450953 [2] SCREW M6X1.0X12 Komatsu China
["desc: VIS"]
23. 2516-1116 [1] BUZZER;PILOT Komatsu China
["desc: VIBREUR ARRIERE"]
26. 2544-9033 [1] RELAY;HAED LAMP 24V 20/30A Komatsu China
["desc: RELAIS AVERTISSEUR"]
33. 2190-2037D19 [1] PLATE;NAME Komatsu China
["desc: PLAQUE SIGNALETIQUES"]
34. 2190-2037D20 [1] PLATE;NAME Komatsu China
["desc: PLAQUE SIGNALETIQUES"]
35. 2190-2037D56 [1] PLATE;NAME Komatsu China
["desc: PLAQUE D'IDENTIFICATION"]
36. 530-00207A [1] HARNESS;ELECTRIC BOX Komatsu China
["desc: HARNAIS"]
37. 530-00208A [1] HARNESS;CABIN Komatsu China
["SERIAL: 1001-1299", "SERIAL_NO: 1001~1299", "ICA: I", "REP_PNO: 530-00208B", "REP_QTY: 1", "desc: HARNAIS"]
37. 530-00208B [1] HARNESS;CABIN Komatsu China
["SERIAL: 1300", "SERIAL_NO: 1300~", "desc: HARNAIS"]
38. S3450823 [5] SCREW M5X0.8X10 Komatsu China
["desc: VIS"]
39. S5100203 [5] WASHER;SPRING M5 Komatsu China
["desc: RONDELLE ELASTIQUE"]
40. 124-00208D3 [2] CLIP d20/M8 Komatsu China
["desc: CLIP"]
41. 124-00208D5 [1] CLIP d32/M8 Komatsu China
["desc: CLIP"]
42. 124-00208D6 [2] CLIP d38/M8 Komatsu China
["desc: CLIP"]
43. S0508853 [2] BOLT M8X1.25X20 Komatsu China
["desc: BOULON A 6PANS"]
44. S4012533 [4] NUT M8X1.25 Komatsu China
["desc: ECROU"]
45. S5102503 [4] WASHER;SPRING M8 Komatsu China
["desc: RONDELLE ELASTIQUE"]
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
