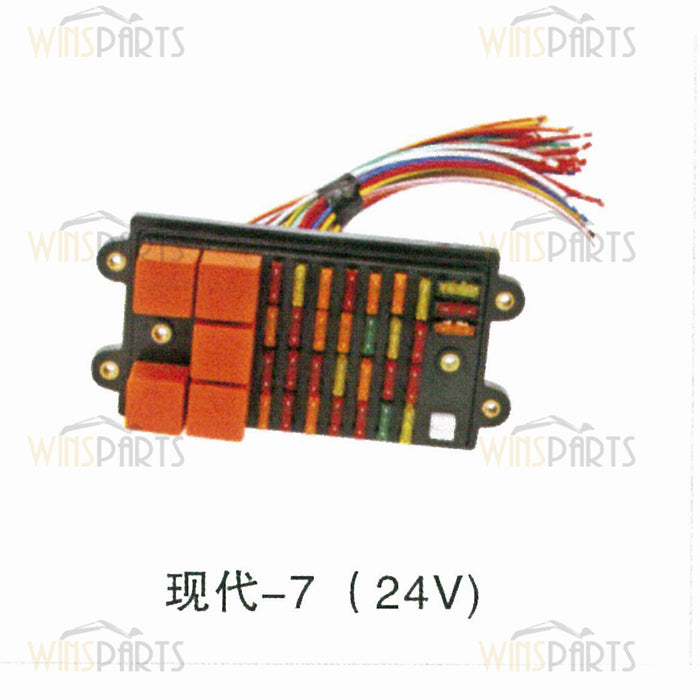

21N8-20061 21N8-20191BASE Relay Fuse Box Seat COVER with HARNESS Hyundai R110-7 R210-7h R225-7 R320LC-7 R265-7 Excavator Spare Parts
1. 21N8-20041 [1] BODY-FUSE BOX
1-1. 21N8-20110 [6] NUT-INSERT
2. 21N8-20120 [1] SEAL
3. 21N8-20190 [1] COVER ASSY-FUSE BOX
3. 21N8-20191 [1] COVER ASSY-FUSE BOX
3-1. 21N8-20061 [1] COVER-FUSE BOX
3-2. 21N4-00630 [1] DECAL-FUSE BOX
3-2. 21N4-00632 [1] DECAL-FUSE BOX
4. 21N8-20070 [2] KNOB ASSY
4-1. 21N8-20140 [1] INSERT
5. 21N8-20080 [2] PAD-RUBBER
6. 21N8-20150 [2] O-RING
7. 21N4-90010 [1] FUSE & BULB KIT NOT SHOWN
7-1. @ [2] FUSE-5A
7-2. @ [2] FUSE-10A
7-3. @ [2] FUSE-15A
7-4. @ [2] FUSE-20A
7-5. @ [2] FUSE-30A
7-6. @ [2] BULB-H4,70/75W
7-7. @ [1] BULB-H1,70W
7-8. @ [2] BULB-5W
7-9. @ [2] BULB-5W
7-10. @ [2] BULB-21W
7-11. @ [2] BULB-10W
7-12. @ [2] BULB-10W
7-13. @ [2] BULB-H3,70W
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
