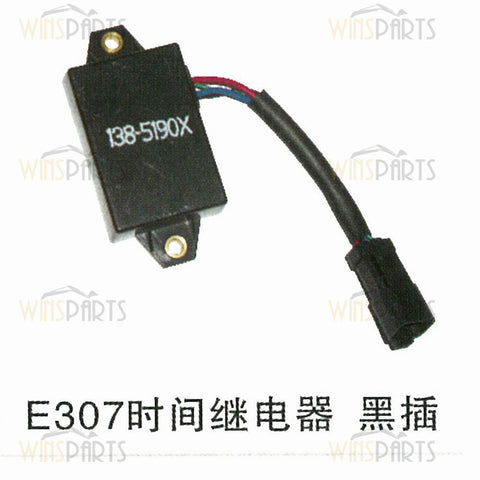

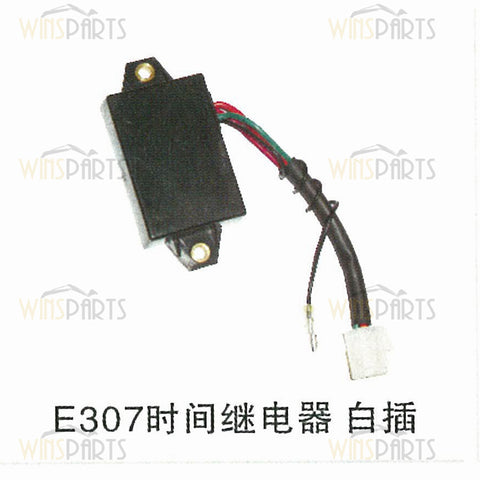

138-5190 1385190 CAT Timer Relays Switch CONTROL GP-ENGINE ELECTRONIC SHUTDOWN Caterpillar 307B 307C 308C 313B 315B Excavator Spare Parts
138-5190 1385190 CAT Timer Relays Switch CONTROL GP-ENGINE ELECTRONIC SHUTDOWN Caterpillar 307B 307C 308C 313B 315B Excavator Spare Parts
Parts for your 313B EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 095-0913 [1] CLIP
2. 8T-4199 M [1] BOLT (M8X1.25X12-MM)
3. 8T-4224 [1] WASHER-HARD (8.8X16X2-MM THK)
4. 096-6142 [1] COVER
5. 8T-6411 M [8] SCREW-MACHINE (M6X1X12-MM)
6. 9X-8256 [12] WASHER (6.6X12X2-MM THK)
7. 9W-1442 [8] FUSE (10-AMPERE)
8. 9W-1441 [4] FUSE (15-AMPERE)(MARKED Z)
9. 9W-1446 [2] FUSE (20-AMPERE)(MARKED Y)
10. 096-6145 [1] TOOL (FUSE PULLER)
11. 095-0728 M [2] SCREW-MACHINE (M4X0.7X12-MM)
12. 096-6166 [2] WASHER-HARD (4.5X9X1-MM THK)
13. 105-9983 [1] CLIP
14. 8T-4970 M [2] BOLT (M6X1X14-MM)
15. 161-3119 [1] BRACKET AS
6V-9632 M [5] NUT-WELD (M6X1-THD)
16. 161-3128 [6] RELAY (24-VOLT)
17. 099-1452 [1] TIMER AS-OFF DELAY
18. 105-9985 [1] CLIP
19. 3S-2093 [1] STRAP-CABLE
20. 122-5545 [1] RELAY
21. 095-0741 M [2] SCREW-MACHINE (M6X1-THD)
22. 138-5190 Y [1] CONTROL GP-ENGINE ELECTRONIC (ENGINE SHUTDOWN)
23. 121-1241 [1] KIT-SERVICE METER
114-2505 [1] FILM-IDENTIFICATION (SERVICE METER)
24. 9S-0174 [1] CIRCUIT BREAKER AS (60-AMPERE)
1H-3244 [2] LOCKWASHER
6V-8365 [2] SCREW-MACHINE (1/4-28X0.5-IN)
25. 6V-5645 [2] SCREW-MACHINE (10-32X0.87-IN)
M METRIC PART
Y SEPARATE ILLUSTRATION
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
