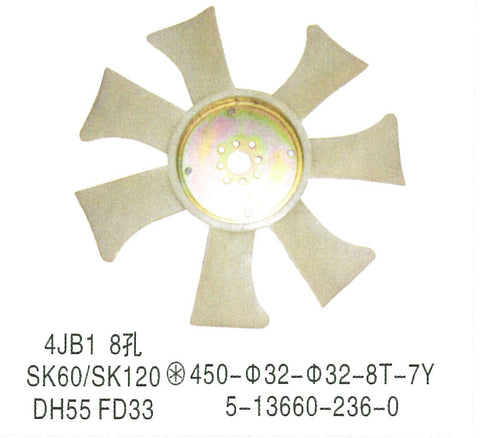

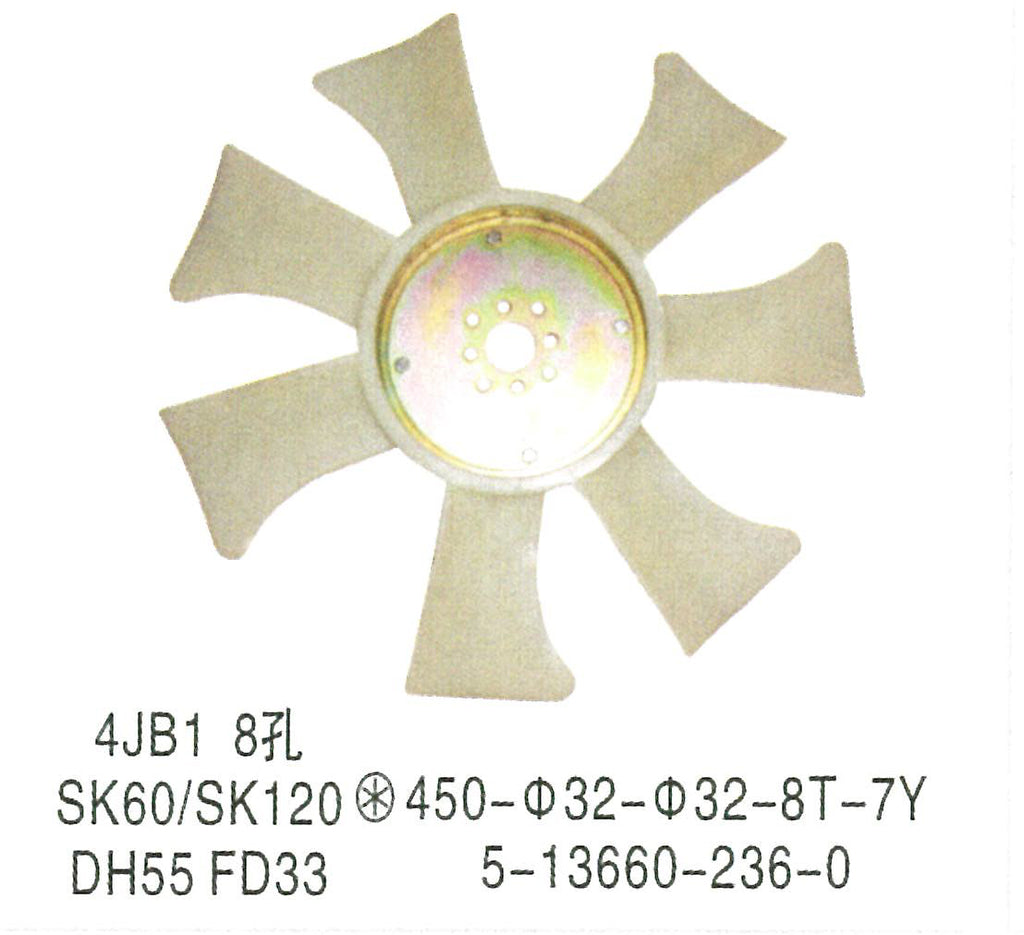

VI8970431880 5-13660236-0 VI5136602360 8-97043188-0 ISUZU 4JB1 ENGINE WATER Fan Blade COOLING FAN ASM Kobelco K903C SK120LC Excavator Parts
51 2 VI9019108220 BOLT, INLET PIPE
50 1 VI8941718980 PACKING, INLET PIPE
49-4 1 VI8944358780 PIPE, INLET, WATER
49-3 1 VI8944340710 PIPE, INLET, WATER
49-2 1 VI8941746440 PIPE, INLET, WATER
49-1 1 VI8944294270 PIPE, INLET, WATER
49 1 VI8941337443 PIPE, INLET, WATER
48 1 VI9095713160 PACKING, PLUG
47 2 VI9091505080 WASHER WASHER, SPR.
46 2 VI9091105080 HANGER NUT, OUTLET PIPE
45-2 1 VI1136710110 BELT, COOLING
45-1 1 VI8942568000 SPARE PART BELT, COOLING
45 1 VI8941537210 BELT, COOLING B=1151
43-6 4 VI9010656650 BOLT, FAN TO PULLEY
43-5 4 VI5090000840 BOLT, FAN TO PULLEY
43-4 4 VI5090001580 BOLT, FAN TO PULLEY
43-3 4 VI5090300430 BOLT, FAN TO PULLEY
43-2 4 VI5090300290 BOLT, FAN TO PULLEY
43-1 4 VI5090300370 BOLT, FAN TO PULLEY
43 4 VI5090300350 BOLT, FAN TO PULLEY L=55
42-3 2 VI9019108220 BOLT, SEMS ADJ.
42-2 1 VI9019108300 BOLT, SEMS ADJ.
42-1 1 VI9019108220 BOLT, SEMS ADJ.
42 2 VI5090300370 BOLT, SEMS ADJ. L=50
41-3 1 VI8944315610 PLATE, ADJ.
41-2 1 VI8944294290 PLATE, ADJ.
41-1 1 VI8944237460 STEEL PLATE PLATE, ADJ.
41 1 VI8941493580 PLATE, ADJ.
40-4 1 VI8944350880 FAN ASM., D=430, 6 BLADE
40-3 1 VI5136603150 FAN ASM., D=380, 6 BLADE
40-2 1 VI5891366051 FAN ASM., D=540, 7 BLADE
40-1 1 VI8944080790 FAN FAN ASM., D=380, 7 BLADE
40 1 VI5136603040 FAN ASM., D=400, 6 BLA0E
38-3 1 VI9136420770 SPACER, FAN T=26
38-2 1 VI9891364230 SPACER SPACER, FAN T=18
38-1 1 VI9136420790 SPACER, FAN T=59.5
38 1 VI9136420761 SPACER, FAN T=6
37 1 VI9136420780 SPACER SPACER, FAN T=32
36-4 1 VI8941466380 PULLEY, COOL ING
36-3 1 VI8944294280 PULLEY, COOLING
36-2 1 VI8944273600 PULLEY, COOLING
36-1 1 VI8941493590 PULLEY, COOLING
36 1 VI8941293780 PULLEY, COOLING
35-4 2 VI5090300200 BOLT, SEMS, HOUSING
35-3 2 VI9019108350 BOLT, SEMS, HOUSING
35-2 3 VI9019108300 BOLT, SEMS, HOUSING
35-1 2 VI9019108450 BOLT, SEMS, HOUSING
35 3 VI9019108350 BOLT, SEMS, HOUSING
34-1 1 VI8941712940 PACKING, HOUSING
34 1 VI8942582360 PACKING, HOUSING
33-1 2 VI9097150531 CLIP CLIP, BY PASS
33 2 VI9099156441 CLIP, BY PASS
32-3 1 VI8941701400 HOSE, RUBBER, BY PASS
32-2 1 VI8941096811 HOSE HOSE, RUBBER, BY PASS
32-1 1 VI8941097651 HOSE, RUBBER, BY PASS
32 1 VI8941293730 HOSE, RUBBER, BY PASS
31-1 1 VI9096610050 PLUG PLUG, THERMOMETER
31 1 VI5096050050 PLUG PLUG, OUTLET PIPE
30-3 1 VI8944288120 HOUSING HOUSING ASM., THERMOSTAT
30-2 1 VI8941701291 HOUSING ASM.,THERMOSTAT
30-1 1 VI8941258531 HOUSING ASM.,THERMOSTAT
30 1 VI8941293340 HOUSING ASM.,THERMOSTAT
29 1 VI8942149620 THERMOSTAT
28 2 VI9019708300 SPECIAL BOLT BOLT, SEMS, OUTLET PIPE
26 1 VI5096370130 PACKING, OUTLET PIPE
25-3 1 VI9137130380 OUTLET PIPE, WATER
25-2 1 VI8941525950 OUTLET PIPE, WATER
25-1 1 VI8942546011 PIPE OUTLET PIPE, WATER
25 1 VI9137130780 OUTLET PIPE, WATER
23 3 VI9091505080 WASHER WASHER, SPR.
22-1 3 VI9091104080 HANGER NUT
22 2 VI8942248290 NUT NUT
21 2 VI9041108220 STUD STUD, WATER PUMP
20-3 5 VI5090000840 BOLT, SEMS PUMP, L=55
20-2 1 VI9019108400 BOLT, SEMS PUMP, L=40
20-1 2 VI5090000840 BOLT, SEMS PUMP, L=55
20 2 VI5090002280 BOLT, SEMS PUMP, L=78
19 5 VI5090300370 BOLT, SEMS PUMP, L=50
18-2 1 VI8941780810 GASKET PACKING, PUMP TO F. PLATE
18-1 1 VI8944224290 PACKING, PUMP TO F. PLATE
18 1 VI8941293330 PACKING, PUMP TO F. PLATE
17 1 VI9092045170 PLUG
16-1 3 VI9030658180 SCREW
16 3 VI9030658160 SCREW.
15 1 VI9091505080 WASHER WASHER, SPR.
14 1 VI9098140141 SCREW,SET
13 1 VI8941116150 JOINT
12 1 VI9136390010 THROWER
11 1 VI5136420640 CENTER
10 1 VI8942260080 SEAL UNIT
8 1 VI8941105600 UNIT, BRG.
7-2 1 VI8942501630 IMPELLER
7-1 1 VI8941147270 IMPELLER
7 1 VI5136210130 IMPELLER
6-1 1 VI8941701280 PACKING
6 1 VI8941303200 PACKING
5-1 1 VI8941701270 COVER
5 1 VI8941303190 COVER
2-2 1 VI5878103830 REPAIR KIT, WATER PUMP
2-1 1 VI5878103820 REPAIR KIT, WATER PUMP
2 1 VI5878103810 REPAIR KIT, WATER PUMP
1-2 1 VI8941701250 PUMP ASM., WATER
1-1 1 VI8944237530 PUMP ASM., WATER
1 1 VI8941293320 PUMP ASM., WATER
40-5 1 VI5136602360 FAN FAN ASM., D=475, 6 BLADE
