EXCAVATOR 320D 320D FM 320D FM RR 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 321C 321D LCR 323D L 323D LN 323D SA
MOBILE HYD POWER UNIT 323D LN Caterpillar

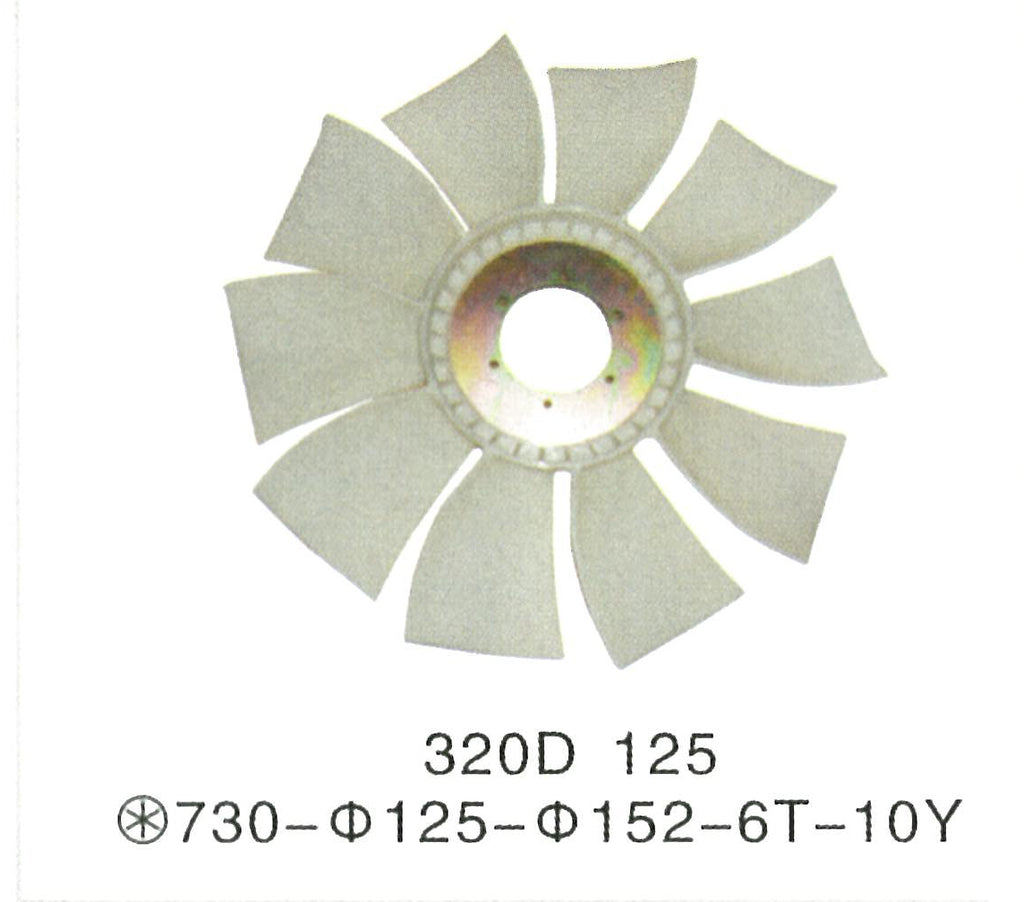

245-9344 2459344 245-9343 2459343 CAT C6.4 ENGINE Fan Blade FAN COOLING Caterpillar e320d 323D 320D 321D 321C Excavator Parts
230-2979: FAN GP-SUCTION
FAN GP-SUCTION
230-2979 FAN GP-SUCTION
S/N DHK1-UP
PART OF 305-4675 ENGINE AR
Type 2
AN ATTACHMENT
2302979 FAN GP-SUCTION Parts scheme
Parts for your 320D EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 3S-2093 C [8] STRAP-CABLE
2. 116-0118 C [1] CLIP
3. 245-9344 [1] FAN AS (10-BLADE, BOLT MTG DIA 152-MM)
4. 305-7671 C [1] PLATE AS
5. 305-7673 C [1] PLATE AS
7T-1099 [1] LINK
6. 324-0123 C [1] DRIVE AS-FAN
7. 132-5789 C [1] CLIP (LADDER)
8. 8T-4121 C [6] WASHER-HARD (11X21X2.5-MM THK)
9. 8T-4137 CM [6] BOLT (M10X1.5X20-MM)
10. 8T-4189 M [6] BOLT (M8X1.25X20-MM)
11. 8T-4224 C [6] WASHER-HARD (8.8X16X2-MM THK)
12. 8T-4908 CM [6] BOLT (M8X1.25X25-MM)
13. 214-1048 [6] SPACER (8.8X16X4-MM THK)
C CHANGE FROM PREVIOUS TYPE
M METRIC PART
#SEBP44540066
245-9313: FAN GP-SUCTION
FAN GP-SUCTION
245-9313 FAN GP-SUCTION
S/N DHK1-UP; CXY1-UP
PART OF 266-6339 ENGINE AR
2459313 FAN GP-SUCTION Parts scheme
Parts for your 320D EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 245-9343 [1] FAN AS (10-BLADE, BOLT MTG DIA 170-MM)
2. 8T-4189 M [6] BOLT (M8X1.25X20-MM)
3. 8T-4224 [6] WASHER-HARD (8.8X16X2-MM THK)
M METRIC PART
#SEBP44540067
266-6331: FAN GP-SUCTION
FAN GP-SUCTION
266-6331 FAN GP-SUCTION
PART OF 272-4707, 287-0100 ENGINE AR, 305-4783 ENGINE AR-COMPLETE
AN ATTACHMENT
2666331 FAN GP-SUCTION Parts scheme
Parts for your 320D EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 7X-0796 [10] LOCKWASHER (10.2X18.4X2.5-MM THK)
2. 8T-4195 M [6] BOLT (M10X1.5X30-MM)
3. 266-6332 [1] BRACKET
4. 266-6333 [1] COVER
5. 266-6336 [1] WASHER (13X49X8-MM THK)
6. 266-6334 [2] BEARING
7. 212-8596 [2] BUSHING
8. 266-6335 [1] SPACER (40.8X50.8X27-MM THK)
9. 266-6338 M [1] BOLT (M12X1.25X25-MM)
10. 8T-4182 M [4] BOLT (M10X1.5X45-MM)
M METRIC PART
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
