51 0 NSS NOT SERVICED SEPARATELY See Ref 40
50 0 NSS NOT SERVICED SEPARATELY See Ref 40
49 0 NSS NOT SERVICED SEPARATELY See Ref 42
47 1 LQ52S00025P1 POTENTIOMETER
42 2 ZM73C06016 BOLT M06x1.0x16mm (Incls. Washer)
40 2 ZM41C04012 BOLT M04x0.7x12mm (Incls. Washer & Lockwasher)
38 2 ZM66C06020 BOLT M06x1.0x20mm (Incls. Washer & Lockwasher)
36 2 YN17M01467P1 SCREW
35 4 YN17M01466P1 SCREW
34 2 YN17M01162D1 SCREW
32 1 YN17M01447P1 BRACKET
30 1 YN17M01445P1 BRACKET
25 1 YN17M01462P1 DECAL
24 1 YN17M01463P1 DECAL
22 2 YN17M01345P1 WASHER ID 20.5 x OD 30 x Th 3.0mm
21 1 YN01E01021P1 TERMINAL

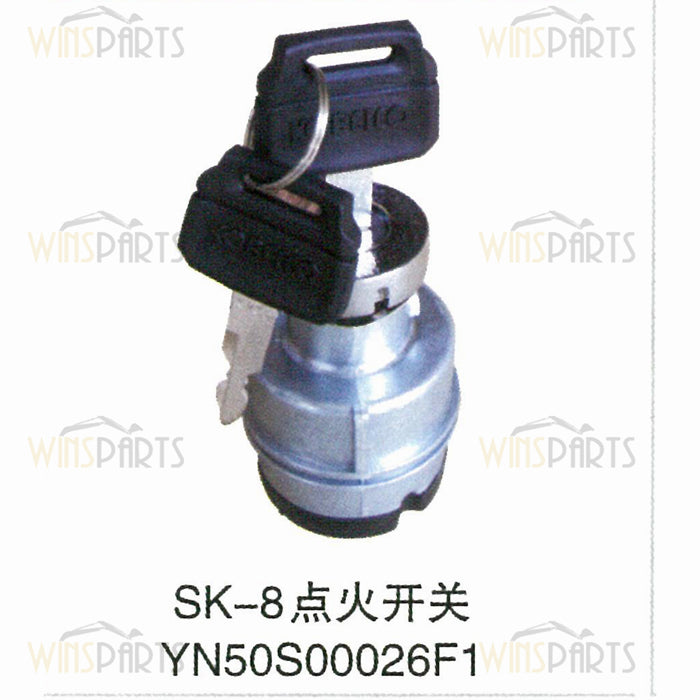

20 1 YN50S00026F1 IGNITION SWITCH
59 1 2432T6130 LABEL
54 4 ZW26X08000 WASHER Lock -- ID 08 x OD 15 x Th 2.0mm
53 4 2420N458D08025 SCREW
52 1 2456R445 LAMP (OIL TEMP ALARM)
51-6 4 2420Z1323D2 SCREW
51-5 4 2420R1091D3 SCREW
51-4 1 2414N5617 COVER
51-3 1 2414N5616 COVER
51-2 1 2416N7162 U-BRACKET
51-1 1 2489U276F5 GAUGE SEE FIGURE 05-018
51 1 24100J17421F1 INSTALLER JIG
50 4 ZW16X08000 WASHER ID 08 x OD 17 x Th 1.6mm, F3 ONLY
49 2 YN17M01037P1 PLATE , F1 ONLY
48 1 2414N5531 COVER , F3 ONLY
47 2 2418Z726D4 LOCK WASHER ID 04 x OD 7.6 x Th 1.0mm
46 2 2420Z1229D1 SCREW MACHINE
45 6 2420R584 FASTENER
44 1 2479R656 WIRE HARNESS , F3 ONLY
43 1 2479R2321 WIRE HARNESS , F3 ONLY
41 1 2432T6026 LABEL
39 1 NSS NOT SERVICED SEPARATELY SWITCH (ETHER)
38 4 ZW22X08000 LOCK WASHER ID 08 x OD 15.4 x Th 2.0mm, F3 ONLY
37 4 ZS18C08014 SCREW M08x1.25x14mm, F3 ONLY
36 4 ZW22X05000 LOCK WASHER ID 05 x OD 09.2 x Th 1.3mm, F3 ONLY
35 4 ZS31C05016 BOLT M05x0.8x16mm, F3 ONLY
34 1 2416P20426D2 BRACKET , F3 ONLY
33 1 2416P20426D1 BRACKET , F3 ONLY
32 1 2479U1626 KIT TUNER ASSY, F3 ONLY
31 2 YN17M01029P1 PLATE
30 8 ZW22X04000 LOCK WASHER ID 04 x OD 07.6 x Th 1.0mm
29 8 2420R1091D1 BOLT
28 2 YN54S00001F2 SPEAKER , F3 ONLY
27 1 YN17M01038P1 PLATE
25 1 2414N5536 COVER , F1 ONLY
24 1 YN22M01013P1 LABEL
23 2 2420R1088D2 SPECIAL BOLT M04x0.7x12mm (Incls. Washer & Lockwasher)
22 1 YN03M01210P1 PLATE
21 1 2447Z156D2 BUZZER
20 4 2420R1092D2 SCREW M05x0.8x16mm (Incls. Washer & Lockwasher)
19 9 2420R608D3 SCREW M06x1.0x16mm (Incls. Washer & Lockwasher)
18 1 2420R429D11 GROMMET
17 1 YN17M01014P1 BRACKET
16 1 2421R180F1 CIGARETTE LIGHTER
15 1 YN81S00001P1 SOCKET
14 1 YN77S01001P1 CONVERTER
13 5 YN17M01032P1 CAP
12 1 2479U1224F4 SWITCH (TRAVEL SPEED)
11 1 2479U1224F1 SWITCH (BACK BUZZER STOP)
10 1 2479U1191F1 SWITCH (BUZZER STOP)
9 1 2479U1190F7 SWITCH (AUTO ACCELE)
8 1 2479U1190F9 SWITCH (SWING FLASHER)
7 1 2479U1578F1 SWITCH (WORK LIGHT)
6 1 2479U1278F2 SWITCH (WIPER)
5 1 2479U1348F2 SWITCH (MODE SELECT)
4 1 2479U1190F13 SWITCH (HEAVY LIFT)
3-1 1 YN50S00002S001 KEY
2 1 2480R430 POTENTIOMETER
AR 24100J17011F3 PANEL ASSY, INSTRUMENT (WITH RADIO)
AR 24100J17011F1 PANEL ASSY, INSTRUMENT (WITH OUT RADIO)
3 1 YN50S00002F1 IGNITION SWITCH STARTER
