902 1 NA NOT SERVICED Name Plate
901 1 NA NOT SERVICED Name Plate
861 1 ZD12P02000 O-RING ID 19.80 ± 0.22 x OD 24mm
802 1 YN35V00018S802 NUT
801 1 NA NOT SERVICED Solenoid
363 1 YN35V00004S363 O-RING
362 1 YN35V00004S362 O-RING
361 1 YN35V00004S361 O-RING
326 1 NA NOT SERVICED Ring, Retaining
324 1 NA NOT SERVICED Spring
312 1 NA NOT SERVICED Sleeve
311 1 NA NOT SERVICED Spool

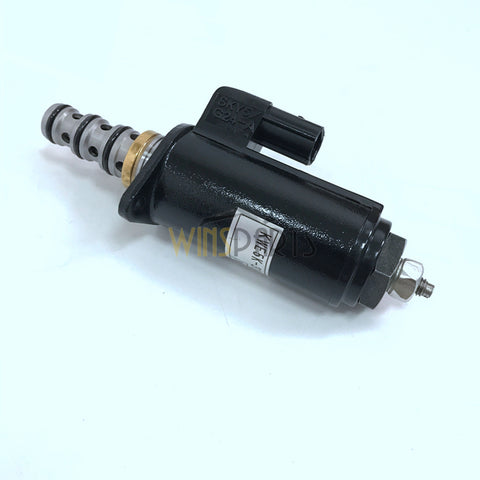

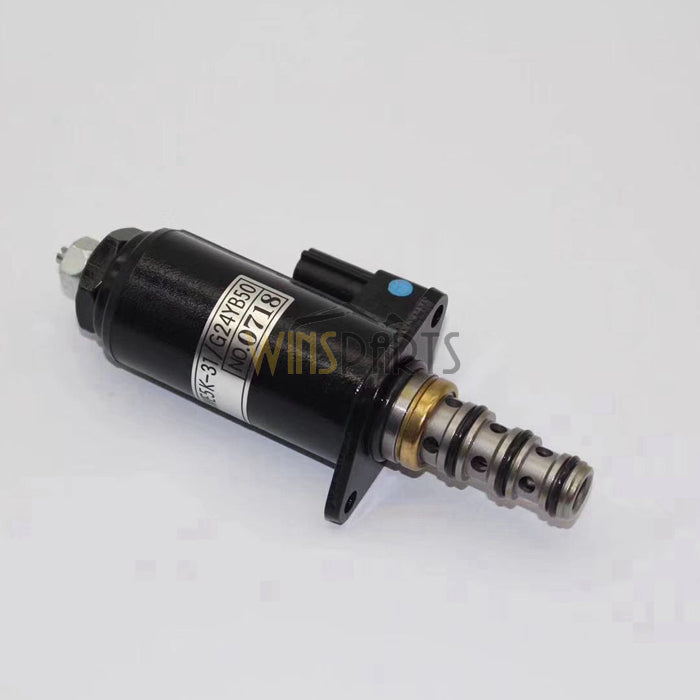

AR YN35V00051F1 VALVE Assembly, Solenoid
901 1 NA NOT SERVICED Name Plate
701 3 YN35V00050F1 VALVE Solenoid, See Figure 08-16-03
602 1 YN35V00049F1 VALVE Solenoid, See Figure 08-16-02
601 3 YN35V00048F1 VALVE Solenoid, See Figure 08-16-01
171 16 YN35V00047S171 SCREW M05x0.8mm
101 1 YN35V00047S101 CASE
AR YN35V00047F1 HYDRAULIC VALVE Assembly, Solenoid
702 1 YN35V00051F1 VALVE Solenoid, See Figure 08-16-04
