1. VOE20814604 [1] ECU EMS
VOE20577131 ECU
2. VOE3095161 Damping element
VOE20582958 ECU S/N 12622 S/N 12624 -
VOE3095161 Damping element
3. VOE946470 [4] Flange screw
VOE13948217 Screw
4. VOE15107105 [1] Wiring harness
VOE11423644 Cable harness
5. VOE20783926 [1] Cover
6. VOE20409005 Bracket
7. VOE13949997 [1] Clamp
8. VOE13945444 [1] Screw
9. VOE13945408 [0000] Nut
10. VOE28429850 [5] Retainer
11. VOE3985509 [2] Bracket
12. VOE983472 [REQ] Cable tie
13. VOE4881440 [REQ] Cable tie
14. VOE1578046 [2] Retainer
15. VOE969405 [2] Six point socket screw

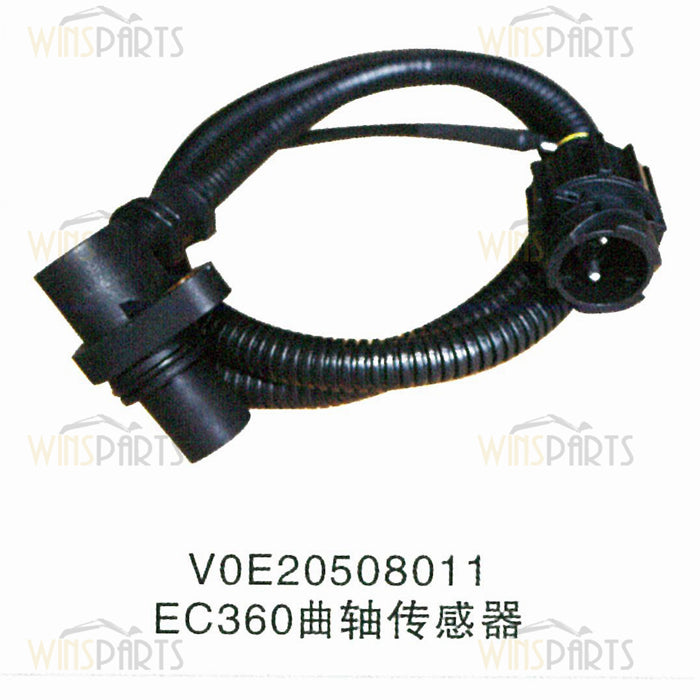

16. VOE20508011 [2] Sensor SE2701, SE2703
17. VOE1677894 [1] Shim
18. VOE940326 [2] Hex. socket screw
19. VOE20576614 [1] Sensor SE2606
20. VOE975660 [1] O-ring
21. VOE946440 [1] Flange screw
22. VOE20700060 [1] Sensor SE2507, SE2508
23. VOE975632 [1] O-ring
24. VOE13955272 [2] Screw
25. VOE20886108 [2] Sensor SE2203, SE2301
26. VOE968559 [2] O-ring
27. VOE20796744 [1] Pressure sensor SE2509
28. VOE968559 [1] O-ring
29. VOE21042447 [1] Oil level sensor SE2202, SE2205
30. VOE3173718 [0000] Bracket
31. VOE13965535 [1] Bracket
32. VOE13949746 [2] Clamp
33. VOE13945408 [2] Nut
34. VOE946440 [2] Flange screw
35. VOE965576 [1] Bracket
36. VOE13949746 [1] Clamp
37. VOE947107 [1] Flange screw
38. VOE13949746 [1] Clamp
39. VOE13945408 [1] Nut
40. VOE946329 [1] Flange screw
41. VOE13949746 [5] Clamp
42. VOE946440 [5] Flange screw
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
