S1138 1 VHS1138E0010 ADAPTER Flywheel Housing Speed Sensor, Years: 06/01/2002-06/01/2002
9659B 1 VH965910111A WASHER Soft
9659A 1 VH965914103A WASHER Soft
9644A 1 VH964403136A O-RING
9412-10252 1 VH941210252A BOLT W/Washer
9280-14350 1 VH928014350A LOCK Washer
9262-10360 1 VH926210360A WASHER Plain
9260-14270 2 VH926014270A WASHER Plain
9241-14147 1 VH924114147A NUT
9241-10107 1 VH924110107A NUT
9240-08087 5 VH924008087A NUT
9190-06121 1 VH919006121A BOLT
9189A 1 VH918908135A BOLT
9069A 1 VH906914127A BOLT Flange
9068-12700 2 VH906812700A BOLT Flange
9068-10350 1 VH906810350A BOLT Flange
9068-08300 2 VH906808300A BOLT Flange, Years: 06/01/2002-06/01/2002
9068-08250 1 VH906808250A BOLT Flange
9068-08200 1 VH906808200A BOLT Flange
9068-08160 7 VH906808160A BOLT Flange
9068-08160 2 VH906808160A BOLT Flange
9061-06140 4 VH906106140A BOLT
9011-64401 1 VH901164401A BOLT
900149 1 VH900149375A BELT V Set
900124 1 VH900124171A BOLT

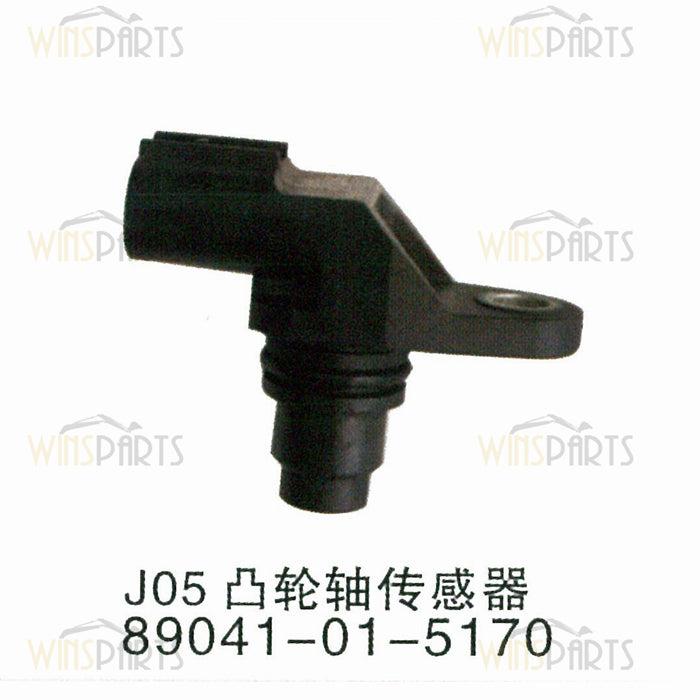

89411 1 VH894111280A SENSOR Assy, Speed
89410A 1 VH894101290A SENSOR Assy, Speed, Years: 06/01/2002-06/01/2002
89390 1 VH893901080A SENSOR Assy, Pressure
83530 1 VH835301471A SWITCH Assy, Oil Press
83420 1 VH834201250A SENSOR Assy, Water Temp Sender
82715 1 VH82715E0C60 BRACKET Wiring Harness Clamp
1 VH82702E0200 BRACKET Sub Assy, Start Year: 06/01/2003
82702B 1 VH120173550 Sub Assy, Years: 06/01/2002-06/01/2002
82702A 1 VH82702E0240 BRACKET Sub Assy, Wiring Harness
82702 1 VH82702E0230 BRACKET Sub Assy, Wiring Harness
82560 1 VH825601200A ELEC CONNECTOR Assy
82121B 1 VH82121E0D60 WIRE Engine
1 VH82121E0G60 WIRE Eng, Start Year: 06/01/2010
1 VH82121E0311 Eng, Years: 06/01/2003-06/01/2009
82121A 1 VH820649540A HARNESS Sub Assy, Eng, Years: 06/01/2002-06/01/2002
1 VH82121E0842 WIRE Sub Assy,Eng, Start Year: 06/01/2003
82121 1 VH820649530A HARNESS Harness Sub Assy, Eng, Years: 06/01/2002-06/01/2002
82064C 1 VH820646621A HARNESS Sub Assy,Eng
82051 1 VH82051E0010 HARNESS Sub Assy, Fuel Control
28100 1 VH281002894A STARTER MOTOR Assy (24V-50A) (See Fig No. 19-05)
27040 1 VH270402192A ALTERNATOR Assy, W/Reg (24V-50A) (See Fig No. 19-04)
19113 4 VH191131050A INSULATOR Glow Plug
19112 3 VH191121201A WIRE Glow Plug Ground
19110 4 VH191101261A SPARK PLUG Assy, Glow
15492 1 VH154929520A HOLDER Clip
12514 1 VH12514E0020 BAR Alternator Belt Adjusting
12511A 1 VH125114170A BRACKET Gen
12511 1 VH125113580A BRACKET Gen
12281 1 VH12281E0030 HANGER Engine
12017G 1 VH120172600A BRACKET Sub Assy
12017D 1 VH120173531A BRACKET Sub Assy
12017C 1 VH120173520A BRACKET Assy
12017 1 VH120172220A BRACKET Assy
89410 1 VH894101570A SENSOR Assy, Speed
The price is for reference only, please contact us by email and the actual quotation shall prevail.
