B1 2 ZE72X06000 PLUG 3/8" PF, (Incls. O-Ring ZD12P01400)
1 HH25R06006G1 HYD CONNECTOR
1 YN21V00005F2 VALVE
A23 1 2444Z2891 HYD CONNECTOR (Incls. O-Ring ZD12P01400)
A22 2 ZH42X06000 ELBOW 45° -- (Incls. O-Ring 237-6006)
A21 1 YN06H01045P1 HYD CONNECTOR ELbow, 45° -- (2) 1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100)
A20 1 2444T3402 HYD CONNECTOR Tee -- (Incls. O-Ring 237-6004)
A19 1 YN06H01045P1 HYD CONNECTOR
A18 2 HH55Q06006G1 TEE 3/8" PF (Incls. O-Ring ZD12P01400)
A17 2 2444Z2336 HYD CONNECTOR Tee -- 1/4"x3/8"x3/8"PF (Incls. O-Ring ZD12P01100)
A16 2 2444Z3711 HYD CONNECTOR (Incls. O-Ring ZD12P01400)
A14 4 ZH32X06000 HYD CONNECTOR Elbow, 90° -- (Incls. O-Ring ZD12P01400)
A13 3 ZH32X04006 ELBOW 90° -- 1/4"x3/8"PF (Incls. O-Ring 237-6006 )
A12 3 ZH32X04000 HYD CONNECTOR Elbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004)
A11 7 ZH22X06000 HYD CONNECTOR (Incls. O-Ring ZD12P01400)
A10 2 ZH22X04006 HYD CONNECTOR (Incls. O-Ring 237-6006)
A9 3 ZH22X04000 HYD CONNECTOR 1/4"PFx36mm Long (Incls. O-Ring ZD12P01100)
A8-2 1 ZD12P01100 O-RING Part of LC52S00019P1), ID 10.80 ± 0.18 x OD 15mm
A7 2 YN21V00005F1 VALVE Check, (Incls. O-Ring ZD12P01400)
A6 1 2420R349D120 HOSE 1200.00 mm
A5 1 2420R349D125 HOSE 1250.00 mm
A4 1 2420R537D038 HOSE 380mm Long (14-31/32 in)
A3 1 2420R349D055 HOSE 550.00 mm, 550mm Long (21-21/32 in)
A2 1 2420R349D028 HOSE 280.00 mm
A1 1 2420R537D030 HOSE 300.00 mm

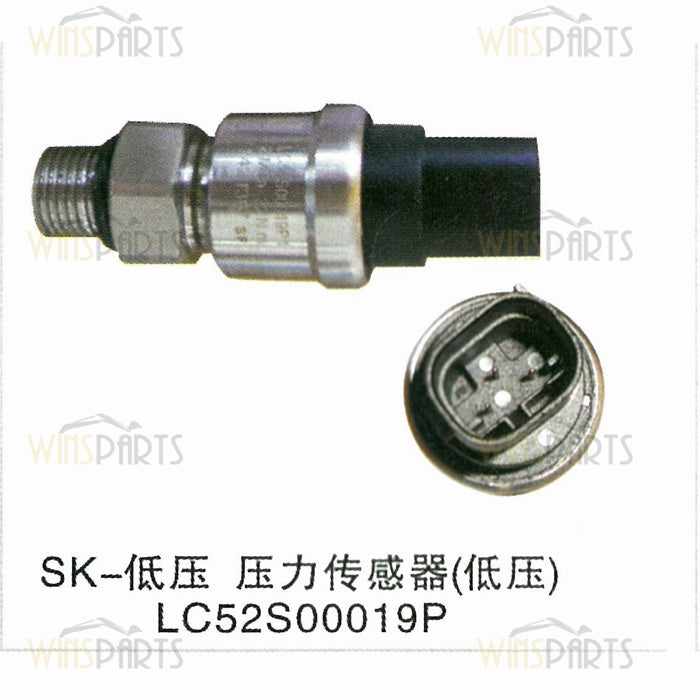

A8 1 LC52S00019P1 SENSOR Pressure (Low Pressure) (Incls. O-Ring ZD12P01100)
