001. 8972621660 [1] CAMSHAFT
004. 8943958822 [8] VALVE; INL
005. 8972098763 [8] VALVE; EXH
007. 8943964390 [1] BOLT; CM/SHF GEAR M14X40
008. 9098518503 [1] WASHER; CM/SHF GEAR ID=14.5
009. 8973244720 [1] GEAR; CM/SHF
012. 8943994870 [1] KEY; CAM GEAR SET
037. 8973569390 [10] METAL; CM/SHF A
037. 8973861890 [10] METAL; CM/SHF
053. 8973064262 [1] SHAFT; ROCKER ARM A
053. 8973899210 [1] SHAFT; ROCKER ARM
057. 8943931310 [3] BOLT; ROCKER ARM BRKT M10X62 FLANGE
061. 8943948030 [8] SCREW; ADJ,BRIDGE M8X21
062. 9098445740 [8] NUT; ADJ SCREW LK BRIDGE M8 FLANGE
063. 8943920023 [8] BRIDGE
065. 5125650040 [32] COLLAR; SPLIT
068(A). 8943958840 [8] SPRING; VLV INLET MARK BLUE
068(B). 8943958851 [8] SPRING; VLV EXH MARK WHITE
071(A). 8943907832 [16] SEAT; SPR OD=32.8 T=12.75
071(B). 8943914680 [16] SEAT; SPR ID=14.3 T=1.0
072. 8971203070 [16] SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG & HEAD)
072. 8973767200 [16] SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG & HEAD)
078(A). 8973064213 [4] ARM; ROCKER INLET
078(B). 8973064243 [4] ARM; ROCKER EXH
081. 8943950240 [8] SCREW; ADJ,ROCKER ARM M10 L=32
082. 8943960152 [8] CAP; ROCKER SHAFT
083. 9091114100 [8] NUT; ADJ SCREW,LK A M10
083. 0911115100 [8] NUT; ADJ SCREW,LK M10
087. 0280808400 [2] BOLT; ROCKER SHAFT A M8X40 FLANGE
087. 0280508400 [2] BOLT; ROCKER SHAFT M8X40 FLANGE
095. 8943929990 [4] SPRING; ROCKER SHAFT
096. 8973344140 [3] BRACKET; ROCKER ARM SHAFT
101(A). 8943722211 [1] BOLT; THRUST COLLAR M14X36.5
101(B). 0280608160 [3] BOLT; THRUST COLLAR M8X16 FLANGE
101(C). 0239514250 [1] BOLT; THRUST COLLAR M14X25
102(A). 8980238810 [1] COVER; IDLE GEAR A
102(A). 8943346811 [1] COVER; IDLE GEAR
102(B). 8970968260 [1] COVER; IDLE GEAR OD=51
105. 9916664600 [1] BOLT; IDLE GEAR SHAFT A M14X60
105. 0169564600 [1] BOLT; IDLE GEAR SHAFT M14X60
107(A). 8973500210 [1] SHAFT; IDLE GEAR
107(B). 8971863981 [1] SHAFT; IDLE GEAR
107(C). 8980234501 [1] SHAFT; IDLE GEAR
107(C). 8980410990 [1] SHAFT; IDLE GEAR
107(D). 8971043800 [1] SHAFT; IDLE GEAR C
107(D). 8980607800 [1] SHAFT; IDLE GEAR
111(A). 8972097282 [3] COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46
111(B). 8980236160 [1] COLLAR; THRUST,IDLE GEAR ID=14.3 OD=53
112(A). 8976005861 [1] GEAR; IDLE T=72-60-30
112(B). 8980234521 [1] GEAR; IDLE T=34
112(B). 8980410640 [1] GEAR; IDLE T=34
112(C). 8976005900 [1] GEAR; IDLE C T=61
112(C). 8976067670 [1] GEAR; IDLE T=61
112(D). 8973004480 [1] GEAR; IDLE A T=41
112(D). 8976069290 [1] GEAR; IDLE T=41
117. 8971131670 [1] BOLT; FLANGE M14X65
203. 8980410890 [2] WASHER; THRUST
206(A). 1125280280 [1] BUSHING; IDLE GEAR
206(B). 8943693400 [1] BUSHING; IDLE GEAR A
206(B). 8976067680 [1] BUSHING; IDLE GEAR
206(C). 8971126080 [1] BUSHING; IDLE GEAR C
206(C). 8976067700 [1] BUSHING; IDLE GEAR
223. 1096234230 [1] GASKET; COVER,IDLE GEAR ID=105.6<BR>ALSO INCLUDED IN GASKET SET(ENGINE)
224. 0280508160 [2] BOLT; COVER M8X16 FLANGE

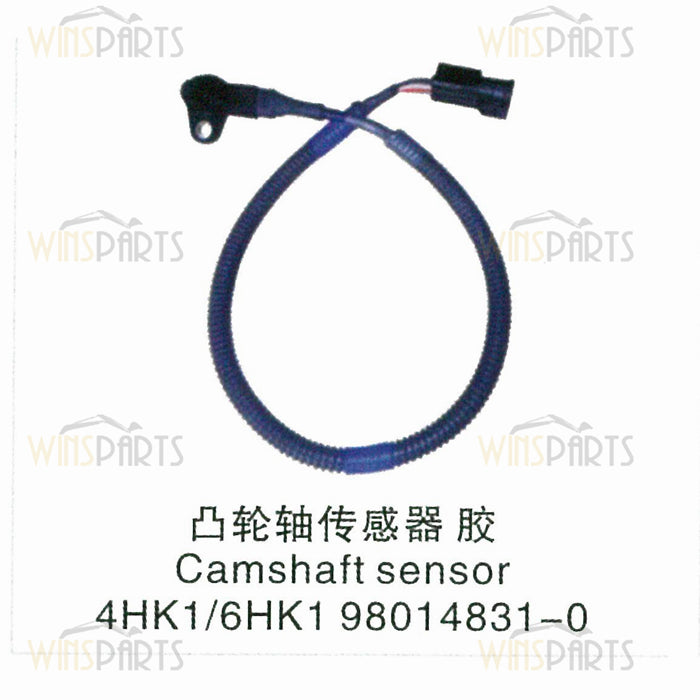

267(A). 8980148310 [1] SENSOR; CAM ANGLE
269. 0280506120 [1] BOLT; SENSOR M6X12 FLANGE
350. 8973871940 [1] GASKET; SENSOR, CAM ANGLE ALSO INCLUDED IN GASKET SET(ENGINE)
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
