1. 01010-81020 [2] Bolt Komatsu 0.161 kg.
["SN: 60001-UP"] analogs:["801014093", "0101051020", "801015108"]
2. 01643-31032 [2] Washer Komatsu 0.054 kg.
["SN: 60001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
3. 20Y-43-41121 [1] Cover Komatsu 0.23 kg.
["SN: 60001-UP"]
6. 20Y-43-41361 [4] Collar Komatsu China
["SN: 60001-UP"]
7. 203-43-51620 [2] Spring Komatsu 0.01 kg.
["SN: 60001-UP"]
22U-43-21350 [2] Cover Assembly Komatsu 0.03 kg.
["SN: 60001-UP"] |$7.
9. 22U-43-21360 [1] Seal Komatsu 0.5 kg.
["SN: 60001-UP"]
10. 20Y-43-41111 [2] Lever Komatsu China
["SN: 60001-UP"]
11. 01010-D1045 [4] Bolt Komatsu 0.039 kg.
["SN: 60001-UP"] analogs:["0101051045", "0101081045"]
12. 01643-71032 [4] Washer Komatsu 0.054 kg.
["SN: 60001-UP"] analogs:["0164331032", "802150510", "0164331030", "0164381032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002"]
13. 01010-81030 [4] Bolt Komatsu OEM 0.03 kg.
["SN: 60001-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"]
15. 22U-43-21111 [1] Pedal Komatsu 0.32 kg.
["SN: 60001-UP"]
16. 22U-43-21121 [1] Pedal Komatsu 0.35 kg.
["SN: 60001-UP"]
17. 22U-43-21131 [2] Lever Komatsu China
["SN: 60001-UP"] analogs:["22U4321131XC"]
18. 20Y-43-21231 [1] Knob Komatsu 0.16 kg.
["SN: 60001-UP"]
19. 20Y-43-21241 [1] Knob Komatsu 0.16 kg.
["SN: 60001-UP"]
20. 01023-20416 [2] Screw Komatsu 0.003 kg.
["SN: 60001-UP"]
21. 20Y-62-18910 [1] Plug Komatsu 0.1 kg.
["SN: 60001-UP"]
22. 07000-12018 [2] O-ring Komatsu China 0.001 kg.
["SN: 60001-UP"] analogs:["KB9511301800", "YM24311000180", "0700002018", "2083811590"]
23. 11Y-62-12160 [1] Elbow Komatsu 0.11 kg.
["SN: 60001-UP"]
24. 02896-11008 [1] O-ring Komatsu China 0.12 kg.
["SN: 60001-UP"]
25. 07002-11423 [1] O-ring Komatsu China 0.001 kg.
["SN: 60001-UP"] analogs:["0700201423"]
26. 20Y-62-18890 [4] Bolt, Joint Komatsu 0.038 kg.
["SN: 60001-UP"]
27. 07000-12015 [8] O-ring Komatsu China 0.001 kg.
["SN: 60001-UP"] analogs:["0700002015"]
28. 20Y-62-41390 [2] Adapter Komatsu 0.15 kg.
["SN: 60001-UP"]

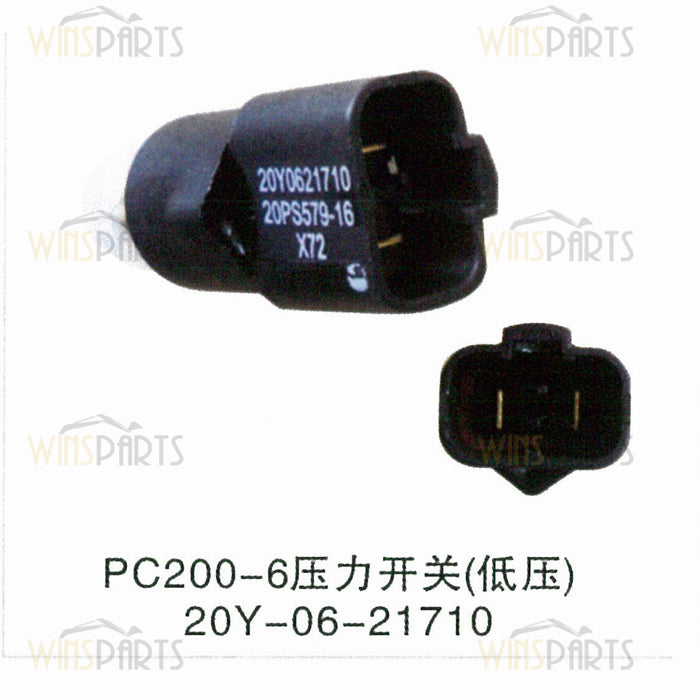

30. 20Y-06-21710 [1] Switch Komatsu OEM 0.09 kg.
["SN: 60001-UP"]
31. 206-06-61130 [1] Switch, Pressure Komatsu OEM 0.04 kg.
["SN: 60001-UP"] analogs:["2060661330"]
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
