1. 8T-0075 [1] CONNECTOR
2. 3J-1907 [3] SEAL-O-RING (11.89MM ID)
3. 6V-8397 [1] SEAL-O-RING (9.27MM ID)
4. 4I-3941 [1] FITTING AS
6V-8553 [1] NUT-FACE SEAL
5. 9S-4191 [1] PLUG-O-RING (9/16-18 THD)

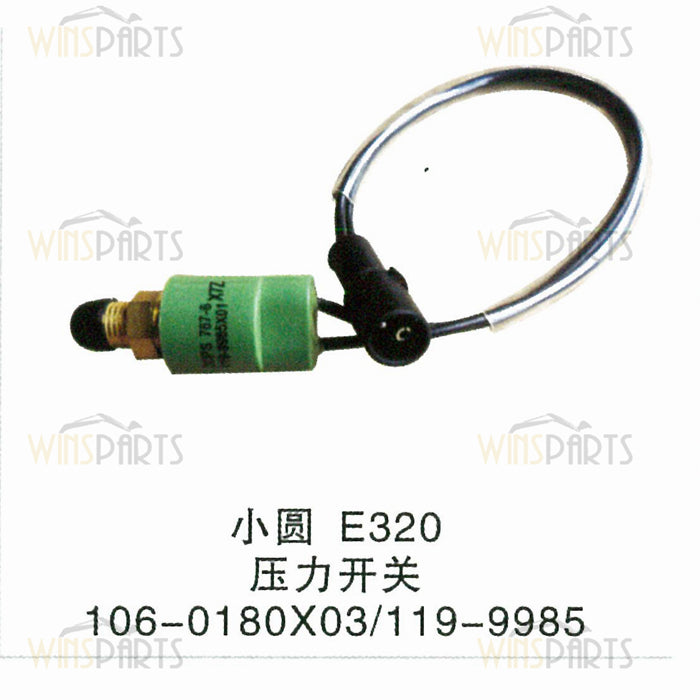

6. 119-9985 [1] SWITCH AS-PRESSURE
7N-9737 [1] HOUSING-PLUG (1 PIN,1 SOCKET)
7. 3J-7354 [1] SEAL-O-RING (8.92MM ID)
8. 096-4670 [1] CAP
9. 2R-6806 [1] CONNECTOR (9/16-18 STR THD)
1. 123-2146 Y [1] VALVE GP-PILOT (RH)
2. 123-2147 Y [1] VALVE GP-PILOT (LH)
3. 6V-7357 M [6] BOLT (M6X1X25-MM)
4. 9X-8256 [6] WASHER (6.6X12X2-MM THK)
5. 6V-8636 [28] CONNECTOR
6. 3J-1907 [50] SEAL-O-RING
7. 6V-8397 [69] SEAL-O-RING
8. 8T-4137 M [2] BOLT (M10X1.5X20-MM)
9. 133-5813 [4] BAND-MARKER (GRAY, P)
10. 113-6882 I [4] HOSE AS
11. 106-0180 [1] SWITCH AS-PRESSURE (PILOT HYD OIL)
102-8802 [1] KIT-RECEPTACLE (2-PIN)
3E-3365 [1] WEDGE-RECEPTACLE LOCK (2-PIN)
9W-0852 [2] PIN-CONNECTOR (14-GA TO 16-GA)
12. 6V-9836 [1] TEE-SWIVEL
13. 124-0986 [1] GROMMET (150-MM ID)
14. 4I-0815 I [3] HOSE AS
15. 123-2510 Y [1] VALVE GP-FLOW CONTROL
16. 8T-4198 M [4] BOLT (M10X1.5X100-MM)
17. 4I-3941 [2] FITTING AS
6V-8553 [1] NUT (11/16-16-THD)
18. 106-0179 [2] SWITCH AS-PRESSURE (PILOT HYD OIL)
(EACH INCLUDES)
102-8807 [1] KIT-CONNECTING PLUG (2-PIN)
3E-3362 [1] WEDGE-PLUG LOCK (2-PIN)
9W-0844 [2] SOCKET-CONNECTOR (14-GA TO 16-GA)
19. 102-1174 [1] GUARD
20. 096-0061 [4] STRAP-CABLE
21. 107-7058 Y [1] VALVE GP-SELECTOR
22. 8T-5005 M [2] BOLT (M10X1.5X70-MM)
23. 8T-4121 [8] WASHER-HARD (11X21X2.5-MM THK)
24. 4I-3981 I [1] HOSE AS
25. 4I-6003 I [3] HOSE AS
26. 4I-0797 I [1] HOSE AS
27. 113-6884 I [4] HOSE AS
28. 7I-8252 I [1] HOSE AS
29. 113-6700 [1] FITTING-O-RING
30. 5I-8708 I [1] HOSE AS
31. 113-6701 [1] SUPPORT
32. 8T-4136 M [4] BOLT (M10X1.5X25-MM)
33. 6V-9168 [8] NUT (11/16-16-THD)
34. 099-7241 [8] WASHER-HARD (19X34X3-MM THK)
35. 6V-8994 [8] UNION (STRAIGHT)
36. 107-6631 [3] CONNECTOR-FILTER
37. 6V-8781 [4] TEE
38. 6V-8724 [11] ELBOW
39. 5I-4371 [1] STOPPER
40. 104-8821 I [1] HOSE AS
41. 4I-3988 I [1] HOSE AS
42. 9S-4191 [2] PLUG (9/16-18-THD)
43. 4I-1634 I [1] HOSE AS
44. 7Y-4193 I [1] HOSE AS
45. 108-7572 I [1] HOSE AS
46. 124-1104 I [2] HOSE AS
47. 113-6887 I [1] HOSE AS
48. 113-6885 I [1] HOSE AS
49. 123-2148 Y [1] VALVE GP-PILOT
50. 115-8645 [1] GUARD
51. 5I-4396 I [1] HOSE AS
52. 4I-1760 I [1] HOSE AS
53. 7Y-4390 I [1] HOSE AS
54. 4I-9527 [6] BAND-MARKER (GREEN, R3)
55. 4I-9528 [4] BAND-MARKER (PURPLE, R4)
56. 4I-9526 [8] BAND-MARKER (WHITE, R2)
57. 4I-9521 [10] BAND-MARKER (RED, L1)
58. 4I-9522 [8] BAND-MARKER (YELLOW, L2)
59. 4I-9523 [4] BAND-MARKER (BLUE, L3)
60. 4I-9524 [4] BAND-MARKER (BROWN, L4)
61. 4I-9525 [10] BAND-MARKER (ORANGE, R1)
62. 7K-1181 [20] STRAP-CABLE
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
