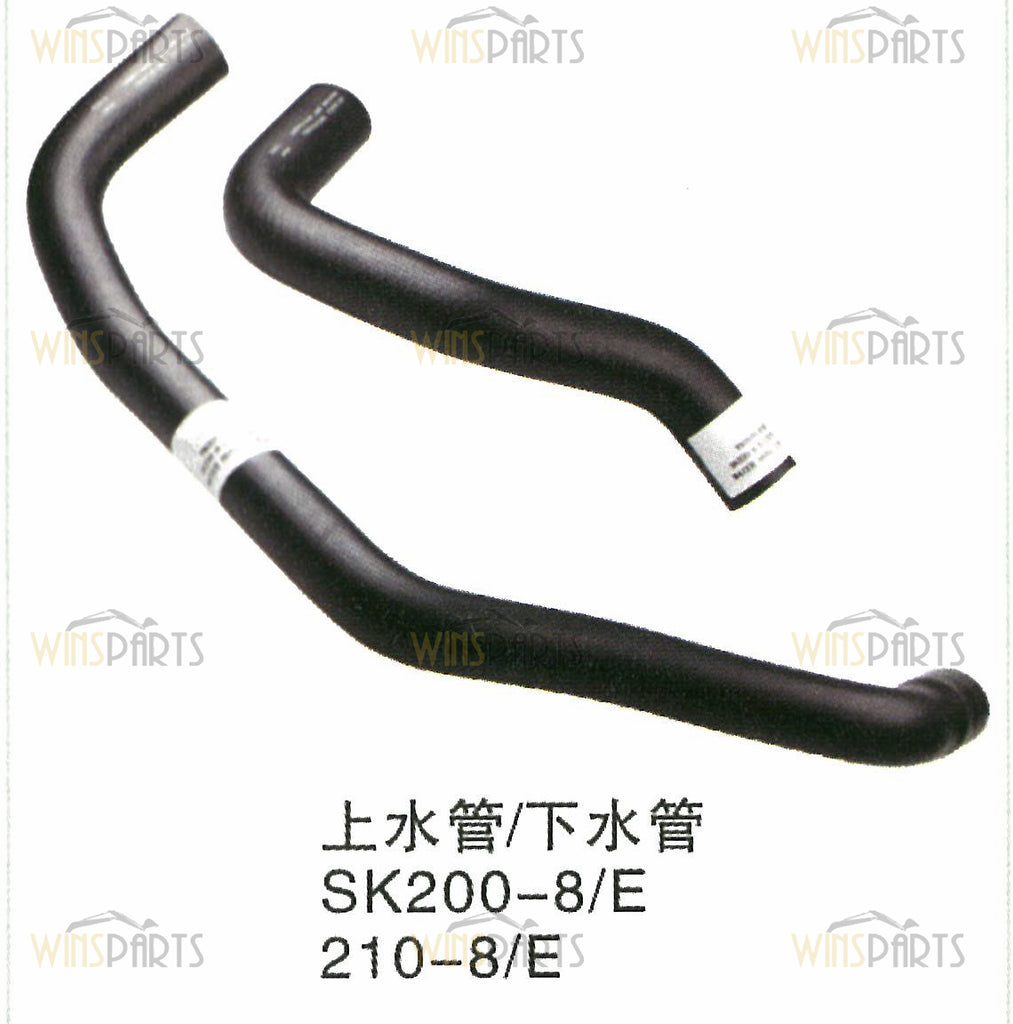

YN05P01495P1 HOSE Kobelco parts 200-8, SK210DLC-8, SK210D-8, SK210LC-8 HOSE
34 2 ZW16H10000 WASHER , ASN YN11-47048
33 1 YB05P01159P1 PLATE , ASN YN11-47048
33 1 YB05P01159P1 PLATE , ASN YQ11-06179
34 2 ZW16H10000 WASHER , ASN YQ11-06179
32 1 PH05P01088D6 CLIP
31 3 ZC16X07000 CLIP
30 6 ZC16X05800 CLIP
4 ZW16P08000 WASHER , ASN YN11-47048
4 ZW16P08000 WASHER , ASN YQ11-06179
29 1 ZC16X05000 CLIP
28 2 ZM73C10035 BOLT Sems
24 2 ZW16P08000 WASHER , BTW YN11-45001 & YN11-47047
24 2 ZW16P08000 WASHER , BTW YQ11-06001 & YQ11-06178
27 2 ZM73C10025 BOLT Sems
26 2 ZW26X10000 LOCK WASHER
8 ZN18C08007 NUT , ASN YN11-47048
8 ZN18C08007 NUT , ASN YQ11-06179
25 2 ZW16P10000 WASHER
23 4 ZN18C08007 NUT , BTW YN11-45001 & YQ11-47047
23 4 ZN18C08007 NUT , BTW YQ11-06001 & YQ11-06178
2 ZS18C10020 SCREW Cap, ASN YN11-47048
2 ZS18C10020 SCREW Cap, ASN YQ11-06179
22 2 ZS18C10025 SCREW Cap
21 2 ZM73C10020 BOLT Sems, BTW YN11-45001 & YN11-47047
21 2 ZM73C10020 BOLT Sems, BTW YQ11-06001 & YQ11-06178
20 4 ZM73C08025 BOLT Sems
7 ZM73C08020 BOLT Sems, ASN YN11-47285
6 ZM73C08020 BOLT Sems, BTW YN11-47048 & YQ11-47284
6 ZM73C08020 BOLT Sems, BTW YQ11-06179 & YQ11-06198
19 5 ZM73C08020 BOLT Sems, BTW YN11-45001 & YN11-47047
19 5 ZM73C08020 BOLT Sems, BTW YQ11-06001 & YQ11-06178
2 2420T2948D3 U-BOLT , ASN YN11-47048
2 2420T2948D3 U-BOLT , ASN YQ11-06179
7 ZM73C08020 BOLT Sems, ASN YQ11-06199
1 2420T2948D3 U-BOLT , BTW YN11-45001 & YN11-47047
17 1 2420T2948D3 U-BOLT , BTW YQ11-06001 & YQ11-06178
18 1 YW05P01025P1 CLIP
1 YN05P01573P2 PLATE , ASN YN11-47953
1 YN05P01573P2 PLATE , ASN YQ11-06244
16 1 YN05P01314P1 CLIP
1 YN05P01573P1 PLATE , BTW YN11-47285 & YN11-47952
1 YN05P01573P1 PLATE , BTW YQ11-06199 & YQ11-06243
15 1 YN05P01514P1 PLATE , BTW YN11-45001 & YN11-47284
15 1 YN05P01514P1 PLATE , BTW YQ11-06001 & YQ11-06198
11 1 YN05P01471P1 TUBE , BTW YN11-45001 & YN11-47047
11 1 YN05P01471P1 TUBE , BTW YQ11-06001 & YQ11-06178
14 4 YN03E01001D5 CLIP
13 1 YN05P01512P1 GUARD
1 YB05P01147P1 TUBE , ASN YN11-47048
1 YB05P01147P1 TUBE , ASN YQ11-06179
12 1 YN05P01513P1 GUARD
10 1 YN05P01489P1 SUPPORT
9 1 YN05P01504P1 PLATE
8 1 NSS NOT SERVICED SEPARATELY Hose
1 YN05P01236P2 HOSE , ASN YN11-50117
1 YN05P01236P2 HOSE , ASN YQ11-06609
7 1 HX11Y05066DX HOSE
6 1 YN05P01236P1 HOSE , BTW YN11-45001 & YN11-50116
6 1 YN05P01236P1 HOSE , BTW YQ11-06001 & YQ11-06608
4 1 YN05P01439P1 HOSE
3 1 YN05P01494P1 RADIATOR HOSE
2 1 YN05P01479P1 HOSE Radiator
1 1 YN05P01496F1 TANK Assy, Water, Sub
AR YN05P00045F1 Group
5 1 YN05P01495P1 HOSE
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
