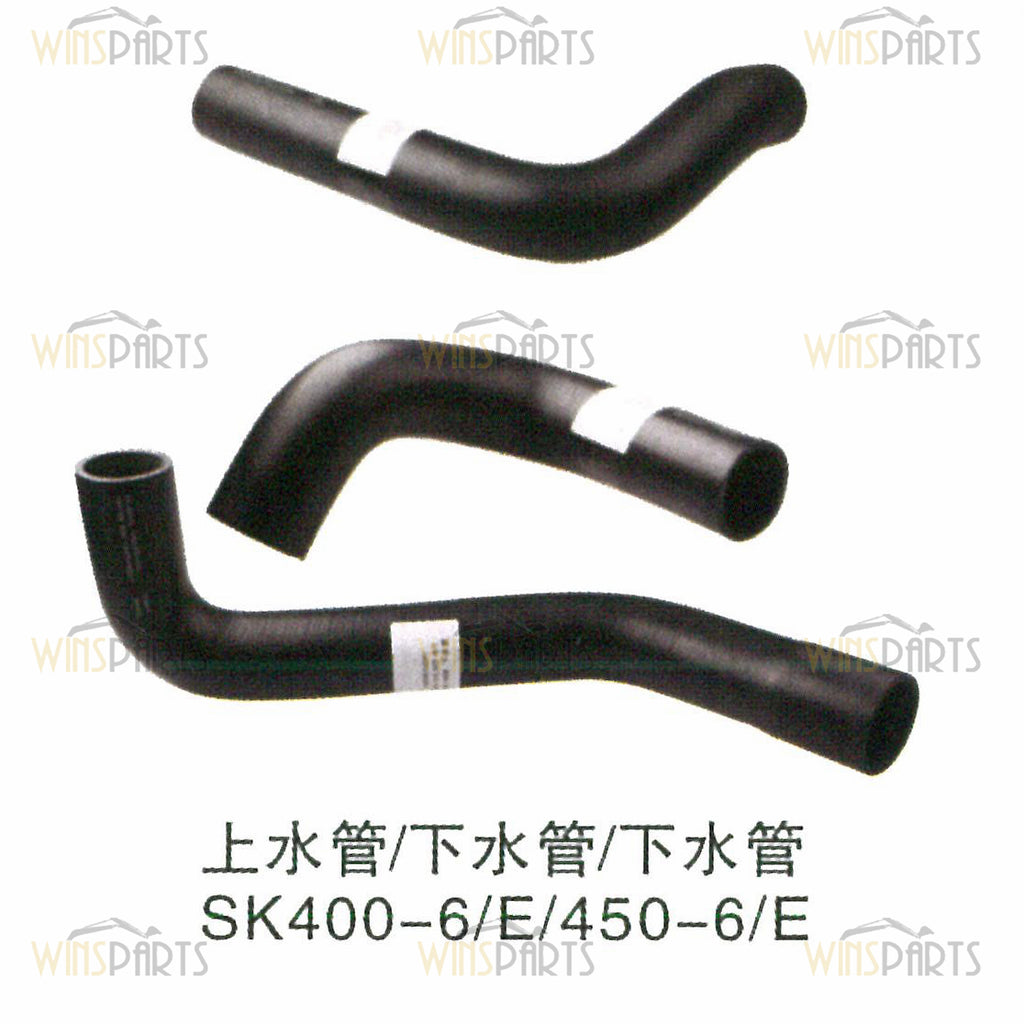

LS05P01075P1 LS05P01160P1 LS05P01078P1 LS05P01076P1 LS05P01074P1 LS05P01045P1 Water HOSE Upper TUBE Lower Radiator Hose Kobelco SK480LC SK400LC SK450LC-6 Excavator Parts
B42 2 ZC16X08100 CLIP
B38 8 ZN18C08007 NUT M08x1.25mm
B27 5 ZW26X12000 LOCK WASHER ID 12 x OD 21 x Th 3.0mm
B36 4 ZW26X10000 LOCK WASHER ID 10 x OD 18 x Th 2.5mm
B35 2 ZW26X08000 WASHER Lock -- ID 08 x OD 15 x Th 2.0mm
B34 5 ZW16H12000 WASHER ID 13 x OD 26 x Th 3.2mm
B33 4 ZW16H10000 WASHER ID 11 x OD 24 x Th 3.2mm
B32 6 ZW16X08000 WASHER ID 08 x OD 17 x Th 1.6mm
B30 5 ZS18C12030 SCREW M12x1.75x30mm
B29 4 ZS18C10025 SCREW M10x1.50x25mm
B28 2 ZS18C08016 SCREW M08x1.25x16mm
B26 13 ZC16X07000 CLIP Clamp, Hose -- Min 60 x Max 81mm
B25 12 ZC16X10000 CLIP Clamp, Hose -- Min 87 x Max 113mm
B24 1 VA3113303800 O-RING Mitsubishi Engine Part
B19 2 2420T2948D8 U-BOLT M08x1.25x ID 90 x 123mm Long
B18 1 LS05P01107P1 PLATE
B17 1 LS05P01098P1 SUPPORT PLATE
B10 1 LS05P01034P1 RIGID TUBE
B9 1 LS05P01048P1 RIGID TUBE
B8 2 LS05P01041P1 FLEXIBLE HOSE OIL COOLER
B6 1 LS05P01077P1 FLEXIBLE HOSE OIL COOLER
LS05P00012F1 RADIATOR GROUP
B11 1 LS05P01075P1 TUBE
B4 1 LS05P01160P1 HOSE UPPER
B7 1 LS05P01078P1 FLEXIBLE HOSE OIL COOLER
B12 1 LS05P01076P1 TUBE
B3 1 LS05P01074P1 HOSE LOWER
B5 1 LS05P01045P1 HOSE MIDDLE
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
