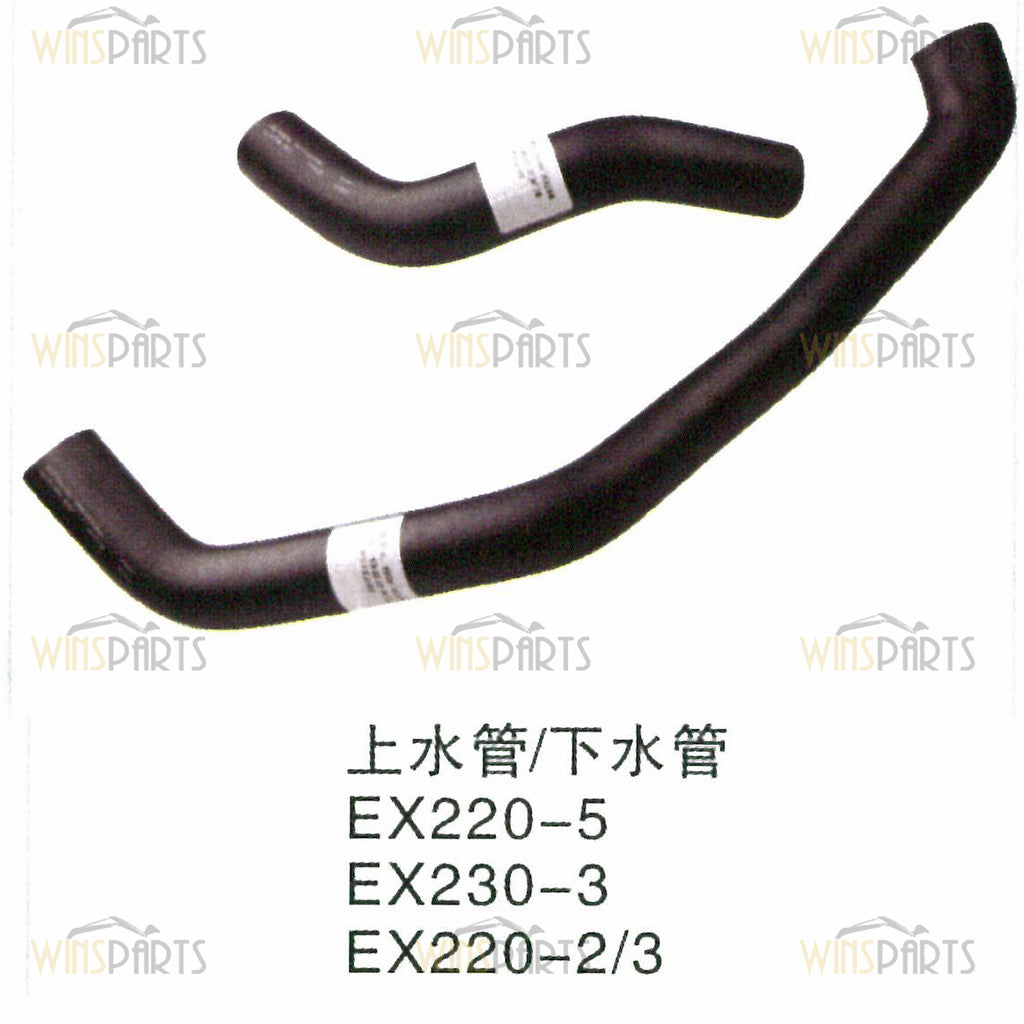

3057209 3051967 Water Upper Pipe TUBE Lower Radiator Hose Hitachi EX220-2 EX220-3 Excavator Parts
01-15. 4271780 [1] RADIATOR ASS'Y
01-15. 4368741 [1] RADIATOR ASS'Y
01. 4286102 [1] CORE;RADIATOR
02. 4152858 [1] CAP
02. 4295582 [1] CAP
03. 4201253 [1] COCK;DRAIN
04. 4301400 [1] PIPE;DRAIN
05. 4286103 [1] SHROUD
06. 4286940 [6] BOLT;SEMS
07. 4286104 [1] NET
08. 4286940 [3] BOLT;SEMS
09. 4286105 [2] PACKING
10. 4286106 [1] COOLER;OIL
11. J021020 [6] BOLT;SEMS
12. 4286107 [2] PACKING
13. 4286108 [1] PROTECTOR
14. M360614 [4] BOLT;WING
15. 4286109 [2] PACKING
115. 4259818 [1] STAY
116. A590916 [6] WASHER;SPRING
117. J901632 [6] BOLT
118. 3051967 [1] HOSE;WATER
120. 4504198 [4] CLAMP;HOSE
121. 3057209 [1] HOSE;WATER
138. J901635 [1] BOLT
139. A590916 [1] WASHER;SPRING
140. A590116 [1] WASHER;PLANE
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
