20Y-03-41191 TUBE KOMATSU parts PC200, PC210, PC230NHD TUBE

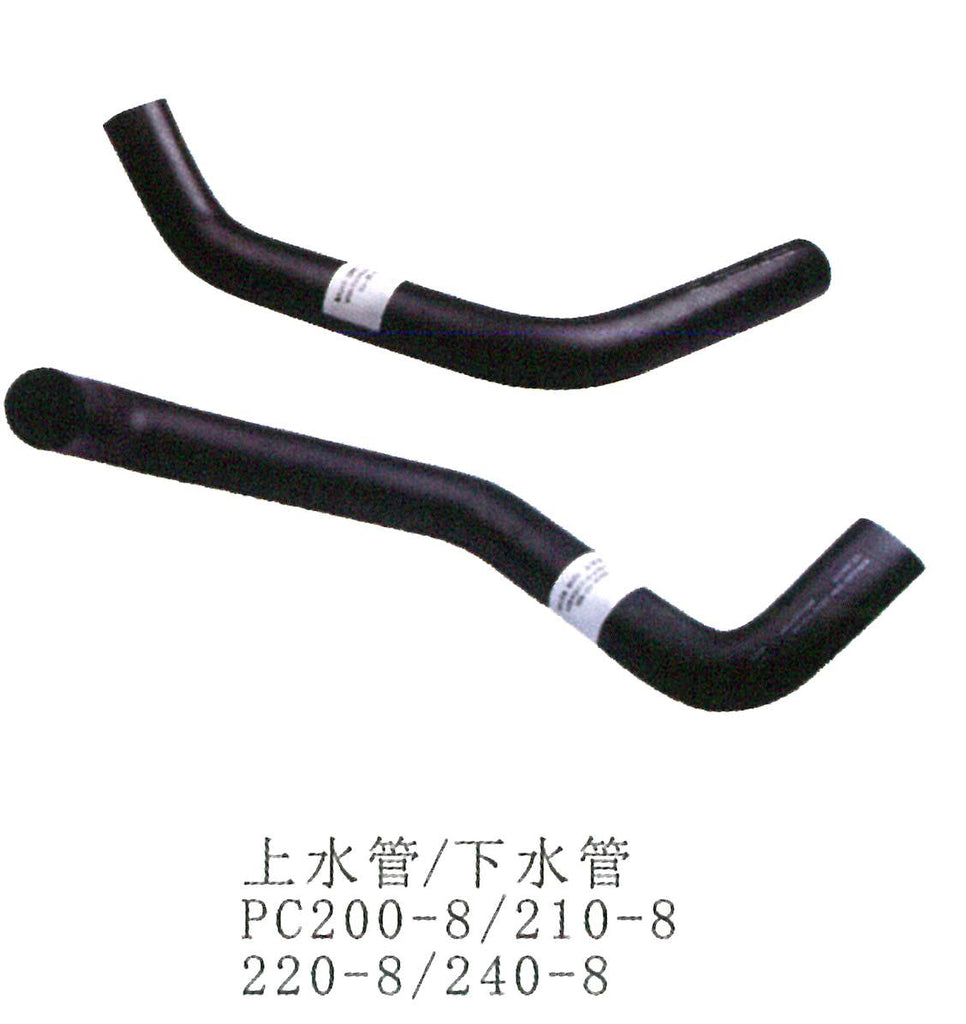

20Y-03-42250 20Y-03-41141 20Y-03-41191 20Y-03-41151 WATER Upper Pipe Lower Radiator Hose Komatsu PC200LC-8 PC200-8 Excavator Parts
1. 206-03-21151 [1] HOSE Komatsu 0.36 kg.
["ENSN: 19227", "SN: K50269-UP"]
2. 07299-00070 [2] CLAMP Komatsu 0.1 kg.
["ENSN: 19227-21094", "SN: K50269-UP"]
3. 20Y-03-41181 [1] HOSE Komatsu 0.54 kg.
["ENSN: 21095", "SN: K50269-UP"]
4. 21T-62-69711 [2] CLAMP Komatsu 0.14 kg.
["ENSN: 19227-21094", "SN: K50269-UP"]
5. 20Y-03-41191 [1] TUBE Komatsu China
["ENSN: 21095", "SN: K50269-UP"]
6. 07000-E2065 [1] O-RING Komatsu 0.003 kg.
["ENSN: 19227", "SN: K50269-UP"]
7. 01010-81030 [2] BOLT Komatsu OEM 0.03 kg.
["ENSN: 19227-21094", "SN: K50269-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"]
8. 01643-31032 [2] WASHER Komatsu 0.054 kg.
["ENSN: 21095", "SN: K50269-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
9. 206-03-21650 [1] BRACKET Komatsu China
["ENSN: 19227", "SN: K50269-UP"]
10. 01010-81230 [2] BOLT Komatsu 0.043 kg.
["ENSN: 19227", "SN: K50269-UP"] analogs:["0101051230", "01010B1230"]
11. 01643-31232 [2] WASHER Komatsu 0.027 kg.
["ENSN: 19227", "SN: K50269-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
12. 07283-37060 [1] CLIP Komatsu China
["ENSN: 19227", "SN: K50269-UP"]
14. 01597-01009 [2] NUT Komatsu 0.011 kg.
["ENSN: 19227", "SN: K50269-UP"]
15. 20Y-03-41141 [1] HOSE Komatsu 1.08 kg.
["ENSN: 19227", "SN: K50269-UP"]
16. 07289-00055 [2] CLAMP Komatsu 0.058 kg.
["ENSN: 19227", "SN: K50269-UP"] analogs:["802660176"]
17. 20Y-03-41151 [1] HOSE Komatsu China
["ENSN: 19227", "SN: K50269-UP"]
19. 208-62-38370 [1] CLIP Komatsu 0.08 kg.
["SN: K50269-UP"]
20. 01010-81045 [1] BOLT Komatsu 0.039 kg.
["SN: K50269-UP"] analogs:["0101051045", "01010D1045"]
22. 195-33-11220 [1] SPACER Komatsu 0.073 kg.
["SN: K50269-UP"]
23. 20Y-03-32660 [2] STAY Komatsu China
["SN: K50269-UP"]
24. 01010-81635 [2] BOLT Komatsu 0.088 kg.
["SN: K50269-UP"] analogs:["0101061635", "801015185", "0101051635", "0101031635"]
25. 01643-31645 [2] WASHER Komatsu 0.072 kg.
["SN: K50269-UP"] analogs:["802170005", "0164301645"]
26. 20Y-03-48110 [1] GUARD Komatsu China
["SN: K50269-UP"]
27. 01010-81025 [2] BOLT Komatsu 0.36 kg.
["SN: K50269-UP"] analogs:["0101051025", "0101651025", "801015109"]
29. 20Y-03-42320 [1] GUARD Komatsu China
["SN: K50269-UP"]
30. 20Y-03-41811 [1] BRACKET Komatsu China
["SN: K50269-UP"]
31. 01010-81020 [2] BOLT Komatsu 0.161 kg.
["SN: K50269-UP"] analogs:["801014093", "0101051020", "801015108"]
33. 20Y-03-41161 [1] HOSE Komatsu 0.45 kg.
["SN: K50269-UP"]
36. 21T-54-16150 [2] WASHER Komatsu 0.06 kg.
["SN: K50269-UP"]
37. 01010-81640 [4] BOLT Komatsu 0.264 kg.
["SN: K50269-UP"] analogs:["0101061640", "801015186", "0101031640", "0101051640"]
41. 206-03-43340 [1] CLIP Komatsu 0.01 kg.
["SN: K50269-UP"]
42. 20Y-03-41171 [1] TUBE Komatsu 1.87 kg.
["SN: K50269-UP"]
43. 20Y-03-41740 [1] BRACKET Komatsu China
["SN: K50269-UP"]
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
