OTHER BP500 Komatsu WATER Upper Pipe Lower Radiator Hose

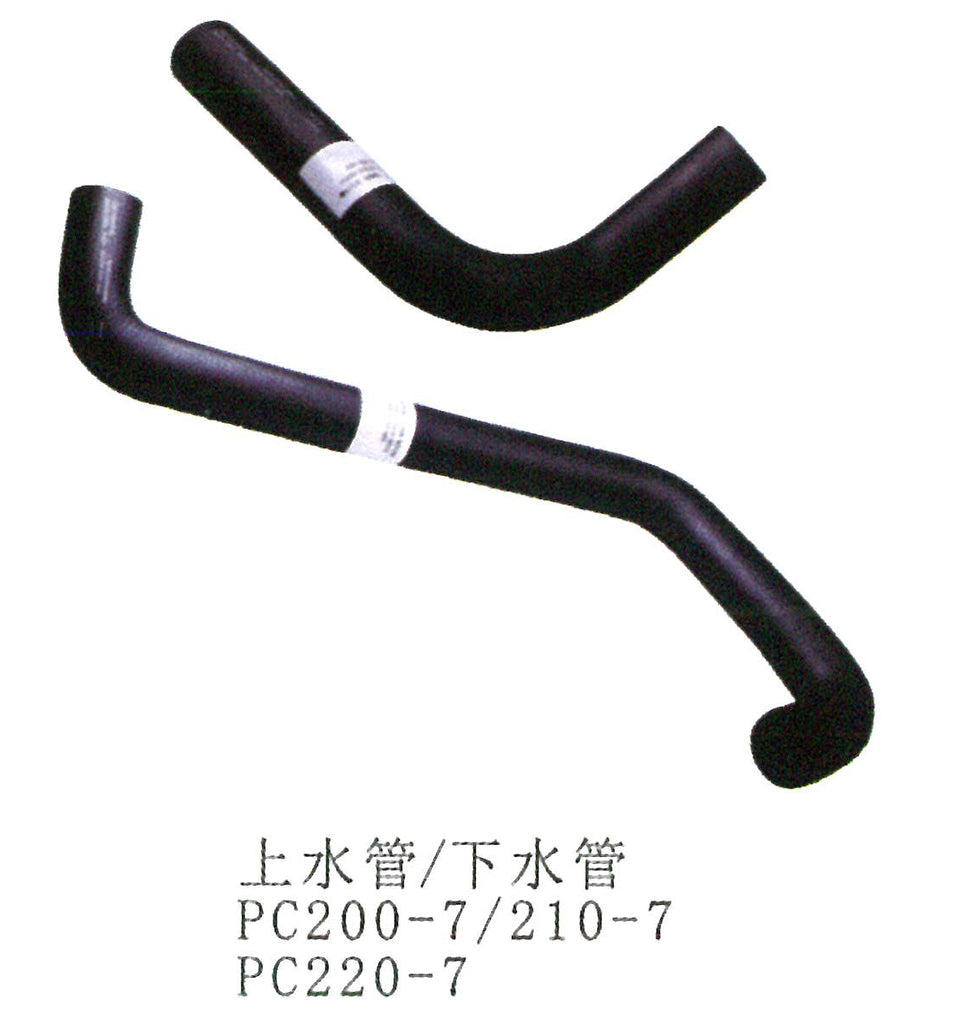

20Y-03-31230 20Y-03-31220 20Y-03-31221 6D102 RADIATOR HOSE LOWER WATER Upper Water Pipe Komatsu PC200-7 PC210-7 PC220-7 Excavator Parts
1. 175-61-17240 [1] COLLAR Komatsu 0.12 kg.
["SN: 200001-UP"]
2. 04434-51210 [1] CLIP Komatsu 0.015 kg.
["SN: 200001-UP"]
3. 01010-81090 [1] BOLT Komatsu 0.057 kg.
["SN: 200001-UP"] analogs:["801015566", "0101051090", "1441521460"]
4. 01643-31032 [1] WASHER Komatsu 0.054 kg.
["SN: 200001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
5. 20Y-03-31470 [1] HOSE Komatsu 0.11 kg.
["SN: 200001-UP"]
6. 206-03-43340 [1] CLIP Komatsu 0.01 kg.
["SN: 200001-UP"]
7. 20Y-03-31332 [1] SEAL Komatsu China
["SN: 201285-UP"]
8. 20Y-03-31321 [1] SEAL Komatsu China
["SN: 200001-UP"]
9. 20Y-03-31450 [1] SHEET Komatsu China
["SN: 200001-UP"]
10. 20Y-03-31460 [1] SHEET Komatsu China
["SN: 200001-UP"]
11. 20Y-03-31221 [1] HOSE Komatsu 0.92 kg.
["SN: 200008-UP"] analogs:["20Y0331220"]
12. 07289-00055 [2] CLAMP Komatsu 0.058 kg.
["SN: 200001-UP"] analogs:["802660176"]
13. 20Y-03-31230 [1] HOSE Komatsu 1.33 kg.
["SN: 200001-UP"]
15. 07289-00070 [1] CLAMP Komatsu 0.061 kg.
["SN: 200001-UP"] analogs:["802660014", "2080911120"]
16. 208-62-38370 [1] CLIP Komatsu 0.08 kg.
["SN: 200001-UP"]
17. 01010-81055 [1] BOLT Komatsu 0.078 kg.
["SN: 200001-UP"] analogs:["0101051055"]
19. 22D-62-18450 [1] SPACER Komatsu 0.1 kg.
["SN: 200001-UP"]
20. 20Y-06-15240 [1] TANK ASS'Y Komatsu 0.5 kg.
["SN: 200001-UP"]
21. 205-03-71532 [1] CAP Komatsu 0.02 kg.
["SN: 200001-UP"]
21. 205-03-71540 [1] PACKING Komatsu 0.01 kg.
["SN: 200001-UP"]
22. 208-03-58290 [1] HOSE, 500MM Komatsu 0.06 kg.
["SN: 200008-UP"]
24. 20Y-03-31341 [1] BRACKET Komatsu China
["SN: 200001-UP"]
25. 203-03-56650 [1] BRACKET Komatsu China
["SN: 200001-UP"]
26. 01010-80820 [2] BOLT Komatsu 0.013 kg.
["SN: 200001-UP"] analogs:["801014067", "0101050820", "801015086"]
27. 01643-30823 [2] WASHER Komatsu 0.004 kg.
["SN: 200001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
29. 01010-81225 [2] BOLT Komatsu 0.074 kg.
["SN: 200001-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"]
30. 01643-31232 [2] WASHER Komatsu 0.027 kg.
["SN: 200001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
31. 20Y-03-31210 [2] STAY Komatsu China
["SN: 200001-UP"]
32. 01010-81635 [2] BOLT Komatsu 0.088 kg.
["SN: 200001-UP"] analogs:["0101061635", "801015185", "0101051635", "0101031635"]
33. 01643-31645 [2] WASHER Komatsu 0.072 kg.
["SN: 200001-UP"] analogs:["802170005", "0164301645"]
35. 21T-54-16150 [2] WASHER Komatsu 0.06 kg.
["SN: 200001-UP"]
36. 01016-51250 [4] BOLT Komatsu 0.061 kg.
["SN: 200001-UP"]
