EXCAVATORS PC300 PC300SC PC340 PC350 PC380
MOBILE CRUSHERS AND RECYCLERS BR300S Komatsu

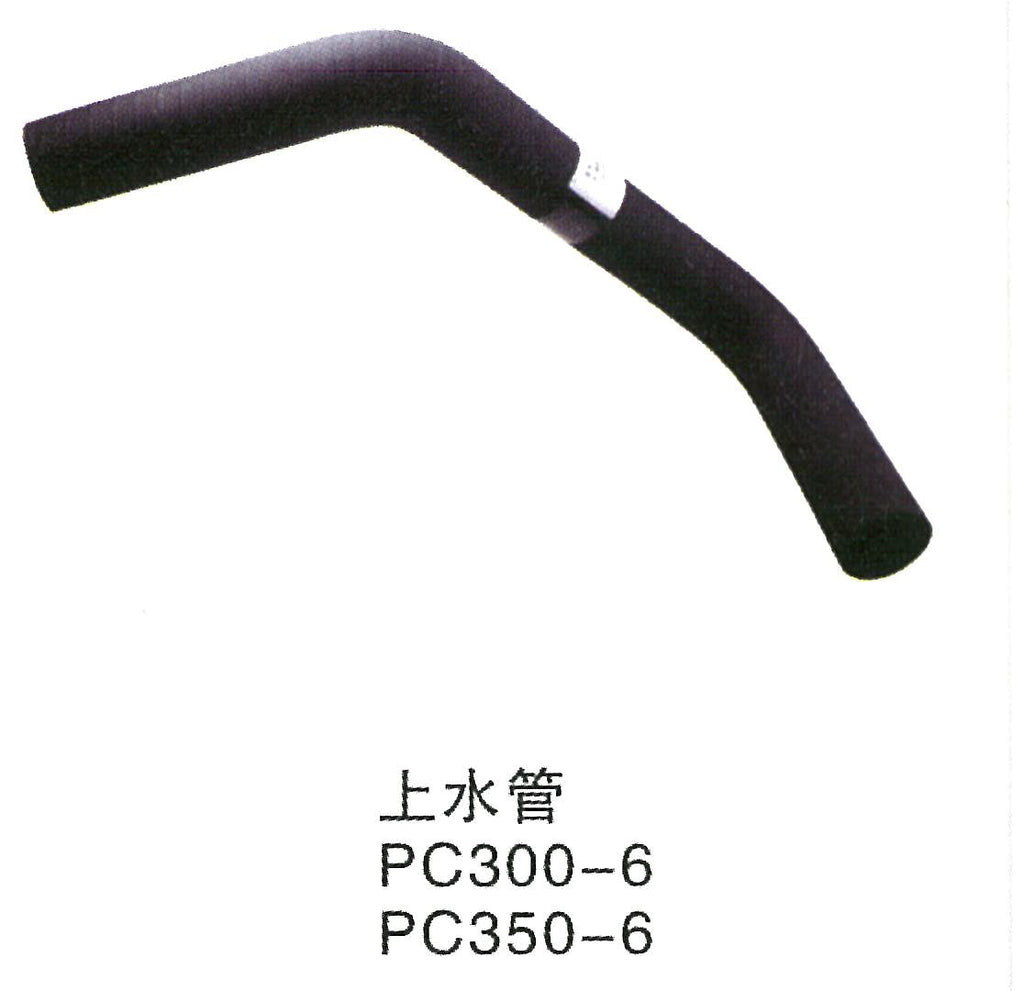

1. 207-03-61180 [1] HOSE Komatsu 1.75 kg.
["SN: 30001-@"]
2. 07289-00070 [2] CLAMP Komatsu 0.061 kg.
["SN: 30676-@"] analogs:["802660014", "2080911120"]
2. 208-09-11120 [2] CLAMP Komatsu 0.061 kg.
["SN: 30001-30675"] analogs:["0728900070", "802660014"]
3. 207-03-51530 [2] CLIP Komatsu 0.26 kg.
["SN: 30001-@"]
4. 281-01-17790 [1] SEAT Komatsu 0.19 kg.
["SN: 30001-@"]
5. 01010-81290 [1] BOLT Komatsu 0.095 kg.
["SN: 30001-@"] analogs:["0101051290"]
6. 01010-81235 [1] BOLT Komatsu 0.048 kg.
["SN: 33001-@"] analogs:["0101051235", "01010E1235", "801015136"]
6. 01010-81230 [1] BOLT Komatsu 0.043 kg.
["SN: 30001-32999"] analogs:["0101051230", "01010B1230"]
7. 198-43-15310 [1] COLLAR, 10MM Komatsu China
["SN: 30001-@"]
8. 01643-31232 [2] WASHER Komatsu 0.027 kg.
["SN: 30001-34109"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
9. 207-03-61170 [1] HOSE Komatsu 1.65 kg.
["SN: 30001-34109"] analogs:["2070361171"]
11. 20Y-06-15240 [1] TANK ASS'Y Komatsu 0.5 kg.
["SN: 30001-@"]
12. 205-03-71532 [1] CAP Komatsu 0.02 kg.
["SN: 30001-@"]
12. 205-03-71540 [1] PACKING Komatsu 0.01 kg.
["SN: 30001-@"]
13. 207-03-61230 [1] BRACKET Komatsu China
["SN: 30001-@"]
14. 20Y-03-11361 [1] BAND Komatsu China
["SN: 30001-@"]
15. 01580-10806 [2] NUT Komatsu 0.005 kg.
["SN: 30001-@"] analogs:["801920104"]
16. 01643-30823 [2] WASHER Komatsu 0.004 kg.
["SN: 30001-@"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
19. 208-03-58310 [1] HOSE, 600MM Komatsu 0.06 kg.
["SN: 30001-@"]
20. 206-03-43340 [3] CLIP Komatsu 0.01 kg.
["SN: 30001-@"]
21. 207-03-61220 [1] HOSE, 2300MM Komatsu 0.22 kg.
["SN: 30001-@"]
1. 207-03-61310 [1] RADIATOR CORE ASS'Y Komatsu 77 kg.
["SN: 33001-UP"]
2. 20Y-03-22110 [1] CAP Komatsu OEM 0.25 kg.
["SN: 33001-UP"]
3. 205-03-62660 [1] PLUG Komatsu 0.01 kg.
["SN: 30203-UP"]
4. 07000-11007 [1] O-RING Komatsu 0.001 kg.
["SN: 33984-UP"] analogs:["YM24311000070", "0700001007"]
4. 07000-01007 [1] O-RING Komatsu 0.001 kg.
["SN: 30203-33983"] analogs:["0700011007", "YM24311000070"]
5. 205-03-71230 [1] HOSE Komatsu 0.02 kg.
["SN: 30203-UP"]
6. 20Y-03-11330 [1] CLIP Komatsu 0.01 kg.
["SN: 30203-UP"]
7. 01010-81225 [10] BOLT Komatsu 0.074 kg.
["SN: 30203-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"]
8. 01643-31232 [10] WASHER Komatsu 0.027 kg.
["SN: 30203-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
9. 207-03-61110 [1] OIL COOLER ASS'Y Komatsu 118 kg.
["SN: 30203-UP"]
14. 207-03-51171 [2] SEAL Komatsu China
["SN: 30203-UP"]
15. 207-03-51181 [2] SEAL Komatsu China
["SN: 30203-UP"] analogs:["2080352181"]
16. 207-03-51191 [2] SHEET Komatsu China
["SN: 30203-UP"] analogs:["20703K1320"]
17. 207-03-51211 [2] SEAL Komatsu China
["SN: 30203-UP"] analogs:["20703K1331"]
18. 207-03-51450 [2] SHEET Komatsu China
["SN: 30203-UP"]
19. 207-03-61120 [1] FRAME Komatsu China
["SN: 30203-UP"]
20. 207-03-61130 [1] FRAME Komatsu China
["SN: 30203-UP"]
21. 208-03-52272 [1] NET Komatsu China
["SN: 30203-UP"]
22. 01434-10620 [2] BOLT, WING Komatsu 0.017 kg.
["SN: 30203-UP"]
23. 01643-30623 [2] WASHER Komatsu 0.002 kg.
["SN: 30203-UP"] analogs:["0164370623"]
24. 207-03-61320 [1] SHROUD Komatsu 8.5 kg.
["SN: 33001-UP"]
25. 207-03-61211 [1] TUBE Komatsu China
["SN: 30203-UP"]
26. 07283-24949 [1] CLIP Komatsu 0.118 kg.
["SN: 30203-UP"]
27. 01599-01011 [2] NUT Komatsu 0.016 kg.
["SN: 30203-UP"]
28. 01643-31032 [2] WASHER Komatsu 0.054 kg.
["SN: 30203-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
29. 207-03-61190 [1] PLATE Komatsu China
["SN: 30203-UP"]
30. 01010-81025 [2] BOLT Komatsu 0.36 kg.
["SN: 30203-UP"] analogs:["0101051025", "0101651025", "801015109"]
32. 07000-13045 [1] O-RING Komatsu China 0.002 kg.
["SN: 33984-UP"] analogs:["0700003045"]
32. 07000-03045 [1] O-RING Komatsu China 0.002 kg.
["SN: 30203-33983"] analogs:["0700013045"]
33. 01010-81240 [2] BOLT Komatsu 0.052 kg.
["SN: 30203-UP"] analogs:["801015573", "0101051240"]
34. 01643-51232 [2] WASHER Komatsu 0.024 kg.
["SN: 30203-UP"]
35. 207-03-61160 [2] BRACKET Komatsu China
["SN: 30203-UP"]
38. 6223-63-4100 [1] AIR COOLER ASS'Y Komatsu 34.801 kg.
["SN: 33292-UP"] analogs:["6223634400"]
