2060351161 20Y0312190 2060351172 2060351171
EXCAVATORS PC200 PC220
MOBILE CRUSHERS AND RECYCLERS BR200 BR200J BR200R BR200S BR300J BR310JG Komatsu WATER Upper Pipe Lower Radiator Hose Komatsu
.

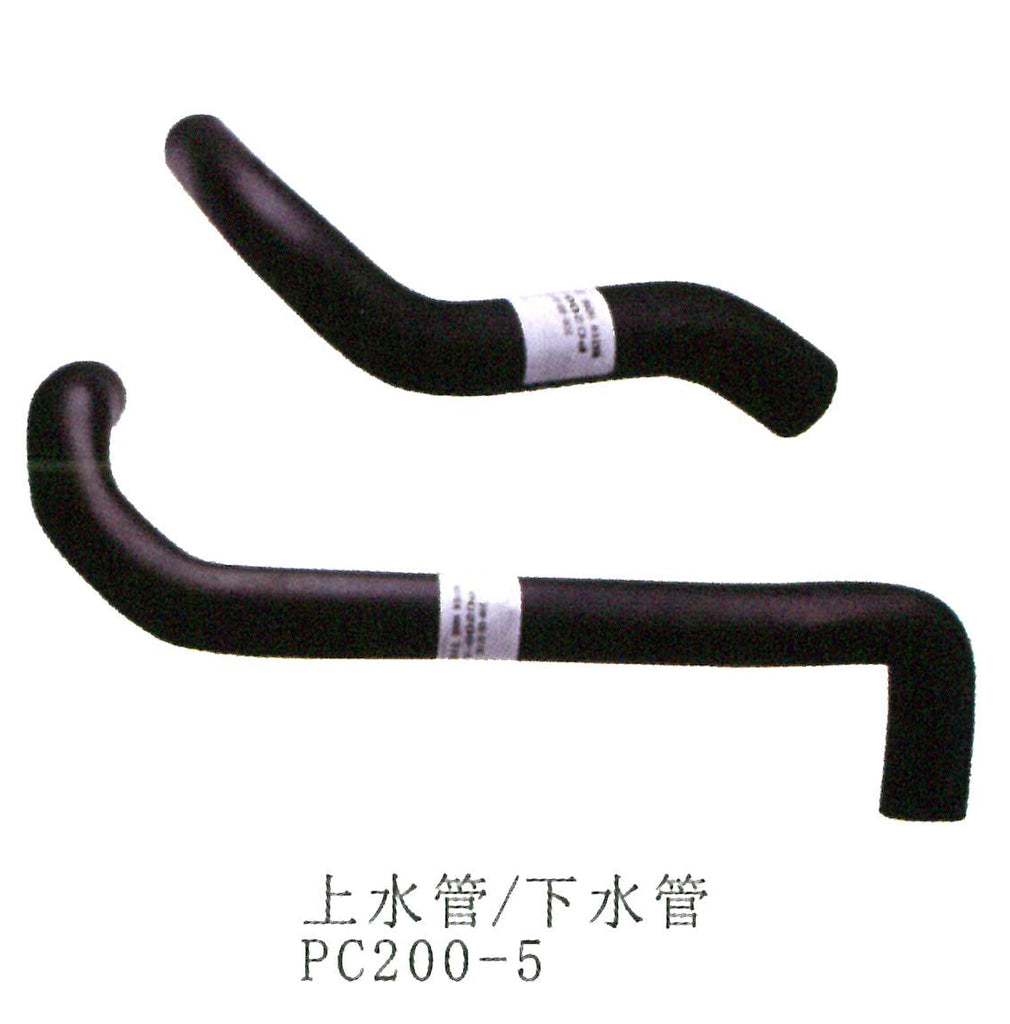

206-03-51161 20Y-03-12190 206-03-51172 206-03-51171 WATER Upper Pipe Lower Radiator Hose Komatsu PC200-5 PC200LC-5 PC220-5 PC220LC-5 Excavator Parts
1. 206-03-51161 [1] HOSE, RADIATOR INLET Komatsu 0.46 kg.
2. 208-09-11110 [1] CLAMP Komatsu 0.058 kg.
analogs:["0728900055", "802660176"]
3. 207-09-11110 [1] CLAMP Komatsu 0.054 kg.
analogs:["0728900045"]
4. 206-03-51172 [1] HOSE, RADIATOR OUTLET Komatsu 1.05 kg.
6. 20Y-03-11530 [1] CLIP Komatsu China
7. 01010-51230 [1] BOLT Komatsu 0.043 kg.
analogs:["0101081230", "01010B1230"]
8. 01643-31232 [1] WASHER Komatsu 0.027 kg.
analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
9. 20Y-06-15240 [1] TANK, RADIATOR OVERFLOW RECOVERY Komatsu 0.5 kg.
10. 205-03-71532 [1] CAP Komatsu 0.02 kg.
205-03-71540 [1] PACKING Komatsu 0.01 kg.
|$10.
11. 20Y-03-11261 [1] BRACKET Komatsu China
14. 20Y-03-11361 [1] BAND Komatsu China
15. 01580-10806 [2] NUT Komatsu 0.005 kg.
analogs:["801920104"]
16. 01643-30823 [2] WASHER Komatsu 0.004 kg.
analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
17. 20Y-03-11270 [1] HOSE, RADIATOR TO OVERFLOW TANK Komatsu China
18. 206-03-43340 [2] CLIP Komatsu 0.01 kg.
19. 206-03-43331 [1] HOSE, OVERFLOW Komatsu 0.03 kg.
21. [-29] RADIATOR (SEE PG 01-014)
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
