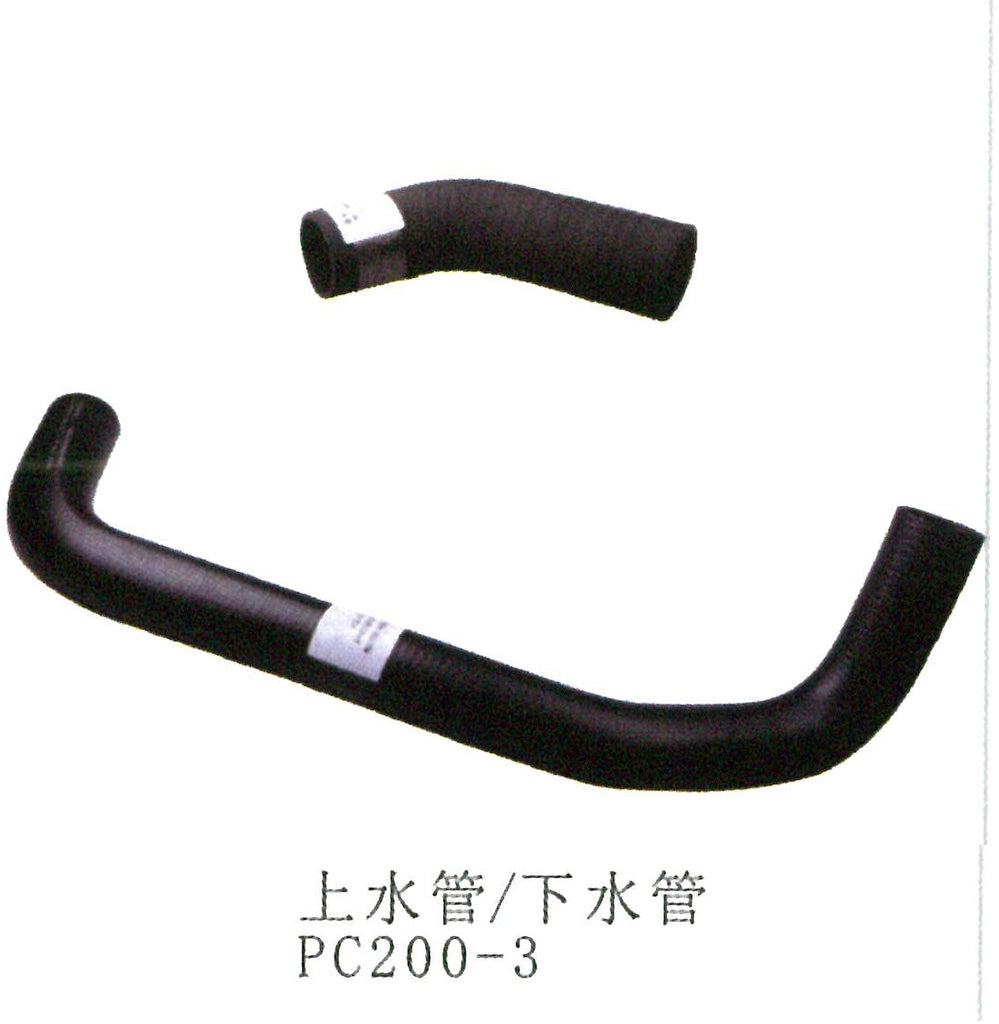

205-03-71170 205-03-71180 2050371170 2050371180 WATER Upper Pipe Lower Radiator Hose Komatsu PC200-3 PC200LC-3 PW210 Excavator Parts
1. 205-03-71140 [1] SHROUD,UPPER Komatsu China
["SN: 20001-UP"]
2. 205-03-71150 [1] SHROUD,LOWER Komatsu China
["SN: 20001-UP"]
3. 01010-50816 [12] BOLT Komatsu 0.022 kg.
["SN: 20001-UP"] analogs:["0101080816", "801015084"]
4. 01643-30823 [12] WASHER Komatsu 0.004 kg.
["SN: 20001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
5. 205-03-71161 [1] GUARD Komatsu China
["SN: 25512-UP"] analogs:["2050371160"]
205-03-71160 [1] GUARD Komatsu China
["SN: 20001-25511"] analogs:["2050371161"] |5.
8. 205-03-71170 [1] HOSE Komatsu 0.5 kg.
["SN: 20001-UP"]
9. 07281-00909 [2] CLAMP Komatsu 0.1 kg.
["SN: 20001-UP"]
10. 09483-00305 [1] HOSE Komatsu 0.086 kg.
["SN: 20001-37252"]
11. 07281-00197 [2] CLAMP Komatsu 0.015 kg.
["SN: 20001-37252"] analogs:["1950313250"]
12. 205-03-71480 [1] ELBOW Komatsu China
["SN: 20001-37252"]
13. 205-03-71210 [1] TUBE Komatsu China
["SN: 20001-UP"]
14. 205-03-62660 [1] PLUG Komatsu 0.01 kg.
["SN: 20001-UP"]
15. 07000-01007 [1] O-RING Komatsu 0.001 kg.
["SN: 20001-UP"] analogs:["0700011007", "YM24311000070"]
16. 07000-02055 [1] O-RING Komatsu China 0.03 kg.
["SN: 20001-UP"] analogs:["0700012055"]
17. 01010-50825 [2] BOLT Komatsu 0.015 kg.
["SN: 20001-UP"] analogs:["0101080825", "01010D0825", "801015087"]
19. 205-03-71230 [1] HOSE Komatsu 0.02 kg.
["SN: 20001-UP"]
20. 07280-00910 [1] CLAMP Komatsu 0.008 kg.
["SN: 20001-UP"]
21. 205-03-71180 [1] HOSE Komatsu 1.35 kg.
["SN: 20001-UP"]
22. 07281-00709 [2] CLAMP Komatsu 0.044 kg.
["SN: 20001-UP"]
23. 205-03-71190 [1] CLAMP Komatsu China
["SN: 20001-UP"] analogs:["2050371191"]
24. 205-03-71251 [1] BRACKET Komatsu China
["SN: 20001-UP"]
25. 01010-51225 [2] BOLT Komatsu 0.074 kg.
["SN: 20001-UP"] analogs:["0101081225", "01010B1225", "0101051222"]
26. 01643-31232 [2] WASHER Komatsu 0.027 kg.
["SN: 20001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
27. 205-03-71242 [1] TANK,RESERVE Komatsu 1 kg.
["SN: 24230-UP"] analogs:["2050371241"]
205-03-71241 [1] TANK,RESERVE Komatsu 1 kg.
["SN: 20001-24229"] analogs:["2050371242"] |27.
27A. 205-03-71531 [1] CAP Komatsu 0.02 kg.
["SN: 24230-UP"] analogs:["2050371532"]
205-03-71530 [1] CAP Komatsu China
["SN: 20001-24229"] |27A.
28. 205-03-71260 [1] BAND Komatsu China
["SN: 20001-UP"]
29. 01580-10806 [2] NUT Komatsu 0.005 kg.
["SN: 20001-UP"] analogs:["801920104"]
31. 206-03-43331 [2] HOSE Komatsu 0.03 kg.
["SN: 24230-UP"]
206-03-43330 [2] HOSE¤ 400MM Komatsu 0.03 kg.
["SN: 20001-24229"] analogs:["2060343331"] |31.
32. 206-03-43340 [3] CLIP Komatsu 0.01 kg.
["SN: 20001-UP"]
33. 08052-31711 [1] CLIP Komatsu China
["SN: 33086-UP"] analogs:["0805241711", "0805221711"]
08036-01814 [1] CLIP Komatsu 0.022 kg.
["SN: 20001-33085"] |33.
36. 01643-31032 [1] WASHER Komatsu 0.054 kg.
["SN: 20001-33085"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
