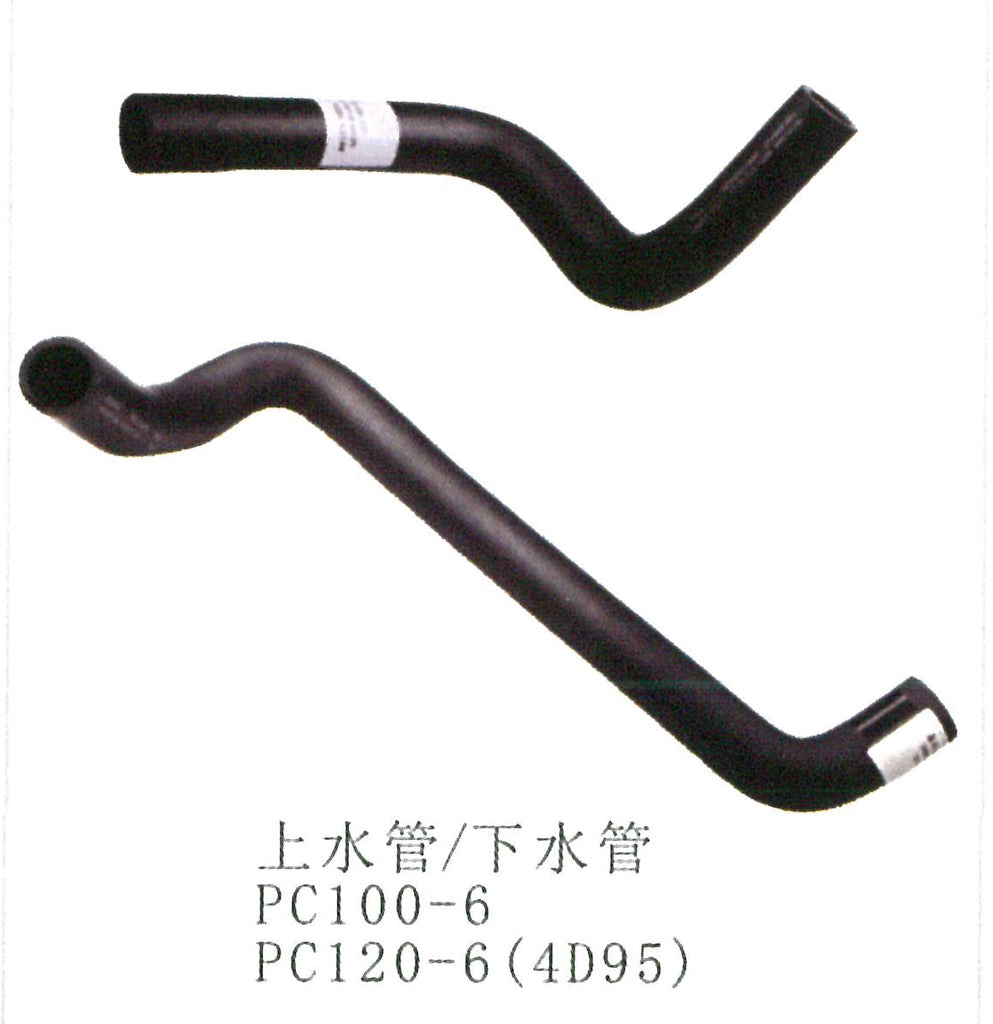

1. 203-03-61172 [1] HOSE Komatsu 0.46 kg.
["SN: 1001-2346"]
2. 208-09-11110 [1] CLAMP Komatsu 0.058 kg.
["SN: 1001-2346"] analogs:["0728900055", "802660176"]
3. 207-09-11110 [1] CLAMP Komatsu 0.054 kg.
["SN: 1001-2346"] analogs:["0728900045"]
4. 203-03-61510 [1] HOSE Komatsu 0.853 kg.
["SN: 1001-2346"]
6. 207-62-33690 [1] CLIP Komatsu China
["SN: 1001-2346"]
7. 08036-11214 [2] CLIP Komatsu 0.012 kg.
["SN: 1001-@"]
8. 202-03-61110 [1] TANK Komatsu 1 kg.
["SN: 1001-@"]
9. 205-03-71531 [1] CAP Komatsu 0.02 kg.
["SN: 1001-@"] analogs:["2050371532"]
10. 203-03-51370 [1] HOSE Komatsu China
["SN: 1001-@"]
11. 206-03-43340 [1] CLIP Komatsu 0.01 kg.
["SN: 1001-@"]
12. 21Y-03-11200 [1] BRACKET ASS'Y Komatsu China
["SN: 1001-@"]
13. 21Y-03-11150 [1] SHEET Komatsu China
["SN: 1001-@"]
14. 04431-10000 [2] CLIP Komatsu China
["SN: 1001-@"] analogs:["0443111000", "2055485110"]
15. 04431-30000 [2] PLATE Komatsu 0.006 kg.
["SN: 1001-@"]
16. 01010-80820 [2] BOLT Komatsu 0.013 kg.
["SN: 1001-@"] analogs:["801014067", "0101050820", "801015086"]
17. 01643-30823 [2] WASHER Komatsu 0.004 kg.
["SN: 1001-@"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
18. 203-03-61120 [1] STAY Komatsu China
["SN: 1001-2346"]
19. 203-03-61130 [1] STAY Komatsu China
["SN: 1001-2346"]
20. 01010-81230 [3] BOLT Komatsu 0.043 kg.
["SN: 1001-2346"] analogs:["0101051230", "01010B1230"]
21. 01010-81235 [1] BOLT Komatsu 0.048 kg.
["SN: 1001-@"] analogs:["0101051235", "01010E1235", "801015136"]
22. 175-54-34170 [5] WASHER Komatsu 0.03 kg.
["SN: 1001-2346"]
23. 01580-11210 [1] NUT Komatsu 0.03 kg.
["SN: 1001-@"] analogs:["801703210", "801920106"]
24. 01010-81255 [4] BOLT Komatsu 0.065 kg.
["SN: 1001-@"] analogs:["3007572X", "801014128", "0101051255"]
26. 21Y-03-11380 [1] BRACKET Komatsu China
["SN: 1001-2346"]
27. 01010-81025 [2] BOLT Komatsu 0.36 kg.
["SN: 1001-@"] analogs:["0101051025", "0101651025", "801015109"]
28. 01643-31032 [2] WASHER Komatsu 0.054 kg.
["SN: 1001-@"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
1. 203-03-67110 [1] RADIATOR ASS'Y Komatsu 32.5 kg.
["SN: 2347-UP"]
2. 203-03-41280 [1] CAP Komatsu 0.08 kg.
["SN: 1001-UP"]
3. 205-03-62660 [1] PLUG Komatsu 0.01 kg.
["SN: 1001-UP"]
4. 07000-01007 [1] O-RING Komatsu 0.001 kg.
["SN: 1001-UP"] analogs:["0700011007", "YM24311000070"]
5. 203-03-56350 [1] HOSE Komatsu 0.4 kg.
["SN: 1001-UP"]
6. 20Y-03-11330 [1] CLIP Komatsu 0.01 kg.
["SN: 1001-UP"]
7. 01435-20814 [8] BOLT Komatsu 0.012 kg.
["SN: 1001-UP"] analogs:["0143500814"]
8. 203-03-61320 [2] SHEET Komatsu China
["SN: 1001-UP"]
11. 21Y-03-11111 [1] OIL COOLER Komatsu 31.74 kg.
["SN: 1001-UP"] analogs:["21Y0311112"]
12. 01435-20816 [6] BOLT Komatsu 0.013 kg.
["SN: 1001-UP"] analogs:["0143500816"]
13. 21Y-03-11270 [2] SHEET Komatsu China
["SN: 1001-UP"]
14. 21Y-03-11371 [1] NET Komatsu China
["SN: 2347-UP"] analogs:["21Y0311341"]
15. 21Y-03-11361 [1] SEAL Komatsu China
["SN: 2347-UP"] analogs:["21Y0311351"]
16. 21Y-03-11351 [1] NET Komatsu China
["SN: 2347-UP"] analogs:["21Y0311361"]
17. 01434-10616 [4] BOLT¤ WING,WING Komatsu 0.02 kg.
["SN: 1001-UP"]
18. 01643-30623 [4] WASHER Komatsu 0.002 kg.
["SN: 1001-UP"] analogs:["0164370623"]
19. 203-03-67122 [1] SHROUD Komatsu China
["SN: 2347-UP"]
21. 21Y-03-17210 [1] COVER Komatsu China
["SN: 2347-UP"]
22. 21Y-03-17220 [1] COVER Komatsu China
["SN: 2347-UP"]
23. 21Y-03-17230 [1] COVER Komatsu China
["SN: 2347-UP"]
24. 01010-80814 [3] BOLT Komatsu 0.011 kg.
["SN: 1001-UP"]
25. 01643-30823 [3] WASHER Komatsu 0.004 kg.
["SN: 1001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
26. 21Y-03-11280 [1] SHEET Komatsu China
["SN: 1001-UP"]
27. 21Y-54-17260 [1] SEAL Komatsu China
["SN: 2347-UP"]
28. 21Y-03-17240 [1] SEAL Komatsu China
["SN: 2347-UP"]
29. 21Y-03-17250 [1] SEAL Komatsu China
["SN: 2347-UP"]
30. 21Y-03-17270 [1] SEAL Komatsu China
["SN: 2347-UP"]
31. 21Y-03-17380 [1] SHEET Komatsu China
["SN: 2347-UP"]
32. 21Y-03-17320 [1] SHEET Komatsu China
["SN: 2347-UP"]
33. 21Y-03-17390 [1] SHEET Komatsu China
["SN: 2347-UP"]
34. 21Y-03-17330 [1] SHEET Komatsu China
["SN: 2347-UP"]
35. 08037-01610 [1] GROMMET Komatsu 0.01 kg.
["SN: 1001-UP"]
36. 21Y-03-17420 [1] HOSE Komatsu China
["SN: 2347-UP"]
37. 206-03-43340 [1] CLIP Komatsu 0.01 kg.
["SN: 1001-UP"]
38. 21Y-03-17510 [1] GUARD Komatsu China
["SN: 2347-UP"]
39. 01010-81225 [4] BOLT Komatsu 0.074 kg.
["SN: 1001-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"]
40. 01643-31232 [4] WASHER Komatsu 0.027 kg.
["SN: 1001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"]
41. 21Y-03-17530 [1] COVER Komatsu China
["SN: 2347-UP"]
42. 01010-81020 [2] BOLT Komatsu 0.161 kg.
["SN: 2347-UP"] analogs:["801014093", "0101051020", "801015108"]
43. 01643-31032 [2] WASHER Komatsu 0.054 kg.
["SN: 2347-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
The price is for reference only, please contact us by email and the actual quotation shall prevail.
