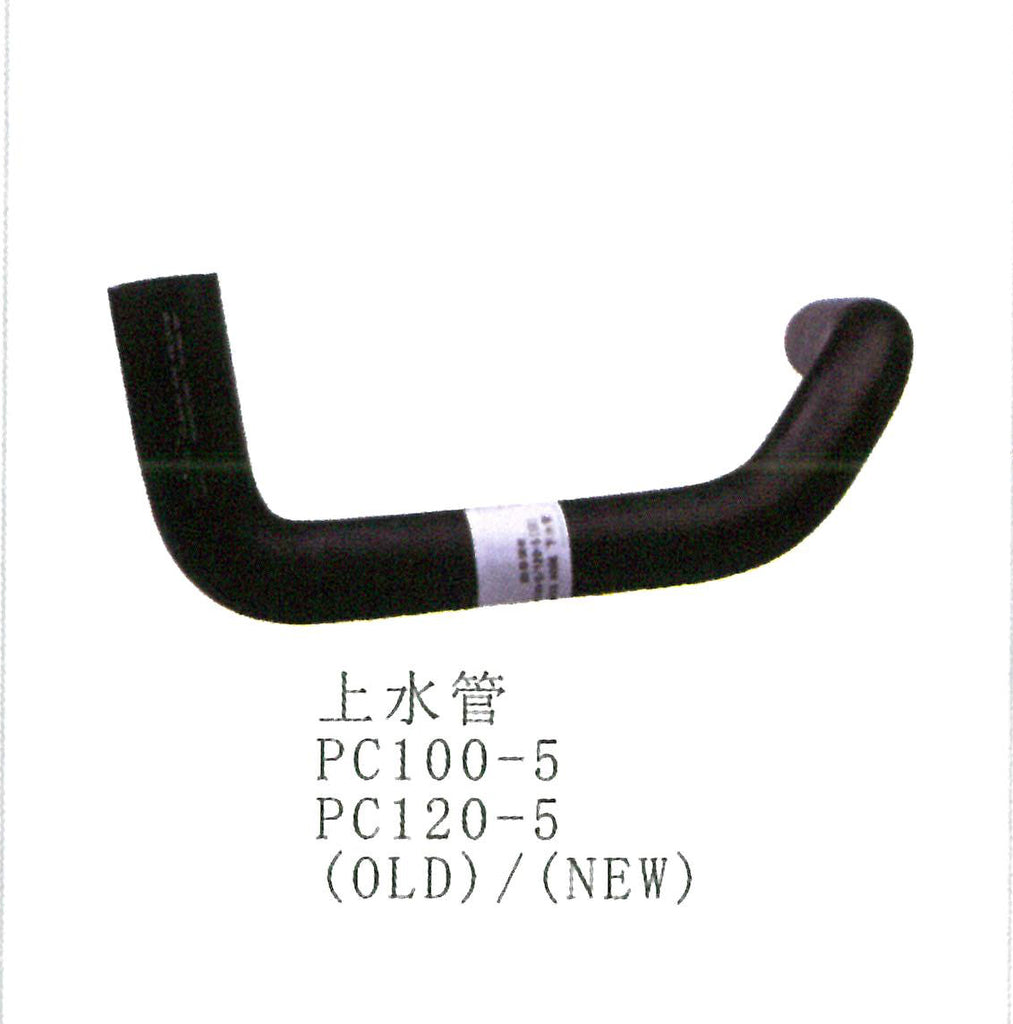

203-03-56180 2030356180 WATER Upper Pipe Radiator Hose TUBE Komatsu PC100-5 PC120-5 PC130-5 Excavator Parts
1. 203-03-56360 [1] RADIATOR ASS'Y Komatsu China
["SN: 28001-UP"]
2. 201-03-51310 [1] CAP Komatsu 0.08 kg.
["SN: 28001-UP"]
3. 205-03-62660 [1] PLUG Komatsu 0.01 kg.
["SN: 28001-UP"]
3. 07000-01007 [1] O-RING Komatsu 0.001 kg.
["SN: 28001-UP"] analogs:["0700011007", "YM24311000070"]
4. 203-03-56171 [1] SHROUD Komatsu China
["SN: 28001-UP"] analogs:["2030356170"]
5. 203-03-56320 [1] GUARD Komatsu China
["SN: 28001-UP"]
6. 01010-51025 [3] BOLT Komatsu 0.36 kg.
["SN: 28001-UP"] analogs:["0101081025", "0101651025", "801015109"]
7. 01643-31032 [3] WASHER Komatsu 0.054 kg.
["SN: 28001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
8. 01435-20814 [4] BOLT Komatsu 0.012 kg.
["SN: 28001-UP"] analogs:["0143500814"]
9. 203-03-56160 [1] SUPPORT Komatsu China
["SN: 28001-UP"]
9. 203-03-56640 [1] SUPPORT,(WITH CORROSION RESISTOR) Komatsu China
["SN: 28001-UP"]
10. 203-03-56150 [1] SUPPORT Komatsu China
["SN: 28001-UP"]
11. 01435-20816 [8] BOLT Komatsu 0.013 kg.
["SN: 28001-UP"] analogs:["0143500816"]
12. 203-03-56330 [2] CUSHION Komatsu 0.155 kg.
["SN: 28001-UP"]
13. 01580-11008 [2] NUT Komatsu 0.011 kg.
["SN: 28001-UP"]
15. 203-03-56340 [2] CUSHION Komatsu China
["SN: 28001-UP"]
16. 01580-10806 [2] NUT Komatsu 0.005 kg.
["SN: 28001-UP"] analogs:["801920104"]
17. 01643-30823 [2] WASHER Komatsu 0.004 kg.
["SN: 28001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"]
18. 203-03-56260 [1] PLATE Komatsu China
["SN: 28001-UP"]
19. 01010-51020 [2] BOLT Komatsu 0.161 kg.
["SN: 28001-UP"] analogs:["0101081020", "801014093", "801015108"]
21. 203-03-56270 [1] PLATE Komatsu China
["SN: 28001-UP"]
24. 203-03-56210 [1] SHEET Komatsu China
["SN: 28001-UP"] analogs:["2030351320"]
25. 203-03-56240 [2] SHEET Komatsu China
["SN: 28001-UP"] analogs:["2030351430"]
26. 203-03-56230 [2] SHEET Komatsu China
["SN: 28001-UP"] analogs:["2030351410"]
27. 203-03-41530 [2] SHEET Komatsu China
["SN: 28001-UP"]
28. 203-03-56180 [1] HOSE Komatsu China
["SN: 28001-UP"]
29. 203-978-5340 [1] HOSE Komatsu China
["SN: 32402-UP"]
29. 203-03-56190 [1] HOSE Komatsu China
["SN: 28001-32401"]
29A. 21K-03-11190 [1] CLIP Komatsu China
["SN: 32402-UP"]
30. 207-09-11110 [1] CLAMP Komatsu 0.054 kg.
["SN: 28001-UP"] analogs:["0728900045"]
31. 208-09-11110 [3] CLAMP Komatsu 0.058 kg.
["SN: 28001-UP"] analogs:["0728900055", "802660176"]
32. 203-03-56350 [1] HOSE Komatsu 0.4 kg.
["SN: 28001-UP"]
33. 07280-01010 [1] CLAMP Komatsu China
["SN: 28001-UP"]
34. 07043-70312 [2] PLUG Komatsu 0.016 kg.
["SN: 28001-UP"]
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
