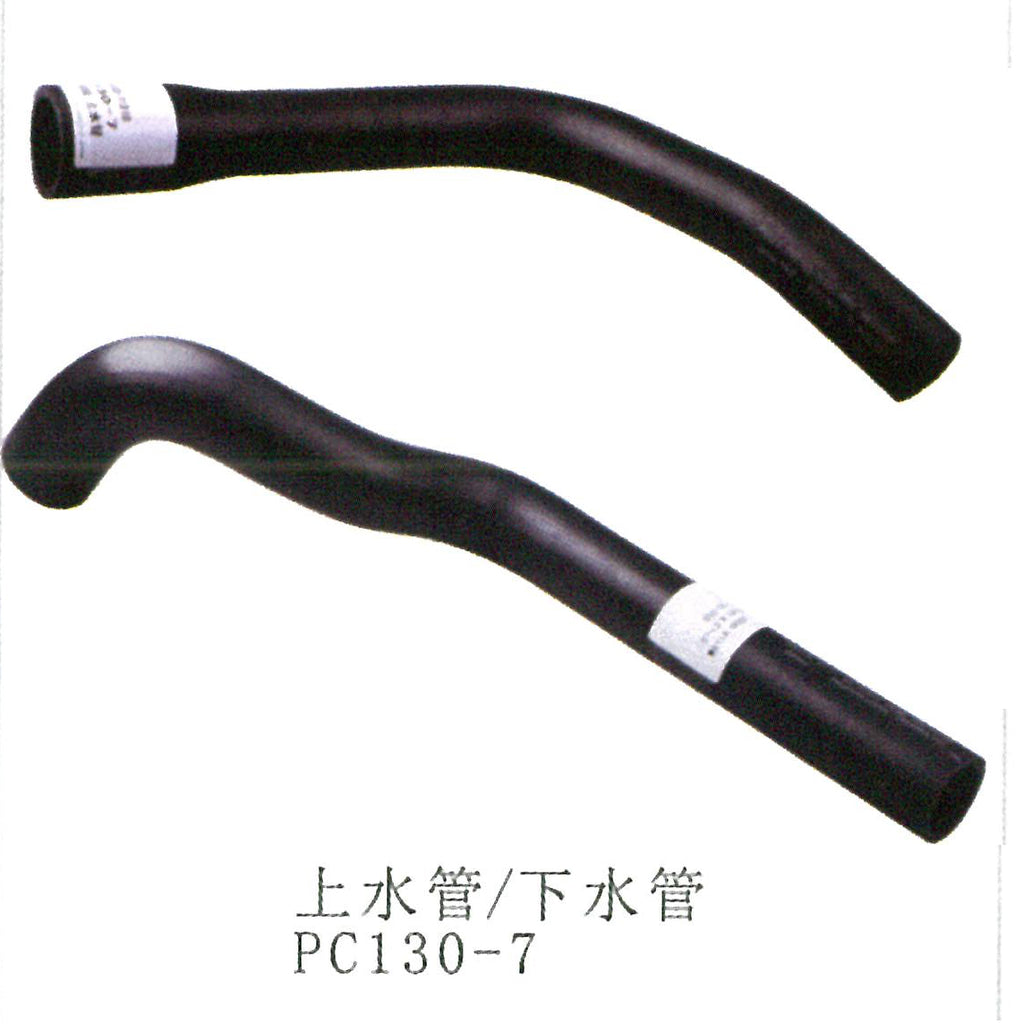

1. 203-01-71150 [1] HOSE Komatsu China
["SN: 70001-UP"]
2. 07299-00070 [2] CLAMP Komatsu 0.1 kg.
["SN: 70001-UP"]
3. 07299-00055 [2] CLAMP Komatsu 0.096 kg.
["SN: 70001-UP"]
4. 203-01-71160 [1] TUBE Komatsu 1.31 kg.
["SN: 70001-UP"]
5. 203-01-71311 [1] BRACKET Komatsu China
["SN: 70001-UP"]
6. 01010-81025 [2] BOLT Komatsu 0.36 kg.
["SN: 70001-UP"] analogs:["0101051025", "0101651025", "801015109"]
7. 01643-31032 [2] WASHER Komatsu 0.054 kg.
["SN: 70001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
8. 07283-35150 [1] CLIP Komatsu China
["SN: 70001-UP"]
10. 01597-01009 [2] NUT Komatsu 0.011 kg.
["SN: 70001-UP"]
11. 203-01-71321 [1] BRACKET Komatsu China
["SN: 70001-UP"]
17. 203-01-71170 [1] HOSE Komatsu China
["SN: 70001-UP"]
19. 203-01-71180 [1] HOSE Komatsu 1.13 kg.
["SN: 70001-UP"]
22. 208-62-38370 [1] CLIP Komatsu 0.08 kg.
["SN: 70001-UP"]
25. 07002-11423 [2] O-RING Komatsu China 0.001 kg.
["SN: 70001-UP"] analogs:["0700201423"]
26. 07040-11409 [2] PLUG Komatsu 0.033 kg.
["SN: 70001-UP"]
27. 6208-11-4810 [1] CONNECTOR Komatsu China
["SN: 70001-UP"]
28. 6208-11-4850 [1] GASKET Komatsu China
["SN: 70001-UP"]
29. 01435-00825 [3] BOLT Komatsu 0.016 kg.
["SN: 70001-UP"]
1. 203-03-71231 [1] TUBE Komatsu China
["SN: 70001-UP"]
2. 07000-13035 [1] O-RING Komatsu China 0.03 kg.
["SN: 70001-UP"] analogs:["0700003035"]
3. 01010-81035 [2] BOLT Komatsu 0.033 kg.
["SN: 70001-UP"] analogs:["801015556", "01010D1035", "0101051035"]
4. 01643-31032 [2] WASHER Komatsu 0.054 kg.
["SN: 70001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"]
5. 203-03-71261 [1] BRACKET Komatsu China
["SN: 70001-UP"]
6. 01010-81020 [2] BOLT Komatsu 0.161 kg.
["SN: 70001-UP"] analogs:["801014093", "0101051020", "801015108"]
8. 07283-33442 [1] CLIP Komatsu 0.094 kg.
["SN: 70001-UP"]
10. 01597-01009 [2] NUT Komatsu 0.011 kg.
["SN: 70001-UP"]
11. 203-03-71241 [1] TUBE Komatsu China
["SN: 70001-UP"]
15. 203-03-71251 [1] BRACKET Komatsu China
["SN: 70001-UP"]
19. 01010-81025 [2] BOLT Komatsu 0.36 kg.
["SN: 70001-UP"] analogs:["0101051025", "0101651025", "801015109"]
203-01-71330 [1] AFTER COOLER A. Komatsu China
["SN: 70001-UP"] analogs:["2030171110"] |$31.
21. [1] AFTER COOLER Komatsu China
["SN: 70001-UP"]
22. 203-01-71340 [1] SHEET Komatsu 0.02 kg.
["SN: 70001-UP"]
25. 208-979-7520 [1] CONDENSER ASS'Y Komatsu 2.5 kg.
["SN: 70001-UP"]
26. 01010-80616 [8] BOLT Komatsu 0.006 kg.
["SN: 70001-UP"] analogs:["801014044", "0101050616", "0101030616", "0101000616", "801015064"]
27. 01643-30623 [8] WASHER Komatsu 0.002 kg.
["SN: 70001-UP"] analogs:["0164370623"]
28. 203-03-71780 [1] COVER A. Komatsu China
["SN: 70001-UP"]
29. 203-03-71760 [1] SHEET Komatsu China
["SN: 70001-UP"]
32. 203-03-71270 [1] HOSE Komatsu China
["SN: 70001-UP"]
33. 206-03-43340 [1] CLIP Komatsu 0.01 kg.
["SN: 70001-UP"]
34. 205-03-62720 [1] PLUG Komatsu China
["SN: 70032-70055"]
35. 195-979-4830 [1] HOSE Komatsu 0.05 kg.
["SN: 70032-70055"]
36. 11Y-09-11160 [2] CLIP Komatsu 0.01 kg.
["SN: 70032-70055"]
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
