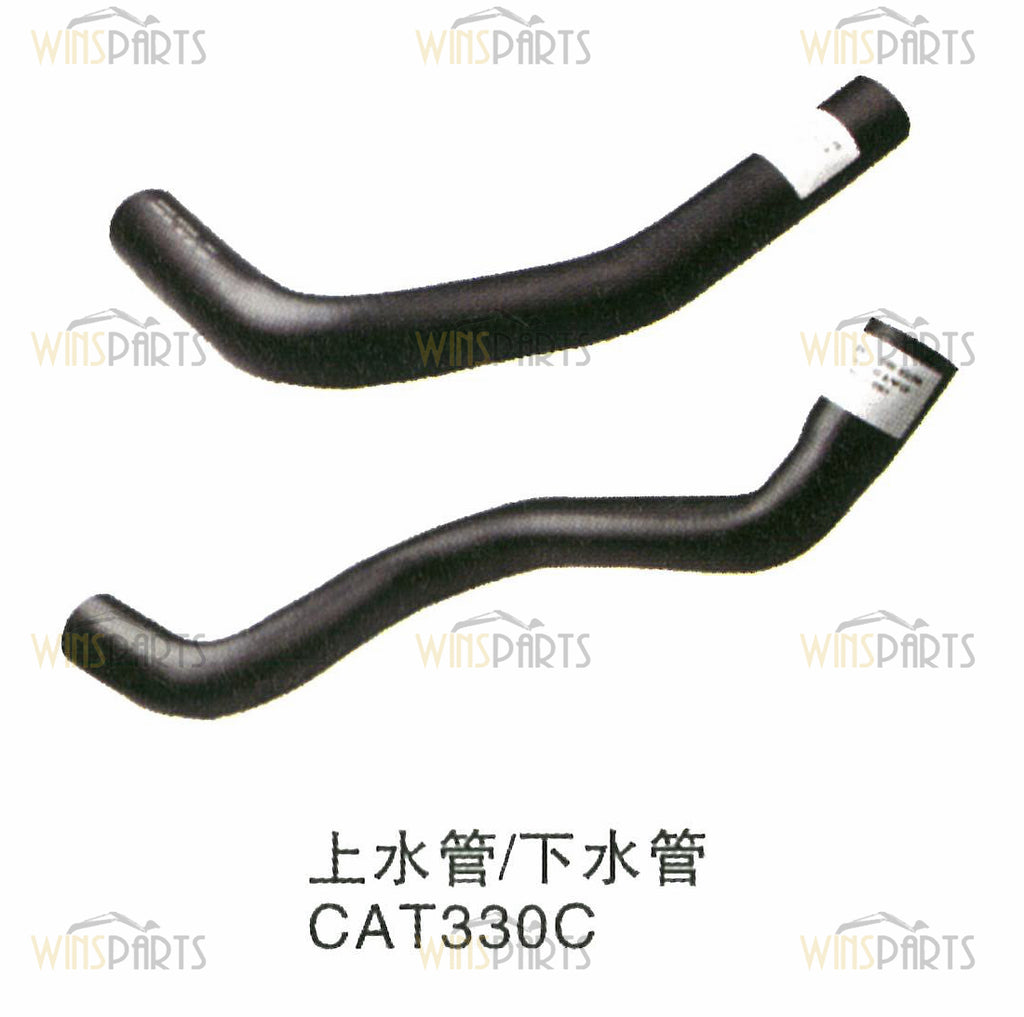

1932785 1932786 193-2785 193-2786 CAT C-9 Engine Water Upper Pipe TUBE Lower Radiator Hose Caterpillar 330C E330C E330 Excavator Parts
1. 3S-2093 [4] STRAP-CABLE
2. 096-4035 [1] CLIP
3. 178-6450 [4] SPACER (17X35X30-MM THK)
4. 193-2785 [1] HOSE-UPPER (RADIATOR)
5. 193-2786 [1] HOSE-LOWER (RADIATOR)
6. 193-2827 [1] BRACE
7. 193-2847 [1] GUARD AS
8. 193-2848 [1] GUARD AS
9. 245-9206 [1] TANK AS-EXPANSION (INCLUDES COOLANT LEVEL SWITCH)
9A. 171-3370 [1] CAP AS (COOLANT OVERFLOW)(TANK)
9B. 204-0920 [1] CAP AS (COOLANT FILL)(TANK)
10. 204-0908 [1] BRACE
11. 204-0909 [1] BAND
12. 210-7998 Y [1] RADIATOR GP
13. 3P-9847 [1] CLIP
14. 5P-1076 [2] WASHER-HARD (13.5X30X4-MM THK)
15. 7X-2554 M [4] BOLT (M16X2X70-MM)
16. 7X-7729 [10] WASHER (11X25X3-MM THK)
17. 8T-4121 [1] WASHER-HARD (11X21X2.5-MM THK)
18. 8T-4137 M [11] BOLT (M10X1.5X20-MM)
19. 8T-4192 M [4] BOLT (M12X1.75X25-MM)
20. 8T-4223 [4] WASHER-HARD (13.5X25.5X3-MM THK)
21. 8T-4244 M [2] NUT (M12X1.75-THD)
22. 8T-4956 M [2] BOLT (M12X1.75X35-MM)
23. 8T-4984 [1] CLAMP-HOSE
24. 8T-6703 [3] CLAMP-HOSE
25. 7Y-1976 E HOSE-WATER (56-CM)
26. 5P-9909 D SEAL (0.7-M)
D ORDER BY THE METER
E ORDER BY THE CENTIMETER
M METRIC PART
Y SEPARATE ILLUSTRATION
. 1P-5411 [3] SLEEVE
2. 1P-5412 [6] BUSHING-TERMINAL
3. 5D-8159 [5] PIN AS
4. 8T-0376 [1] VALVE (DRAIN)(RADIATOR)
5. 096-4035 [2] CLIP
6. 126-5027 [1] CAP AS-RADIATOR
7. 211-2021 [1] CORE AS-RADIATOR
8. 211-2022 [1] CORE AS-AFTERCOOLER
9. 216-3660 [1] SCREEN AS
10. 216-3661 [1] SCREEN AS
11. 236-6110 [11] FRAME AS
12. 236-6111 [1] SHROUD AS
13. 236-6112 [2] SEAL
14. 7X-0618 [3] WASHER-HARD (13.5X40X5-MM THK)
15. 8T-4189 M [16] BOLT (M8X1.25X20-MM)
16. 8T-4224 [16] WASHER-HARD (8.8X16X2-MM THK)
17. 8T-4648 M [2] BOLT (M12X1.75X70-MM)
18. 8T-5041 M [1] BOLT (M12X1.75X120-MM)
19. 8C-3681 E HOSE (10CM)
19A. 8C-3681 E HOSE (200CM)
1. 236-4372 [1] FRAME
2. 236-4373 [1] SHROUD
3. 236-4375 [1] SCREEN
4. 236-4376 [1] SCREEN
5. 236-4379 [1] RADIATOR GP (WATER)
6. 236-4380 [1] RADIATOR AS (A.C.)
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
