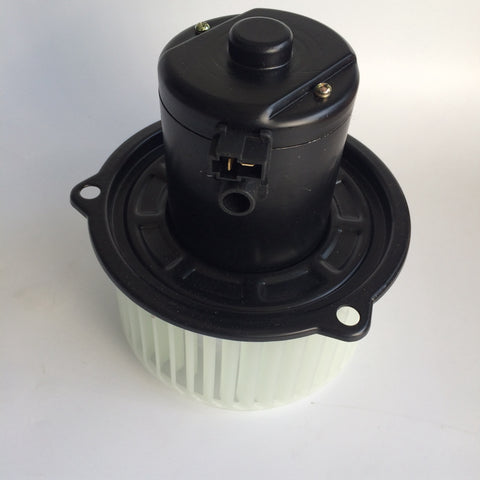

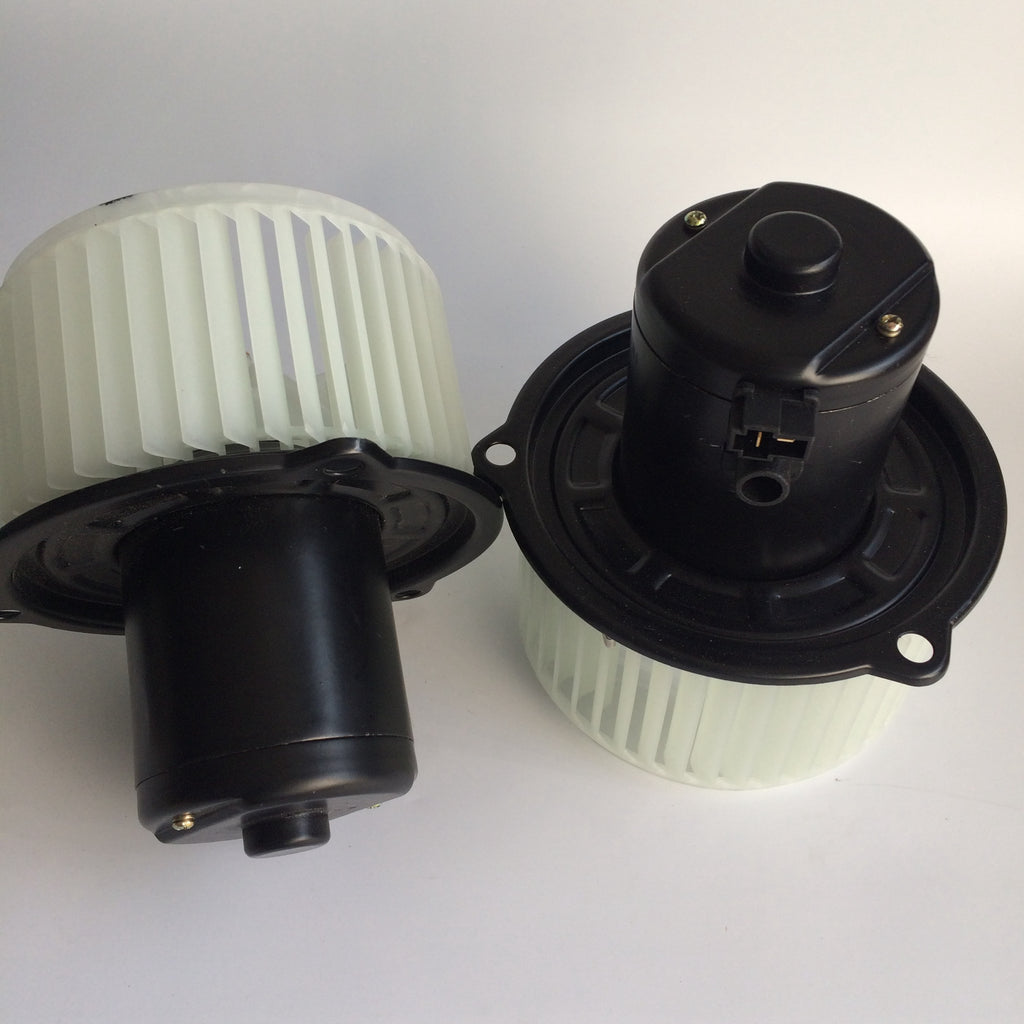

ND116340-3860 ND292500-0631 A/C Air Conditioner BLOWER MOTOR ASS'Y FAN KOMATSU PC220LC-7 PC200LC-7 PC210LC-7 PC270-7 PC230LC-7 PC1250LC-8 Excavator Spare Parts
ND116340-3860 ND292500-0631 A/C Air Conditioner BLOWER MOTOR ASS'Y FAN KOMATSU PC220LC-7 PC200LC-7 PC210LC-7 PC270-7 PC230LC-7 PC1250LC-8 Excavator Spare Parts
20Y-979-6821 [1] Air Conditioner Assembly Komatsu 13.5 kg.
["SN: 35201-UP"] |$0.
ND117200-2130 [1] Blower Assembly Komatsu China
["SN: 35201-UP"] analogs:["ND1172002131"] |$1.
1. ND116241-3220 [1] Case, Blower Komatsu China
["SN: 35201-UP"]
2. ND116241-3230 [1] Case, Blower Komatsu China
["SN: 35201-UP"]
2. ND116340-3860 [1] Motor Assembly, Fan Komatsu 3.14 kg.
["SN: 35201-UP"]
3. ND116221-3010 [1] Fan Komatsu 41.101 kg.
["SN: 35201-UP"]
4. ND017231-2370 [1] Clamp Komatsu 0.005 kg.
["SN: 35201-UP"]
5. ND146535-1320 [1] Bracket Komatsu China
["SN: 35201-UP"]
6. 205-979-7260 [1] Pipe Komatsu China
["SN: 35201-UP"]
7. ND949047-2370 [3] Bolt Komatsu 0.006 kg.
["SN: 35201-UP"]
8. ND949001-1730 [5] Screw, Tapping Komatsu China
["SN: 35201-UP"]
9. ND056700-8170 [1] Relay Assembly Komatsu 0.06 kg.
["SN: 35201-UP"] analogs:["1989119240"]
10. ND146622-6880 [1] Packing Komatsu 0.032 kg.
["SN: 35201-UP"]
11. ND146678-4901 [1] Packing Komatsu China
["SN: 35201-UP"]
12. ND91570-06141 [2] Bolt Komatsu China
["SN: 35201-UP"]
13. ND146625-4450 [1] Bushing Komatsu China
["SN: 35201-UP"]
14. 421-07-31270 [1] Relay Komatsu 0.02 kg.
["SN: 35201-UP"]
20Y-979-6111 [1] Air Conditioner Assembly Komatsu 38 kg.
["SN: 30158-UP"] |$0.
ND117200-0843 [1] Blower Assembly Komatsu 7 kg.
["SN: 30158-UP"] |$1.
1. ND116241-3220 [1] Case,Blower Komatsu China
["SN: 30158-UP"]
2. ND116241-3230 [1] Case,Blower Komatsu China
["SN: 30158-UP"]
3. ND017321-3202 [1] Case, Air Damper Komatsu China
["SN: 30158-UP"]
4. ND017321-3212 [1] Case, Air Damper Komatsu China
["SN: 30158-UP"]
5. ND116340-3860 [1] Motor Assembly, Fan Komatsu 3.14 kg.
["SN: 30158-UP"]
6. ND063700-7210 [1] Servo Motor Assembly Komatsu 0.16 kg.
["SN: 30158-UP"]
7. ND116660-4680 [1] Door Assembly Komatsu China
["SN: 30158-UP"]
8. ND116682-0980 [1] Lever Komatsu China
["SN: 30158-UP"]
9. ND116682-0970 [1] Lever Komatsu China
["SN: 30158-UP"]
10. ND146535-1320 [1] Bracket Komatsu China
["SN: 30158-UP"]
11. 205-979-7260 [1] Pipe Komatsu China
["SN: 30158-UP"]
12. ND116662-7120 [1] Shaft Komatsu China
["SN: 30158-UP"]
13. ND949047-2370 [3] Bolt Komatsu 0.006 kg.
["SN: 30158-UP"]
14. ND949001-1730 [17] Screw, Tapping Komatsu China
["SN: 30158-UP"]
15. ND91370-03081 [1] Screw Komatsu China
["SN: 30158-UP"]
16. 17M-911-3290 [1] Clamp Komatsu 0.01 kg.
["SN: 30158-UP"]
17. ND949057-0190 [1] Nut, Plate Komatsu China
["SN: 30158-UP"]
18. ND056700-8170 [1] Relay Assembly Komatsu 0.06 kg.
["SN: 30158-UP"] analogs:["1989119240"]
19. ND146622-6880 [1] Packing Komatsu 0.032 kg.
["SN: 30158-UP"]
20. ND146678-4901 [1] Packing Komatsu China
["SN: 30158-UP"]
21. ND146678-5060 [1] Packing Komatsu China
["SN: 30158-UP"]
22. ND146647-0790 [1] Packing Komatsu China
["SN: 30158-UP"]
23. ND91570-06141 [2] Bolt Komatsu China
["SN: 30158-UP"]
24. ND146625-4450 [1] Bushing Komatsu China
["SN: 30158-UP"]
25. ND056800-3130 [1] Relay Assembly Komatsu 0.02 kg.
["SN: 30158-UP"]
26. ND146530-9530 [1] Bracket Assembly Komatsu China
["SN: 30158-UP"]
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
