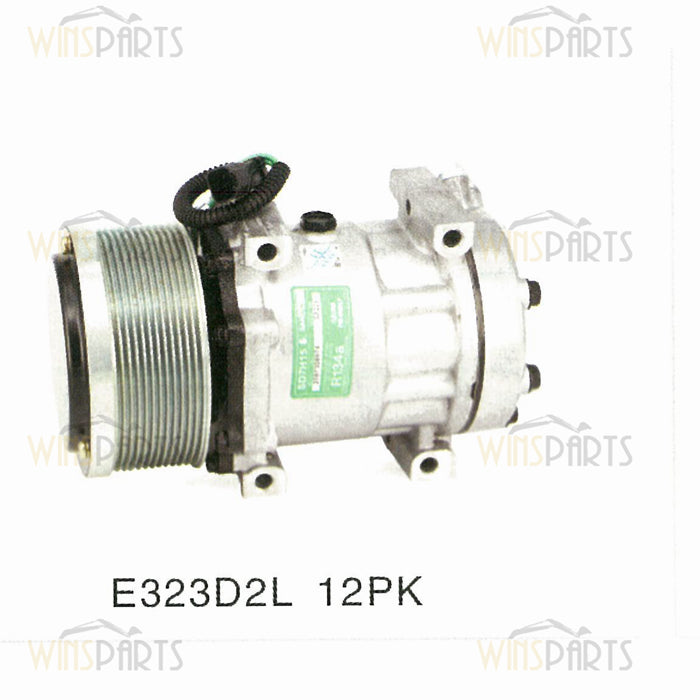

532-7321 5327321 COMPRESSOR AS Air Conditioner A/C Caterpillar CAT E323 336 330 323D2 E320 Excavator Parts
502-9408: COMPRESSOR & MTG GP-REFRIG
COMPRESSOR & MTG GP-REFRIG
502-9408 COMPRESSOR & MTG GP-REFRIG
S/N YBL1-UP
PART OF 490-4803 ENGINE AR, 559-2577 ENGINE AR-COMPLETE
5029408 COMPRESSOR & MTG GP-REFRIG Parts scheme
5029408 COMPRESSOR & MTG GP-REFRIG
Caterpillar
5019448 COMPRESSOR
Caterpillar
4612805 Caterpillar
4612805 COMPRESSOR GP-REFRIGERANT
Caterpillar
5077063 COMPRESSOR GP-REFRIGERANT
Caterpillar
5073868 Caterpillar
5073868 COMPRESSOR GP-REFRIGERANT
Caterpillar
5044008 COMPRESSOR GP-REFRIGERANT
Caterpillar
4641273 COMPRESSOR GP-REFRIGERANT
Caterpillar
4529031 COMPRESSOR AS
Caterpillar
Parts for your 323 EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 532-7321 [1] COMPRESSOR AS
9W-0852 [2] PIN-CONNECTOR (14-GA TO 16-GA)
243-4505 [1] RECEPTACLE AS-CONNECTOR (2-PIN)
2. 364-1614 M [4] BOLT-FLANGE HEAD (M8X1.25X95-MM)
M METRIC PART
#M00852790655
488-6610: CONDENSER & MTG GP-REFRIGERANT
CONDENSER & MTG GP-REFRIGERANT
488-6610 CONDENSER & MTG GP-REFRIGERANT
S/N YBL1-10000
PART OF 488-6606 LINES GP-AIR CONDITIONER
4886610 CONDENSER & MTG GP-REFRIGERANT Parts scheme
Parts for your 323 EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 488-6612 Y [1] CONDENSER GP-REFRIGERANT
2. 488-6613 [1] BRACKET AS
6V-9632 M [2] NUT-WELD (M6X1-THD)
8T-3490 M [1] NUT-WELD (M10X1.5-THD)
8T-3612 M [2] NUT-WELD (M8X1.25-THD)
3. 500-0782 [1] BRACKET
4. 5C-9553 M [4] BOLT (M6X1X16-MM)
5. 8T-4121 [4] WASHER-HARD (11X21X2.5-MM THK)
6. 8T-4137 M [4] BOLT (M10X1.5X20-MM)
7. 8T-4971 M [2] BOLT (M6X1X30-MM)
8. 9X-2038 [2] WASHER (7X19X2-MM THK)
9. 9X-8256 [4] WASHER (6.6X12X2-MM THK)
M METRIC PART
Y SEPARATE ILLUSTRATION
#M00852790656
532-7388: CONDENSER & MTG GP-REFRIGERANT
CONDENSER & MTG GP-REFRIGERANT
532-7388 CONDENSER & MTG GP-REFRIGERANT
S/N YBL10001-UP
PART OF 488-6609 LINES GP-AIR CONDITIONER
5327388 CONDENSER & MTG GP-REFRIGERANT Parts scheme
Parts for your 323 EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 5C-9553 M [4] BOLT (M6X1X16-MM)
2. 8T-4971 M [2] BOLT (M6X1X30-MM)
3. 9X-2038 [2] WASHER (7X19X2-MM THK)
4. 488-6612 Y [1] CONDENSER GP-REFRIGERANT
5. 532-7389 [1] BRACKET AS
8T-3490 M [1] NUT-WELD (M10X1.5-THD)
6. 532-7390 [1] BRACKET AS
7. 8T-4121 [4] WASHER-HARD (11X21X2.5-MM THK)
8. 8T-4137 M [4] BOLT (M10X1.5X20-MM)
9. 9X-8256 [4] WASHER (6.6X12X2-MM THK)
M METRIC PART
Y SEPARATE ILLUSTRATION
#M00852790657
488-6612: CONDENSER GP-REFRIGERANT
CONDENSER GP-REFRIGERANT
488-6612 CONDENSER GP-REFRIGERANT
S/N YBL1-UP
PART OF 488-6610, 532-7388 CONDENSER & MTG GP-REFRIGERANT
4886612 CONDENSER GP-REFRIGERANT Parts scheme
Parts for your 323 EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 245-7750 [2] BUSHING-RUBBER
2. 500-0784 [2] BRACKET
3. 1H-3338 [4] LOCKWASHER
4. 5C-9553 M [4] BOLT (M6X1X16-MM)
5. 9X-8256 [4] WASHER (6.6X12X2-MM THK)
M METRIC PART
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
