EXCAVATOR 324D 324D FM 324D FM LL 324D L 324D LN 325D 325D FM 325D FM LL 325D L 325D MH 326D L 328D LCR 329D 329D L 329D LN 330D 330D FM 330D L 330D LN 330D MH 336D 336D L 336D LN 336D2 340D L 340D2 L 345C 345C L 345C MH 345D 345D L 345D L VG 349D 349D L 365C 365C L 365C L MH 374D L 385C 385C FS 385C L 385C L MH 390D 390D L M325D L MH M325D MH
FRONT SHOVEL 385C
INDUSTRIAL ENGINE C18 C7 C9 C9.3
MOBILE HYD POWER UNIT 324D LN 325D 325D L 329D L 330D 330D L 336D L 345C L 349D L 365C L 385C 385C L
PETROLEUM ENGINE C15 C18 C7 C9
PETROLEUM PACKAGE CX31-C9I CX35-P800
PETROLEUM TRANSMISSION TH31-E61
SHOVEL LOGGER 345C
WHEELED EXCAVATOR W345C MH Caterpillar Excavator Air Conditioner Compressor A/C Condenser Evaporator Blower Air conditioning expansion valve Air Conditioning Ducts Control panel Servo motor

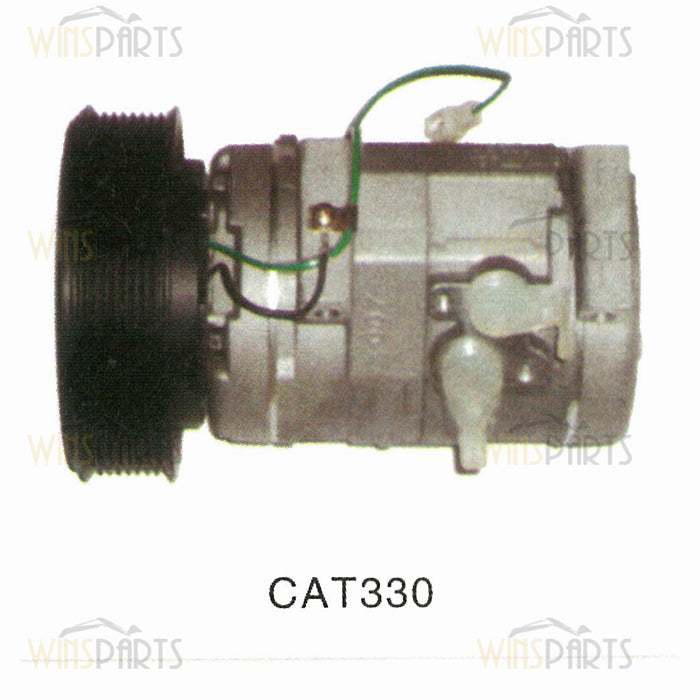

305-0325 305-0324 259-7243 Compressor Air Conditioner AC CATERPILLAR CAT E330 324D 325D 326D 330D 345D Excavator Parts
276-3814: COMPRESSOR GP-REFRIGERANT
COMPRESSOR GP-REFRIGERANT
276-3814 COMPRESSOR GP-REFRIGERANT
S/N C5K1-UP; LEM1-UP; THX27602-UP
PART OF 224-9843, 267-5124 ENGINE AR, 349-3571 ENGINE AR-COMPLETE
ALSO AN ATTACHMENT
2763814 COMPRESSOR GP-REFRIGERANT Parts scheme
Parts for your 330D MH EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 258-9892 M [2] BOLT (M8X1.25X80-MM)
2. 305-0325 C [1] COMPRESSOR GP-REFRIGERANT
3. 132-5789 [2] CLIP (LADDER)
4. 8T-3647 M [2] BOLT (M8X1.25X80-MM)
5. 8T-4224 [4] WASHER-HARD (8.8X16X2-MM THK)
C CHANGE FROM PREVIOUS TYPE
M METRIC PART
#SEBP44890812
245-7940: CONDENSER & MTG GP-REFRIGERANT
CONDENSER & MTG GP-REFRIGERANT
245-7940 CONDENSER & MTG GP-REFRIGERANT
S/N C5K1-228; LEM1-261
PART OF 239-6405, 279-7825 INSTALLATION AR-ENGINE
2457940 CONDENSER & MTG GP-REFRIGERANT Parts scheme
Parts for your 330D MH EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 245-7942 [1] BRACKET AS
2. 245-7943 [1] BRACKET AS
3. 273-5315 Y [1] CONDENSER GP-REFRIGERANT
4. 8T-4121 [8] WASHER-HARD (11X21X2.5-MM THK)
5. 8T-4137 M [8] BOLT (M10X1.5X20-MM)
M METRIC PART
Y SEPARATE ILLUSTRATION
#SEBP44890813
245-7940: CONDENSER & MTG GP-REFRIGERANT
CONDENSER & MTG GP-REFRIGERANT
245-7940 CONDENSER & MTG GP-REFRIGERANT
S/N C5K229-UP; LEM262-UP
PART OF 340-1340 INSTALLATION AR-ENGINE
2457940 CONDENSER & MTG GP-REFRIGERANT Parts scheme
Parts for your 330D MH EXCAVATOR:
CATERPILLAR SIS
Pos. Part No Qty Parts name Comments
1. 245-7942 [1] BRACKET AS
2. 245-7943 [1] BRACKET AS
3. 334-6569 CY [1] CONDENSER GP-REFRIGERANT
4. 8T-4121 [8] WASHER-HARD (11X21X2.5-MM THK)
5. 8T-4137 M [8] BOLT (M10X1.5X20-MM)
C CHANGE FROM PREVIOUS TYPE
M METRIC PART
Y SEPARATE ILLUSTRATION
The price is for reference only, please contact us by email and the actual quotation shall prevail.
| PACKAGE: | Original packing or Neutral packing with wooden box or carton. |
| SHIPPING: | It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and etc). |
| PAYMENT: | T/T,Western Union,Paypal,Alipay,Cash. |
| LADING: | When the goods shipping , i will email u for tracking number for goods. i can offer bill of lading to u . |
